3.2.13 MR (The Voice Module needs to be used in conjunction with FAB)

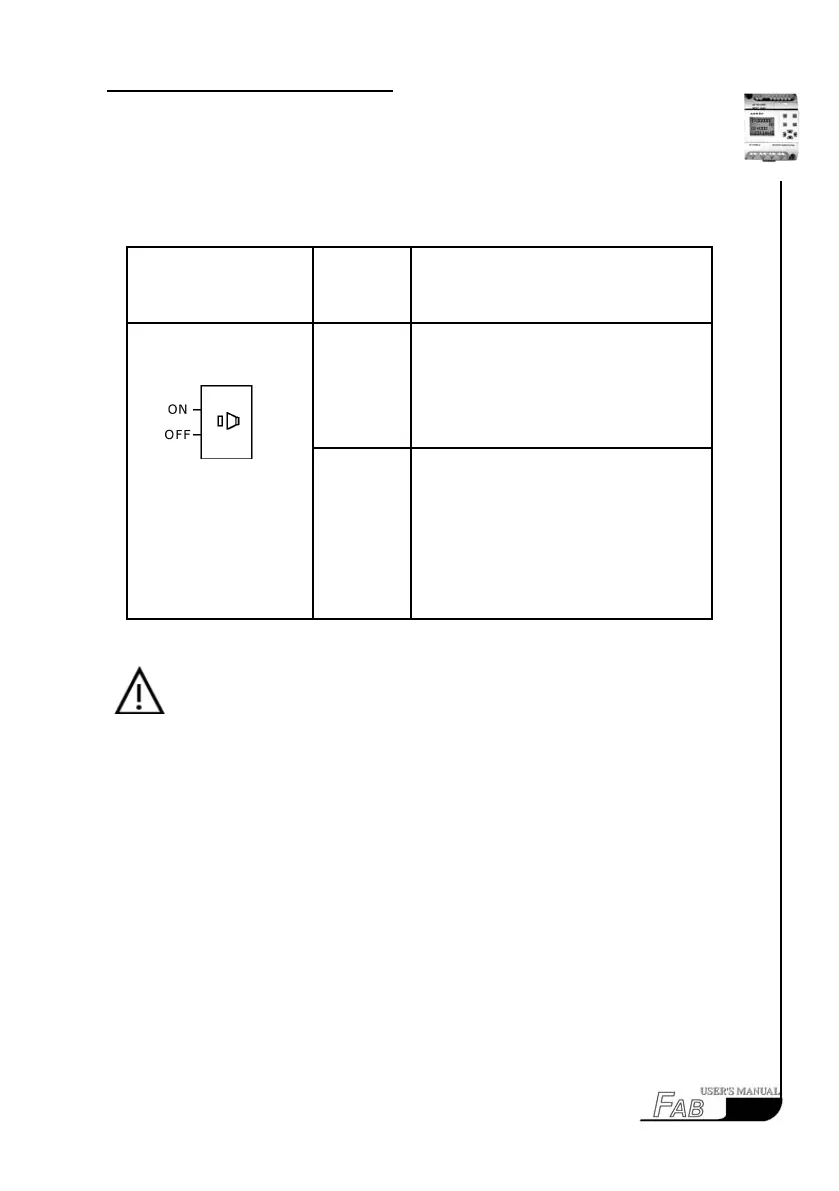

Figure of FAB Pin Description
ON
OFF
When OFF is 1, the record is completed,
and turns off the switch for recording
voice sections. The following inputs are
at option : I1 ~ IC, Q1 ~ Q8, HI, LO,
M00~M126, X.
Notes:
When making a recording, the recording should be performed in an order
of 0 - 98 and the process should not be interrupted , that is to say, it is not
allowed to directly record the third section after the rst section is record-
ed. (If the same block is used, the sections can be accumulated automati-
cally as long as the conditions change) e.g. I1 - ON, I2 - OFF and Q=01,
the first section is input at the beginning when I1 is ON and I2 is OFF.
When I1 is OFF and I2 is ON, the rst section is turned off. when I1 is on
and I2 is off again ,the second section is impact.
39
When ON is 1, record for the voice sec-
tions starts. The following inputs are
at option :I1 - IC, Q1 - Q8, HI, LO,
M00~M126, X.
