ARRI 16SR 3 - Camera Left & Front Overview ARRI 16 SR 3

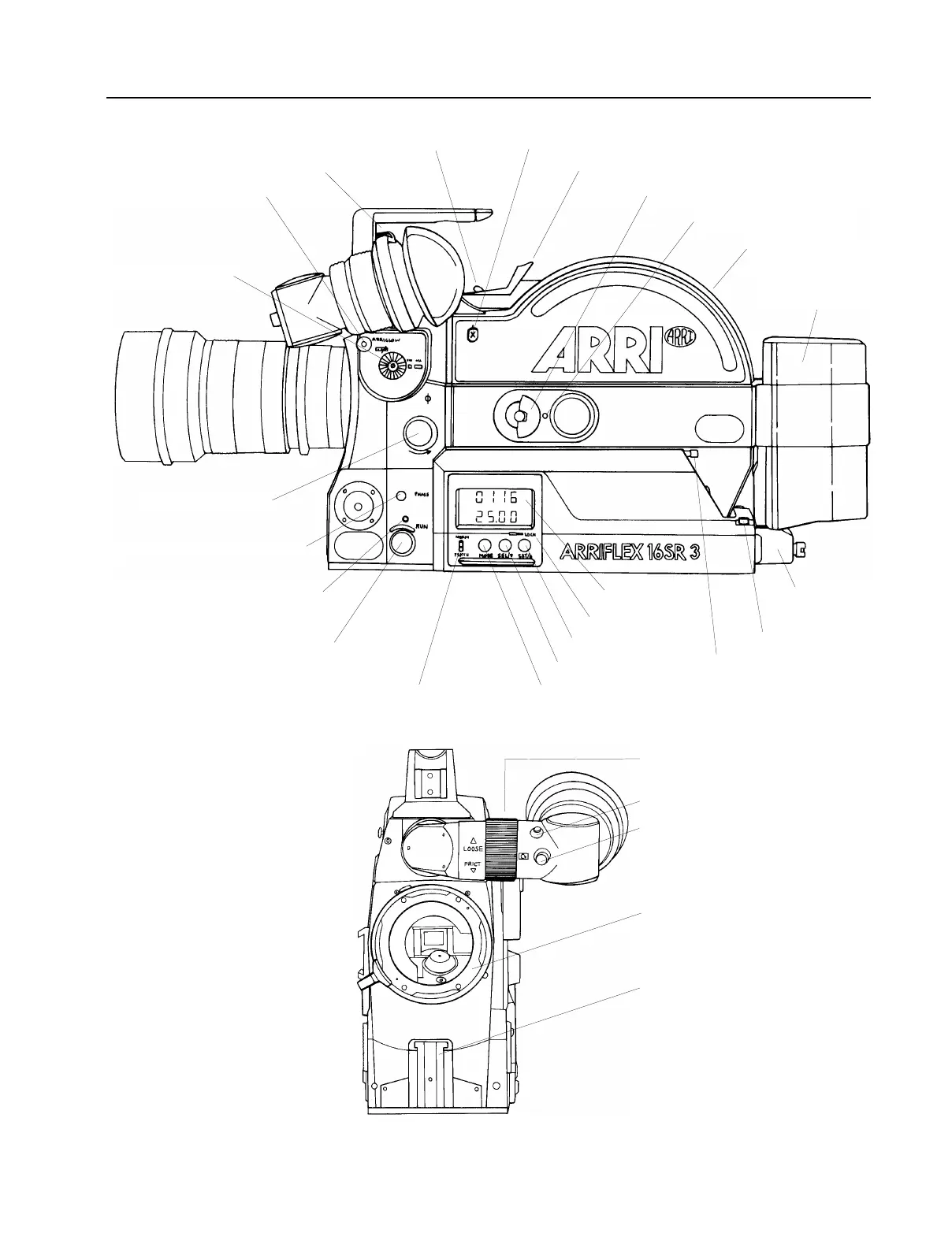

Camera Left & Front
Arriflex 16SR 3 Quick Guide, 4/99, Page 3
Arriglow/meter switch
Eyecup iris lever
Film speed selector
Magazine safety latch
Timecode sensitivity selector
Magazine release latch
On-board
battery adapter
Running light
Mirror shutter adjustment tool
LCD display
SET button
SEL button
MODE button
Friction adjustment
Image rotation release
Image rotation knob
PL mount
Accessory shoe
Locking slider
RUN button
NORM - PS/CCU switch
Run indicator light
Electronic inching/PHASE button
Manual inching knob
Magazine door lock
Door lock safety button
400’ (120m) magazine,
take-up side
On-board battery
