ARRI ALEXA Plus 4:3 User Manual

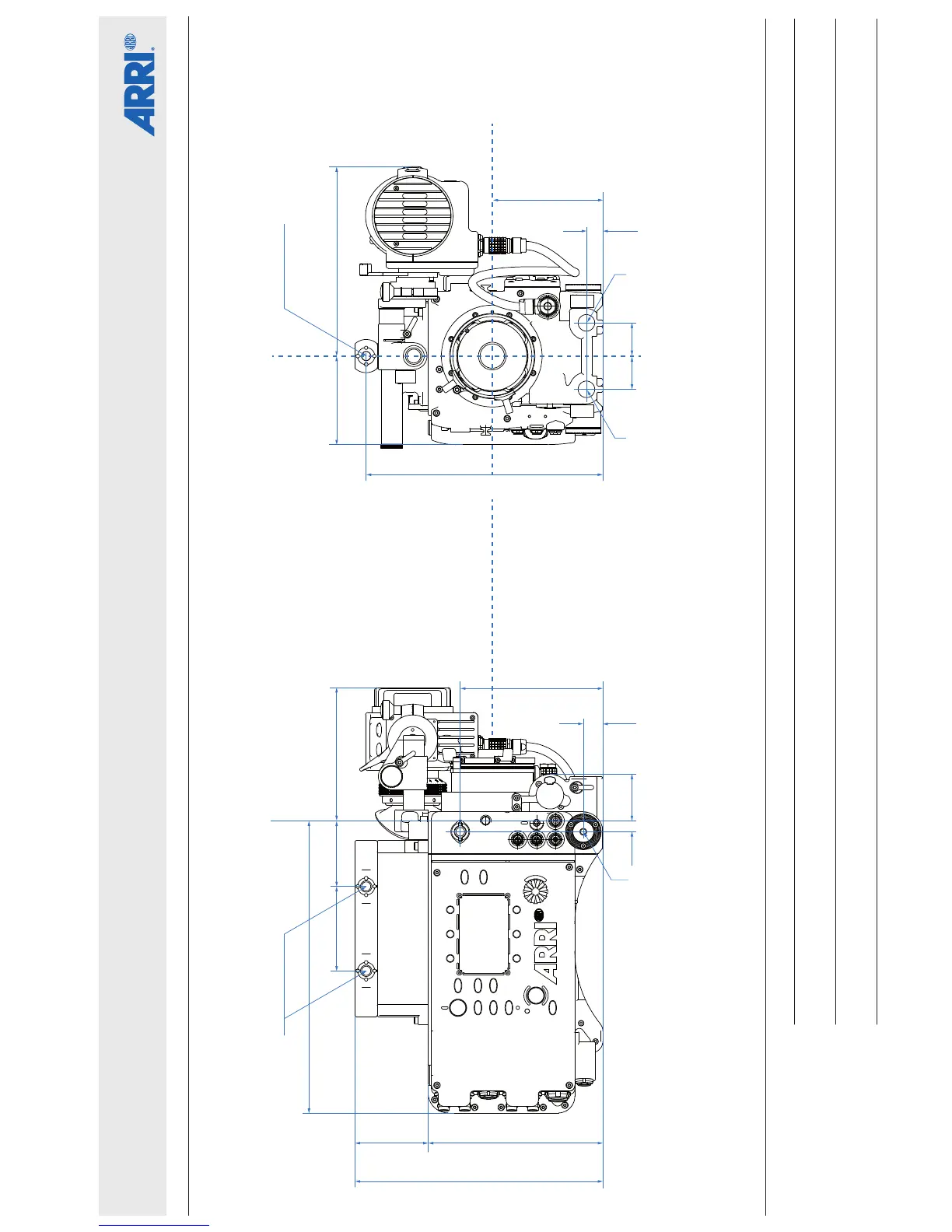

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA
ALEXA Length Width Height Weight
Body, Camera Center Handle (CCH-1) 321 mm - 12.64” 153 mm - 6.02” 224 mm - 8.82” 6.5 kg - 14.33 lb
Body, Camera Center Handle (CCH-1), Electronic Viewfinder EVF-1, Viewfinder Mounting Bracket (VMB-1)
384 mm - 15.12” 251 mm - 9.88”
||
-
||
7.5 kg - 16.53 lb
Body, Camera Center Handle (CCH-1), Electronic Viewfinder EVF-1 extended, Viewfinder Mounting Bracket (VMB-1)
406 mm - 15.98” 319 mm - 12.56”
||
-
||
7.5 kg - 16.53 lb
Camera Right Image Plane
Camera Front Optical Center
M6 (3.5mm deep)
Optical Center
ø 15 mm ø 15 mm
99.8 mm
3.93”
128.8 mm
5.07”
17.6 mm
0.7”
14.8 mm
0.58”
224 mm
8.82”
66.2 mm
2,61”
157.8 mm
6.21”
80 mm
3.15”
171 mm
6.73”
120 mm
4.72”
59.4 mm
2.34”
10 mm
0.39”
42 mm
1.65”
30 mm
1.18”
30 mm
1.18”
76.2 mm
3”
264 mm
10.39”
213.8 mm
8.42”
UNC 3/8“–16 (10 mm deep) UNC 3/8“–16 (10 mm deep)

ARRI ALEXA Plus 4:3 Specifications

General

Brand	ARRI
Model	ALEXA Plus 4:3
Category	Camcorder
Language	English
