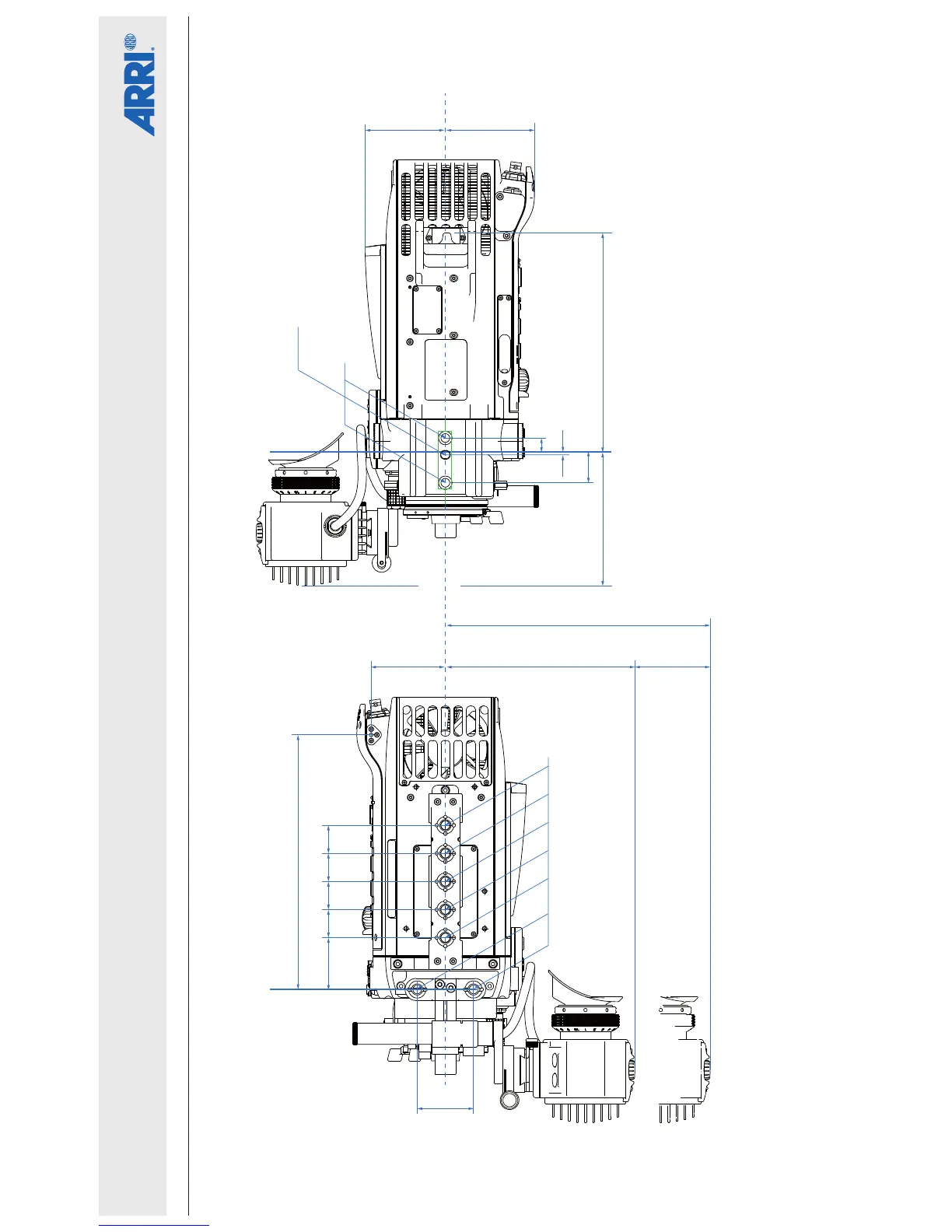

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA
Camera Top Image Plane
Camera Bottom Image Plane
Optical Center
230 mm
9.05”
120 mm
4.72”
198 mm
7.79”
27.5 mm
1.08”
2.5 mm
0.1”
12.5 mm
0.49”
67 mm
2.64”
50.8 mm
2”
171 mm
6.73”
73 mm
2.87”
80 mm
3.15”
68 mm
2.68”
239 mm max.
9.41” max.
46.7 mm
1.84”
25.4 mm
1”
25.4 mm
1”
25.4 mm
1”
25.4 mm
1”
UNC 3/8“–16 (10 mm deep)
oval hole 7 mm (+0.022) wide and 8 mm long (4.5 mm deep)
UNC 3/8“–16 (10 mm deep)
