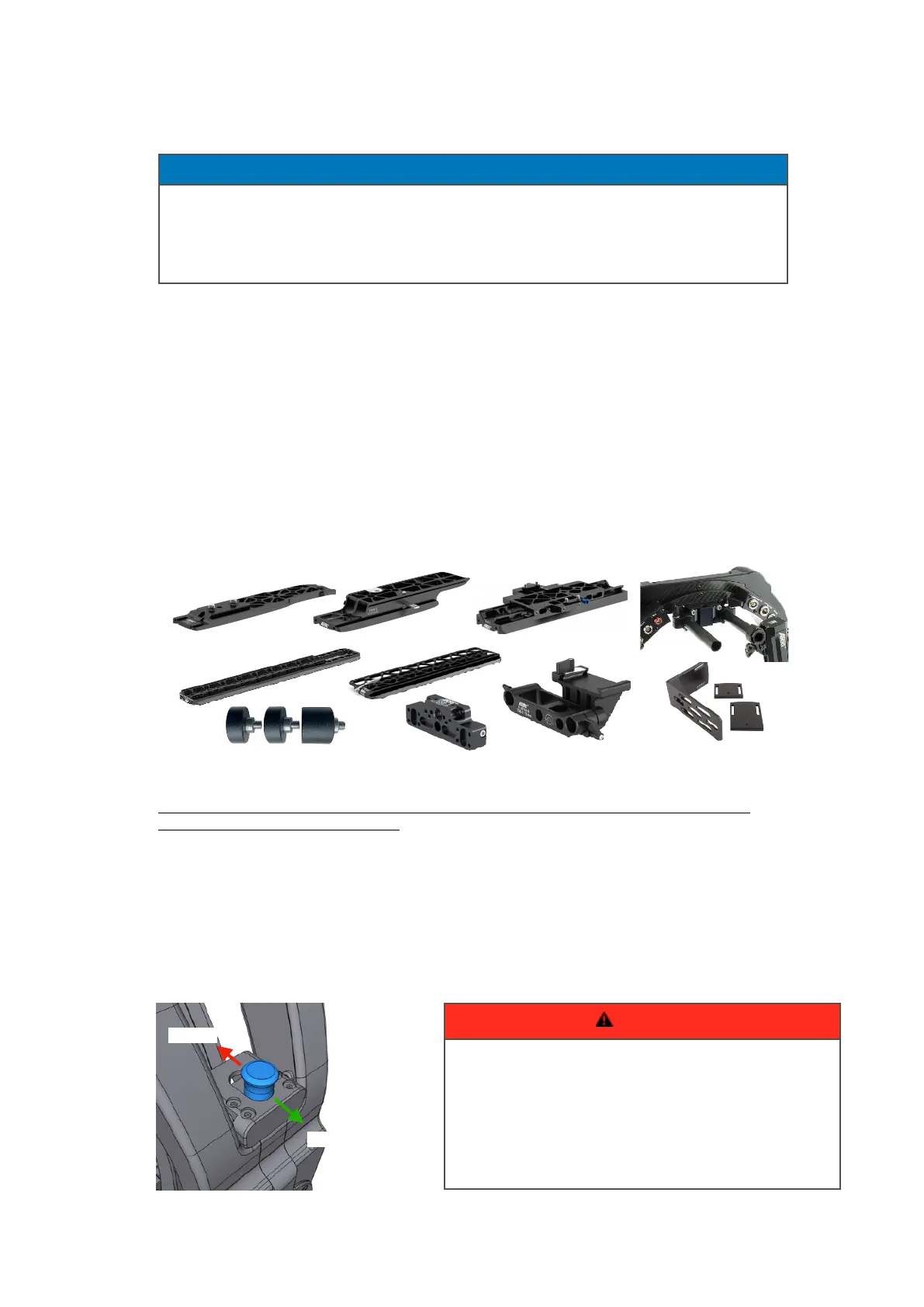

5 Camera Preparation / Balancing
Step 3
5.1
The right Camera Dovetail Plates and accessories
We highly recommend to use the so called Stabilizer Adapter Mount / SAM plates.
The SAM plates ensure secure and vibration-free attachment of the camera to the
SRH-3 & SRH-360. The SAM plates allow the use of other accessories, such as the
SSB-1 bracket and the counterweights.
By mounting the Sam plates on longer CSS dovetail plates, longer camera settings
can be used with the SRH-3 & SRH-360.
To secure the camera from the top, the Top support bracket is highly recommended.
LINK
https://www.arri.com/en/camera-systems/camera-stabilizer-systems/stabilized-remote-
heads/dovetail-plates-and-brackets
Step 4
5.2
Tilt Lock
The entire balancing procedure of the stabilized remote head is based on symmetry
and neutral balance.
Only a precisely executed camera preparation will enable you to get the best
performance out of the SRH-3 & SRH-360 stabilized remote head.
While camera setup the Tilt Lock needs to be
engaged! (Locked)
Before powering up the remote head, the Tilt Lock
must be disengaged!
An engaged Tilt Lock may cause damage by
overheating the tilt motors.
