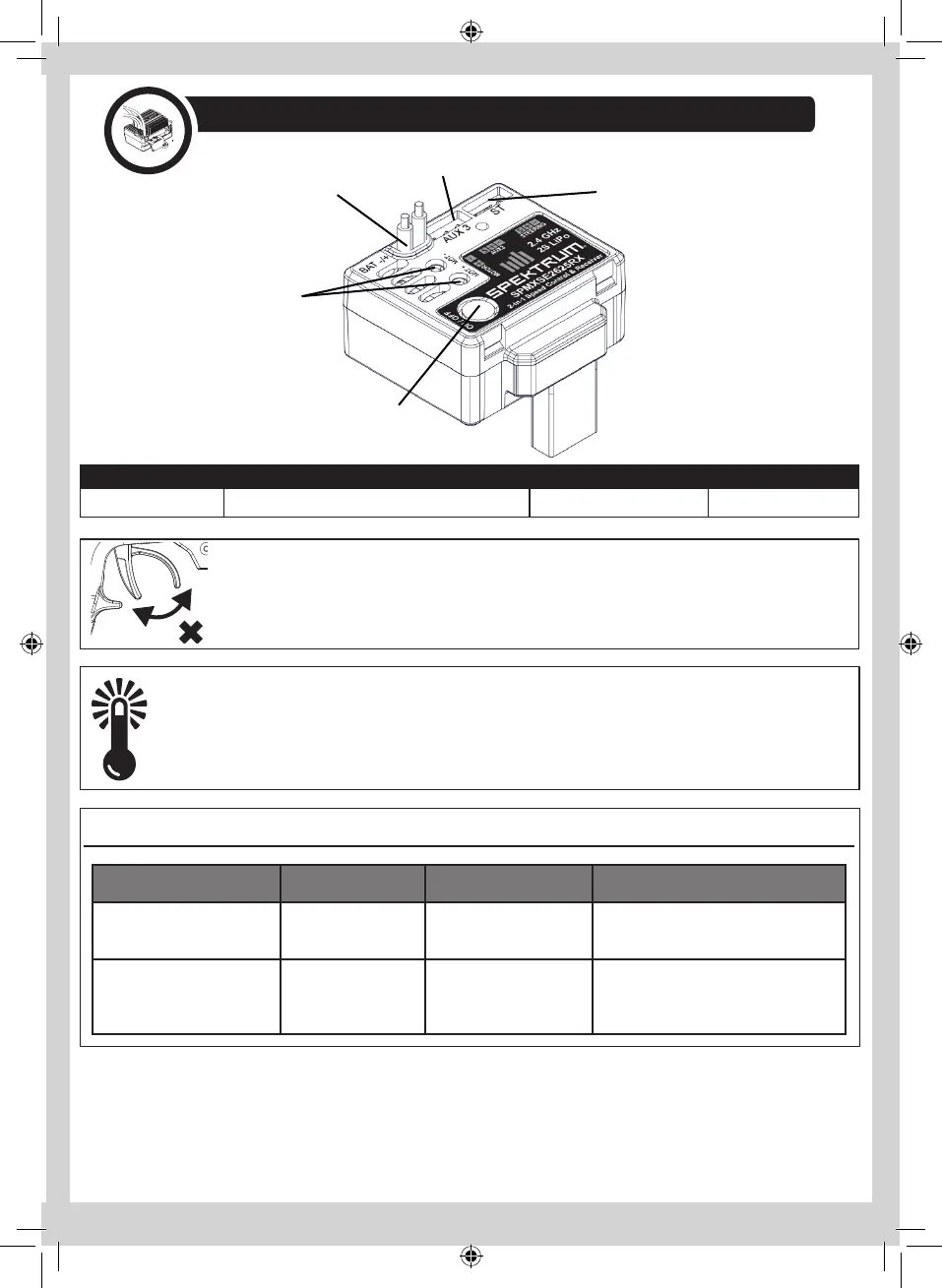

Arrma SPECTRUM SLT2 - 2-IN-1 ESC and Receiver Unit; Throttle Setup; TROUBLESHOOTING GUIDE

WWW.ARRMA-RC.COM
WWW.ARRMA-RC.COM
ESC Specications
Input Voltage 2S LiPo (7.4v) BEC Output 6.0v/3A Max
Battery Wire
Power
Switch
Motor Connectors
Steering
(CH1) socket
2-in-1 ESC and Receiver Unit
CH3 socket
If the ESC temperature exceeds 110 degrees Celsius, the ESC will enter temperature
protection mode and the LED will blink. Once the ESC has cooled down it will resume
normal operation.
Temperature Protection
Throttle Setup
Do not move the throttle when switching the model on as the ESC will
automatically set the throttle neutral.
TROUBLESHOOTING GUIDE
Problem and LED Indi-
cator
Error Mode Possible Causes Solution
Motor won’t operate. LED
ashes slowly short single
pulses.
LVC has been
activated.
Battery voltage is
below the LVC setting.
Verify the battery is charged.
Motor won’t operate.
LED ashes quickly with
short single pulses.
The ESC is in
thermal shuto󰀨
mode.
The ESC is taking too
much load.
Turn o󰀨 the ESC and allow it to
cool before resuming operation.
Consider making changes to gear
ratio to reduce load to the ESC.
19
