Arrow AR108-A - Gables;Braces

● Parts Needed For ●
Gables/Braces
Step 11
N24
●●
●●
● Left Gable Assemblies (2)
●●
●●
● Right Gable Assemblies (2)
●●
●●
● 9009 Gable Brace (2)
24

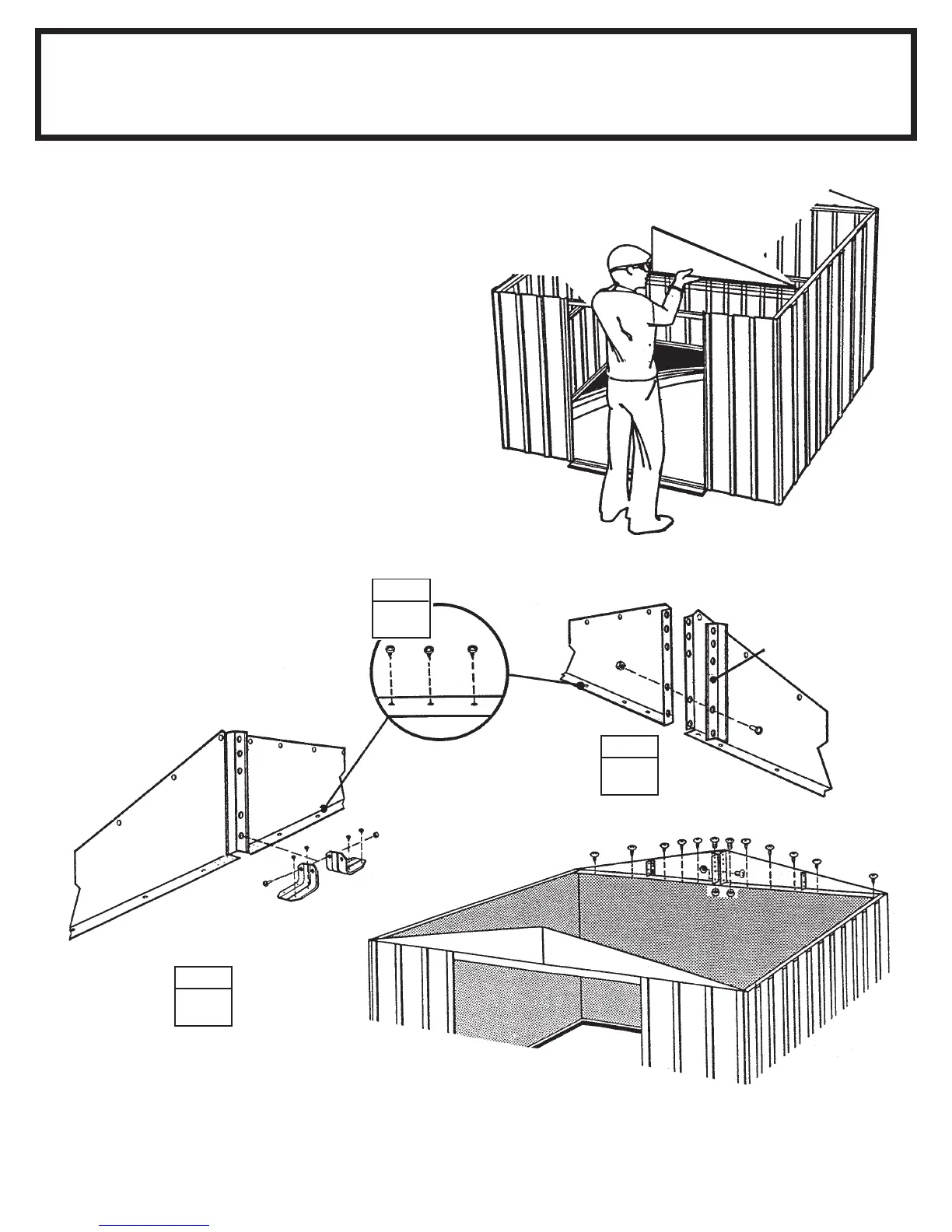

1 Lift and fasten a right and left
gable, under angle at corner, to the
door track with screws.
Hint: On the rear gable, use a bolt
and nut at the overlapping rear wall
angle. On the front gable, leave out 2
screws closest to center gable leg.
2 Join the left and right gables
together with a gable brace using a
bolt in the second hole from the bot-
tom only.
Repeat Steps 1 & 2 for the opposite
side of building.
3 Fasten the track supports to the
front gable assembly, as shown.
STEP
3
Track Supports 6228
STEP
1
Gable
STEP
2
9009 Gable Brace
