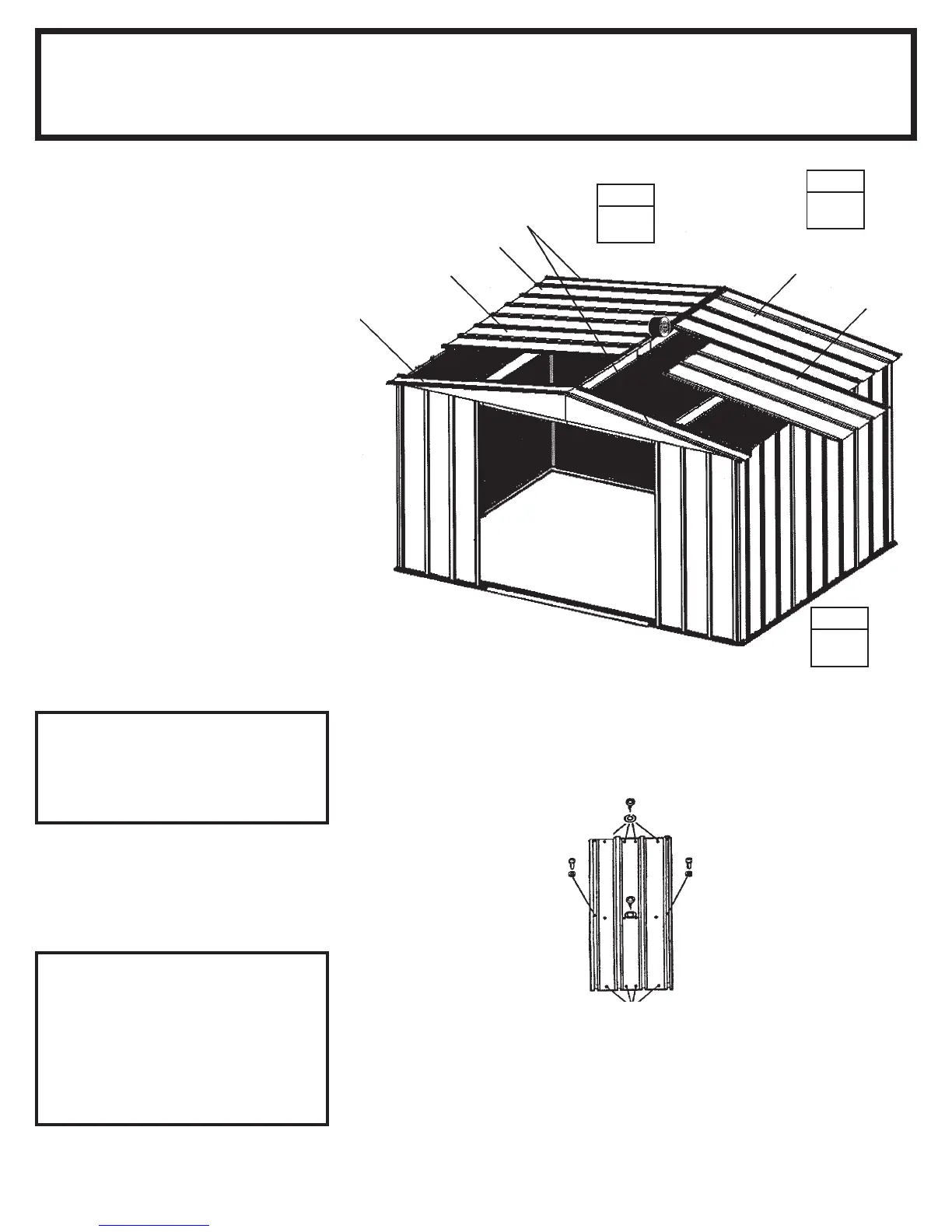

Arrow AR108-A - Roof Assembly

1 Install a left roof panel at the left
rear and right front corner of the roof.
Install a right roof panel at the left
front corner of the roof.
3 Install 2 narrow and 2 wide roof
panels in the sequence and posi-
tions shown on previous page. Do
not fasten the lower end of the panels
to the side wall angles at this time.
Continue weather stripping the ridge
opening.
NOTE
Narrow roof panel crimped rib is
overlapped by wide rib of
adjacent panel where possible.
Step 14
N27
● Parts Needed For ●
Roof Assembly
27
●●
●●
● 8578 Right Roof Panel (1)
●●
●●
● 8579 Left Roof Panel (2)
●●
●●
● 7571 Roof Panel (2)
●●
●●
● 7743 Roof Panel (2)
2 Cut 4 short 2" (5cm) strips off the
roll of weather stripping tape, and
put them aside. Cover the joint at the
peak with weather stripping tape.
Unroll the tape and press it down
over the opening at the ridge as you
install each roof panel. Do not cut the
tape at this time.
NOTE
If roof beam holes do not line up
with the roof panel holes, shift the
building from left to right.
If this does not help, your building
may not be level. Shim the
corners until holes line up.
Do not fasten
at this time
Fasten At
Overlap with
Bolt
Fasten At
Overlap with
Bolt
Screws To
Roof Beam
STEP
STEP
Screws To
Roof Beam
3
8579 Left Roof Panel
7571 Roof Panel
7743 Roof Panel
8578 Right
Roof Panel
Weather Stripping
Tape Roll
7571 Roof Panel
FRONT
7743 Roof Panel
1
STEP
2
