Arrow AR108-A - Right Roof Panel

26
Step 13
N26
● Parts Needed For ●
Right Roof Panel
●●
●●
● 8578 Right Roof Panel (1)
Installing the roof panels is best done
with a step ladder. Begin installing
roof panels at the back right corner of
the building. Each screw and bolt in
the roof requires a washer.
NOTE
Measure the building diagonally
again and make adjustments to
make sure the building is square.
This will make the roof panels fit
better, and holes will align.
NOTE
If a Roof Beef-Up Kit was
purchased, assemble prior to
attaching the roof panels.
1 Locate the roof panels by their
numbers. Note the sequence and
position they are to be installed.
2 Position the right roof panel at the
back right corner and fasten to the
gable with 5 bolts and nuts and roof
beams using 2 screws. Do not fasten
the lower end of the panel to the side
wall angle at this time.

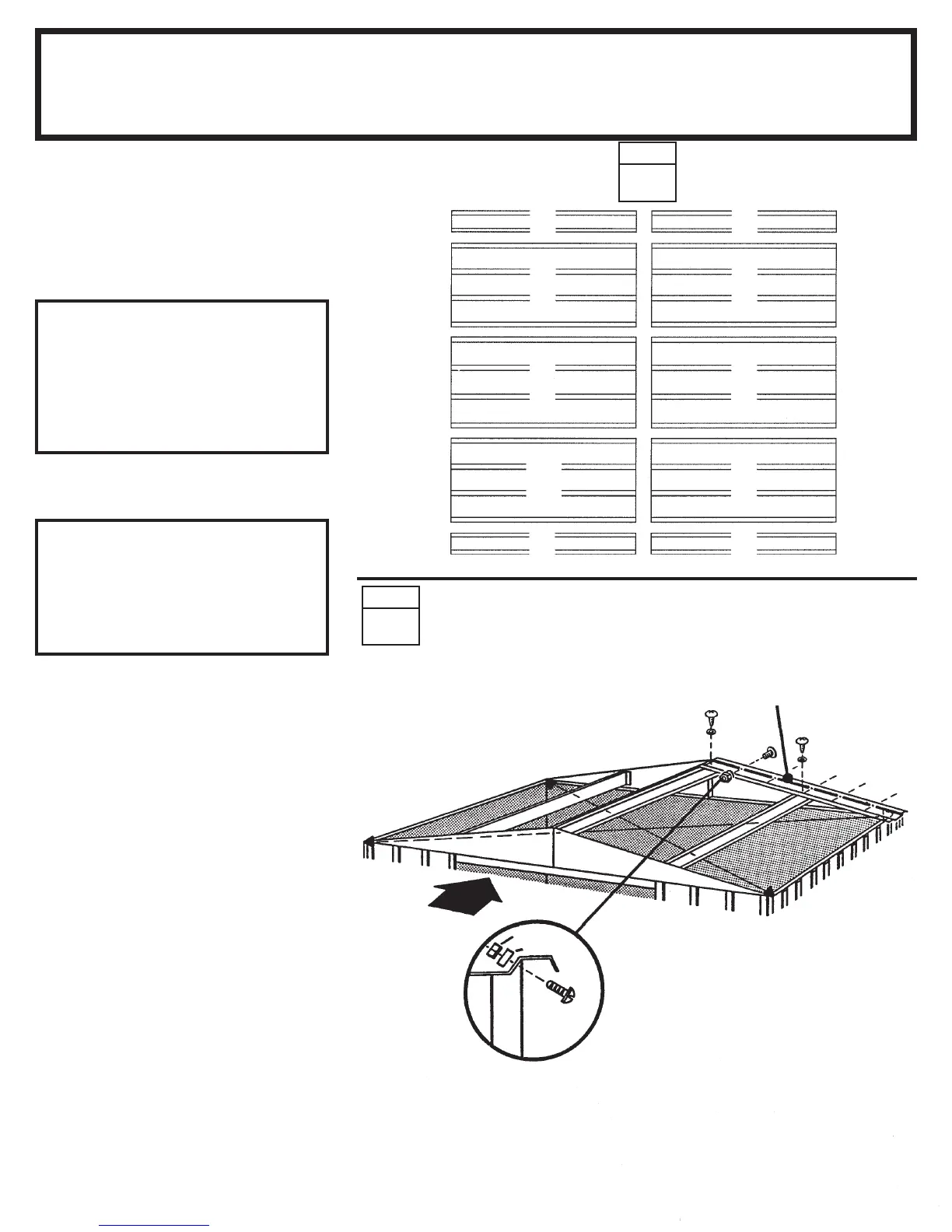

Hint: Attach fasteners in order shown
in diagram.
8578 Right Roof Panel
FRONT
Washer
Bolt
Gable
STEP
2
STEP
1
Nut
1
2
3
4
5
6
7
8579
7571
7571
8578
8579
7571
7571
8578
8
6
2
4
1
5
7
3
FRONT
7743
7743
10
9
