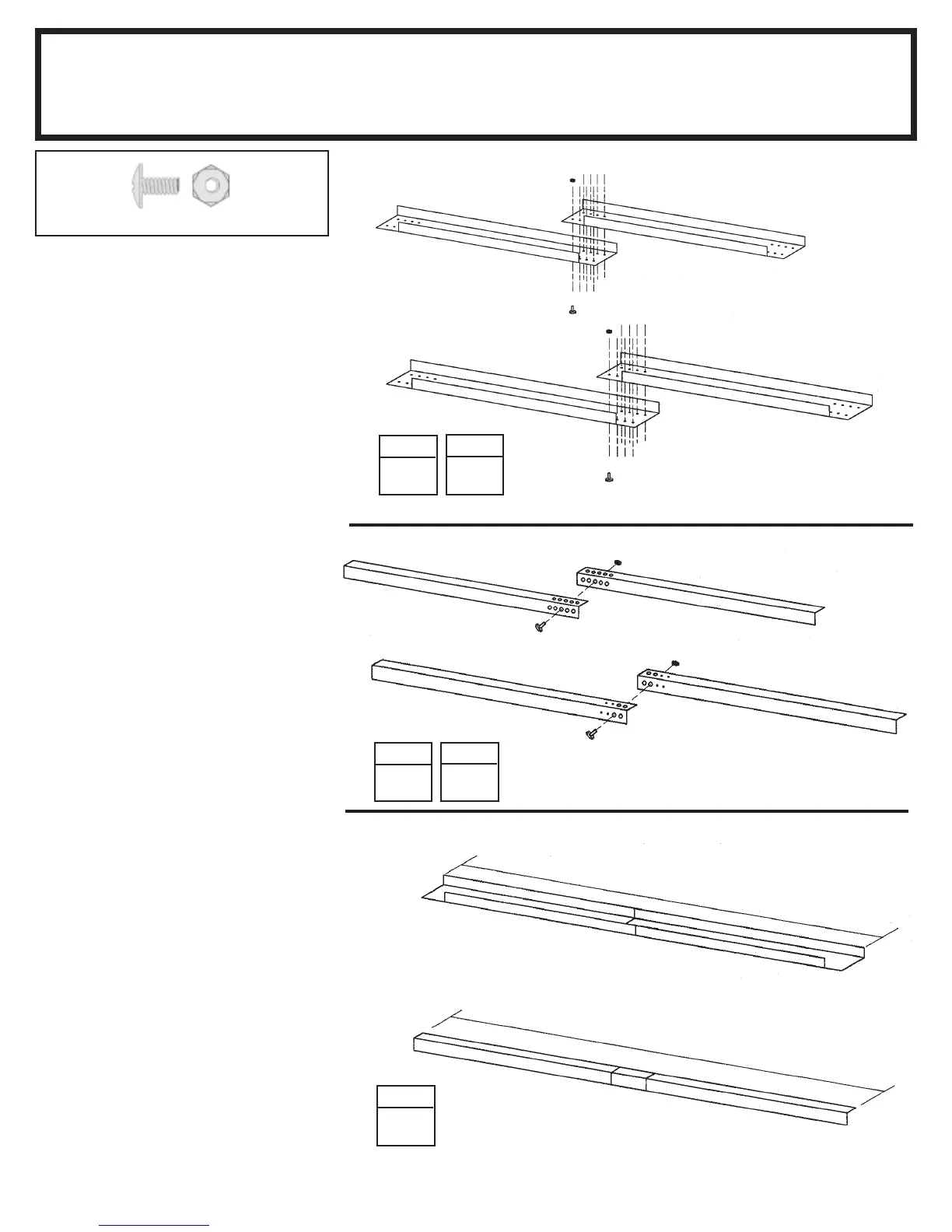

Arrow DK1014-B1 - Wall Frame Assembly

Step 2
SO15hw
15
● Parts Needed For ●
Frame Assemblies
The main frame pieces reinforce the
walls. These pieces will later be in-
stalled in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:
1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
eight bolts as shown.
2 Make two side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
together with eight bolts as shown.
3 Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with one bolt in
the center hole.
4 Make two side wall angles by
overlapping the side wall angle
pieces as shown. Fasten each set
together with one bolt thru the sec-
ond large hole from the end of each
part.
5 Double check the length of each
and set these pieces aside for later
use.
●●
●●
● 5986 Rear Wall Angle (2)
●●
●●
● 10389 Rear Wall Channel (2)
●●
●●
● 10388 Side Wall Channel (4)
● ●
● ●
● 10391 Side Wall Angle (4)
STEP
1
STEP
2
10389
10388
Side Wall Channels
157 3/8" 399,7 cm
Rear Wall Angle
118 1/8" 300,0 cm
5986
5986
10391
Side Wall Angles
157 3/8" 399,7 cm
STEP
3
4
Rear Wall Angle 118 1/8" 300,0 cm
Side Wall Angles 157 3/8" 399,7 cm (2 Assemblies)
STEP
5
STEP
Rear Wall Channel
118 1/8" 300,0 cm
10388
10389
10391
Rear Wall Channel 118 1/8" 300,0 cm
Side Wall Channels 157 3/8" 399,7 cm (2 Assemblies)
(27)
