Arrow DK1014-B1 - Gable and Roof Beam Joining

● Parts Needed For ●
Gables/Roof Beams
Step 12
SO25hw
●●
●●
● Left Gable Assemblies (2)
●●
●●
● Right Gable Assemblies (2)
●●
●●
● Single Roof Beam Assemblies (2)
●●
●●
● 6636 Gable Brace (2)
25

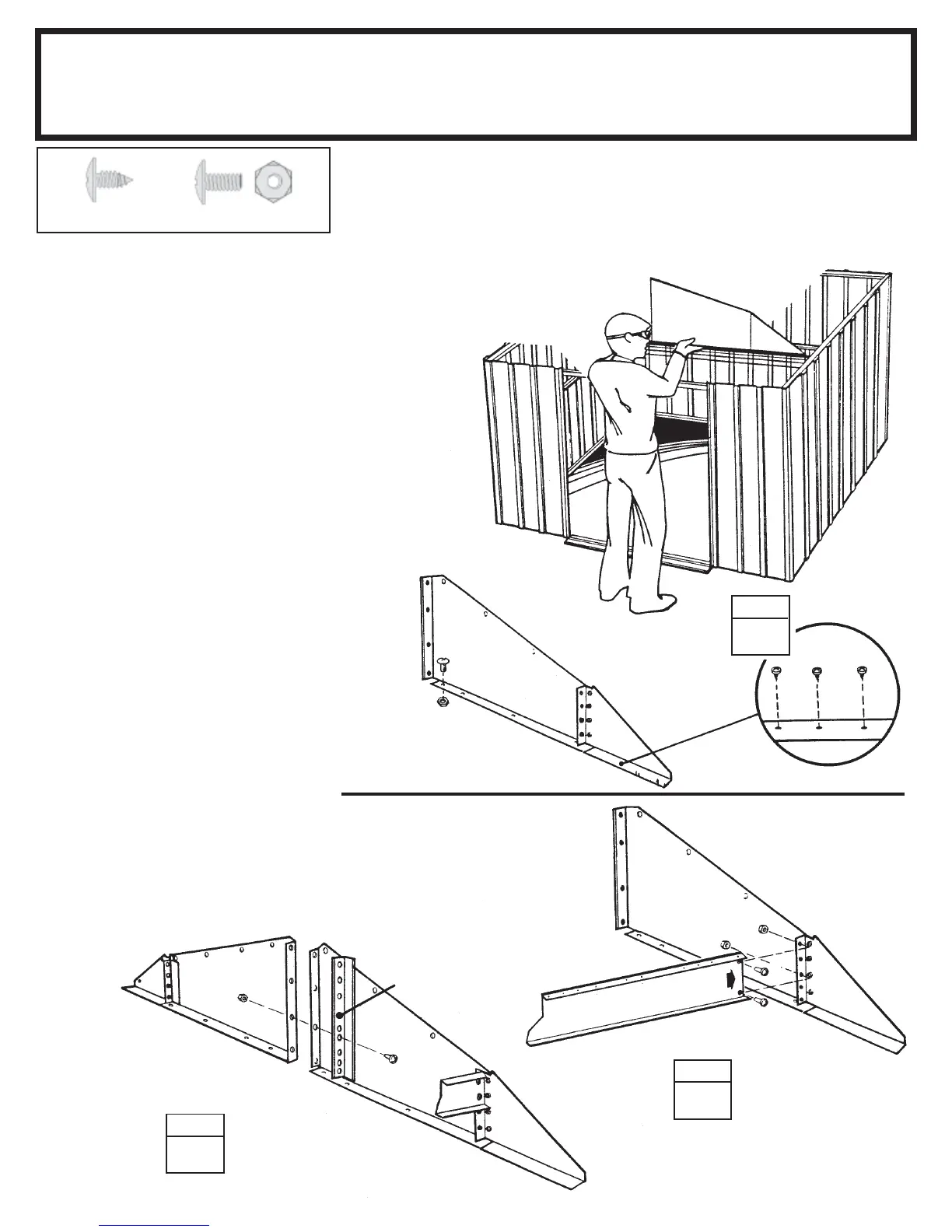

1 Lift and fasten a right and left
gable, under angle at corner, to the
door track and rear wall angle with
screws.
Hint: On the front gable, leave out 2
screws closest to center gable leg.
On the rear gable, use a bolt and nut
at the overlapping rear wall angle.
2 Fasten the single roof beam to
the outer gable leg as shown using
bolts.
Hint: The holes along the length of
the beam must be on the top surface.
Repeat Step 1 for the opposite side of
building.
3 Join the left and right gables
together with a gable brace using a
bolt in the second hole from the
bottom only. Do this step for both
front and rear gables.
Repeat Step 2 for the opposite side of
building.
STEP
3
6636 Gable Brace
STEP
1
10386 Roof Beam (Single)
STEP
2
Gable
Nut and bolt
at rear of building.
(28) (12)
