Step 2
A15
15
● Parts Needed For ●
Frame Assemblies
The main frame pieces reinforce the
walls. These pieces will later be in-
stalled in the center and at the top
edge of the side walls and the rear
wall. Proceed as follows:

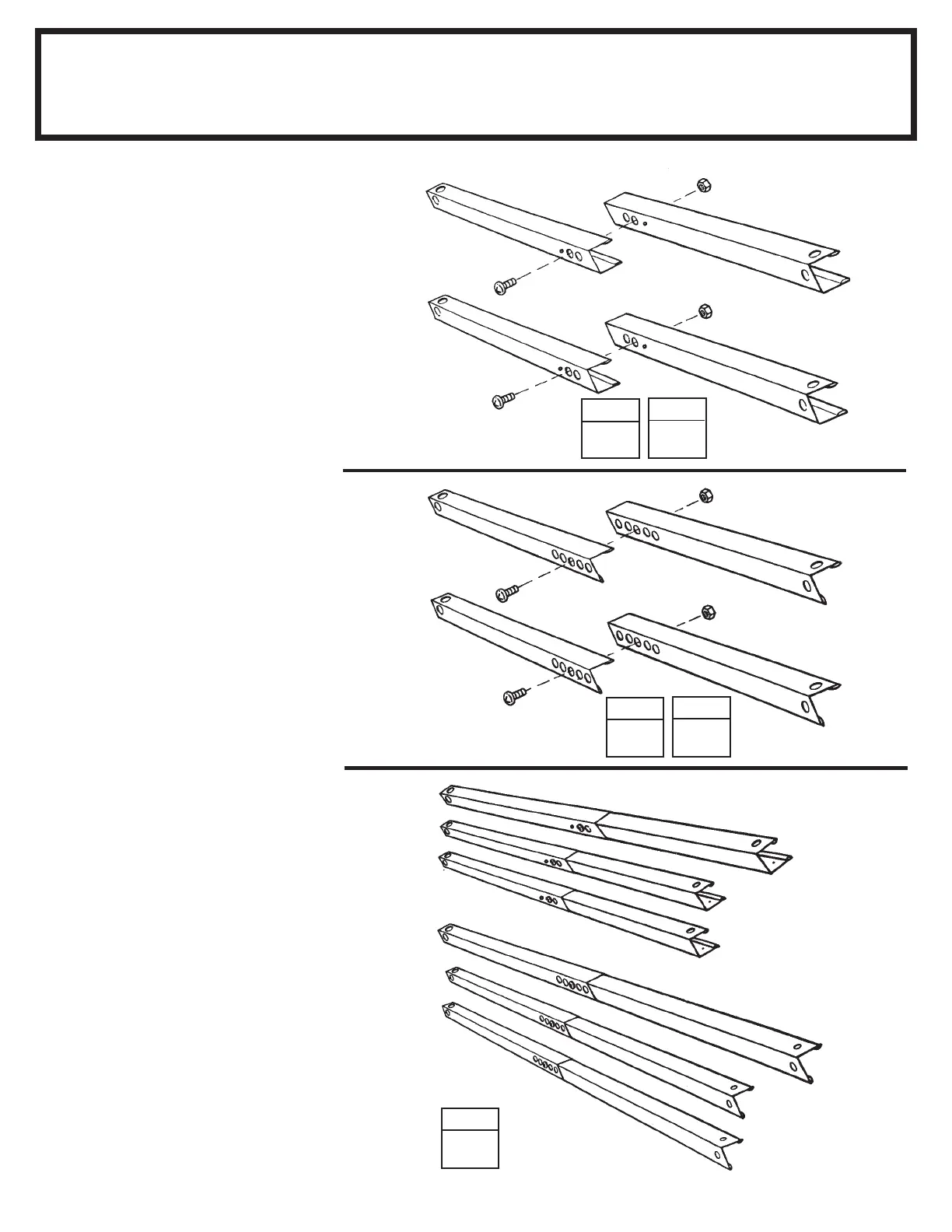

1 Overlap the rear wall channel
pieces as shown in the figure and
fasten the two pieces together with
one bolt in the center hole
(three
holes will align).
2 Make two side wall channels by
overlapping the side wall channel
pieces as shown. Fasten each set
together with
one bolt in the center
hole
of each set.
3 Overlap the rear wall angle
pieces as shown in the figure and
fasten them together with
one bolt in
the center hole.
4 Make two side wall angles by
overlapping the side wall angle piec-
es as shown. Fasten each set togeth-
er with
one bolt in the center hole.
5 Set the assemblies aside. You will
use them later.
●●
●●
● 5986 Rear Wall Angle (2)
●●
●●
● 9917 Rear Wall Channel (2)
●●
●●
● 9922 Side Wall Channel (4)
● ●
● ●
● 8839 Side Wall Angle (4)
STEP
1
118 1/8" 300,0 cm
9917
STEP
2
9917
9922
Side Wall Channels
89 7/8" 228,3 cm
9922
Rear Wall Angle
118 1/8" 300,0 cm
5986
5986
8839
8839
Side Wall Angles
89 7/8" 228,3 cm
STEP
3
4
Rear Wall Channel
118 1/8" 300,0 cm
Side Wall Channels
89 7/8" 228,3 cm
Side Wall Angles
89 7/8" 228,3 cm
Rear Wall Angle
118 1/8" 300,0 cm
STEP
5
STEP
Rear Wall Channel
To Next Page
