Artesis eMCM - 2. Name

7

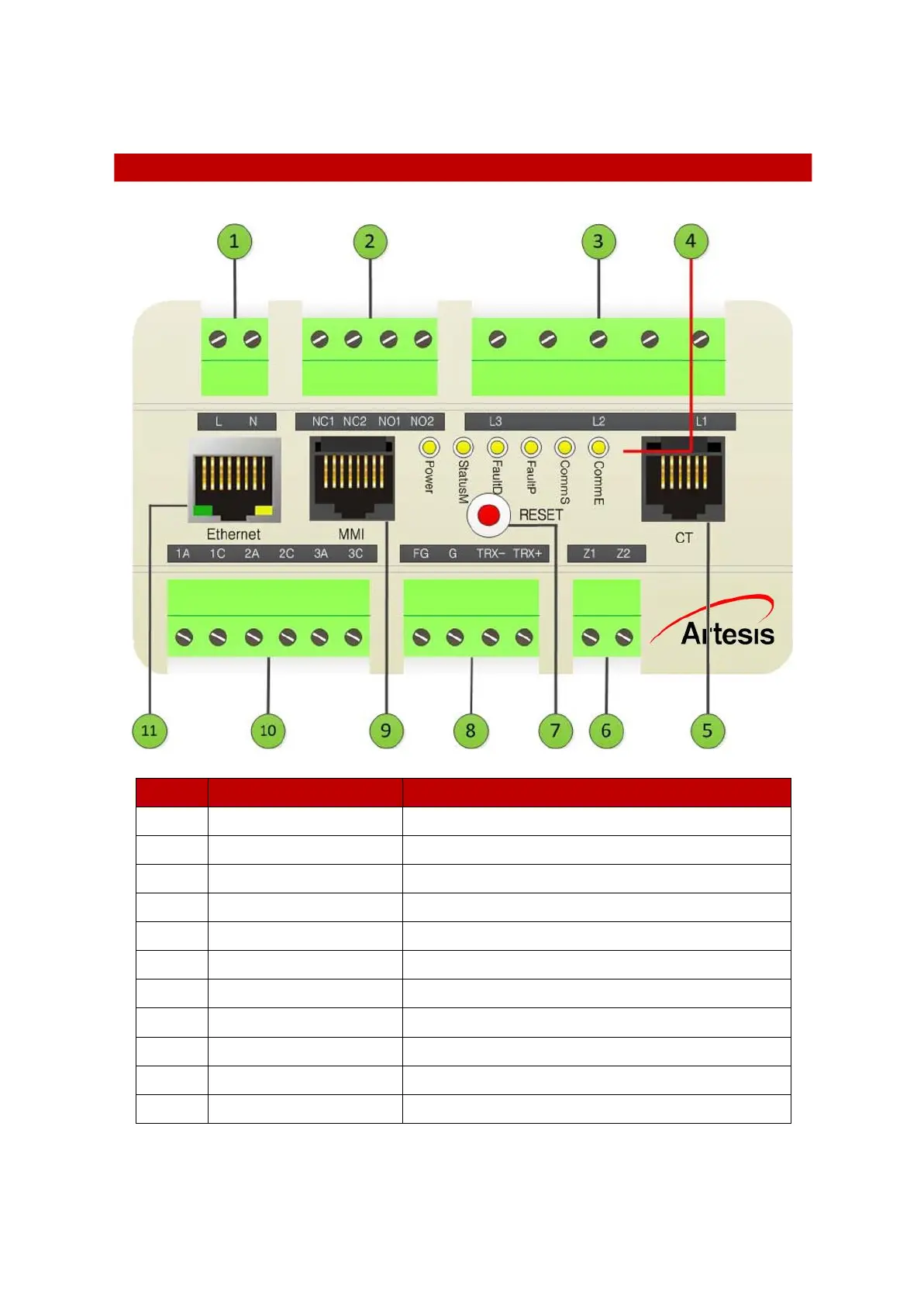

2. Name
No
Nam e
Func t i on
1
Supply voltage terminal
Terminal for operational power ( A C100~2 40V)
2
Empty terminal
No Function
3
Motor voltage i np u t
Terminal for motor input voltage
4
Status LED
Indicates Power status, Module status, e tc.
5
CT connection port
Terminal for 3 phase CT connection (RJ11)
6
ZCT connection port
Terminal for ground CT connection
7
Reset button
Trip Relay Reset Button
8
RS-485 terminal
Terminal for RS-485 communication
9
HMI t erm i nal
Terminal for connecting with HMI (RJ45)
10
Empty terminal
No Function
11
Ethernet port
Terminal for ethernet communication (RJ45)
