Bipolar Controls

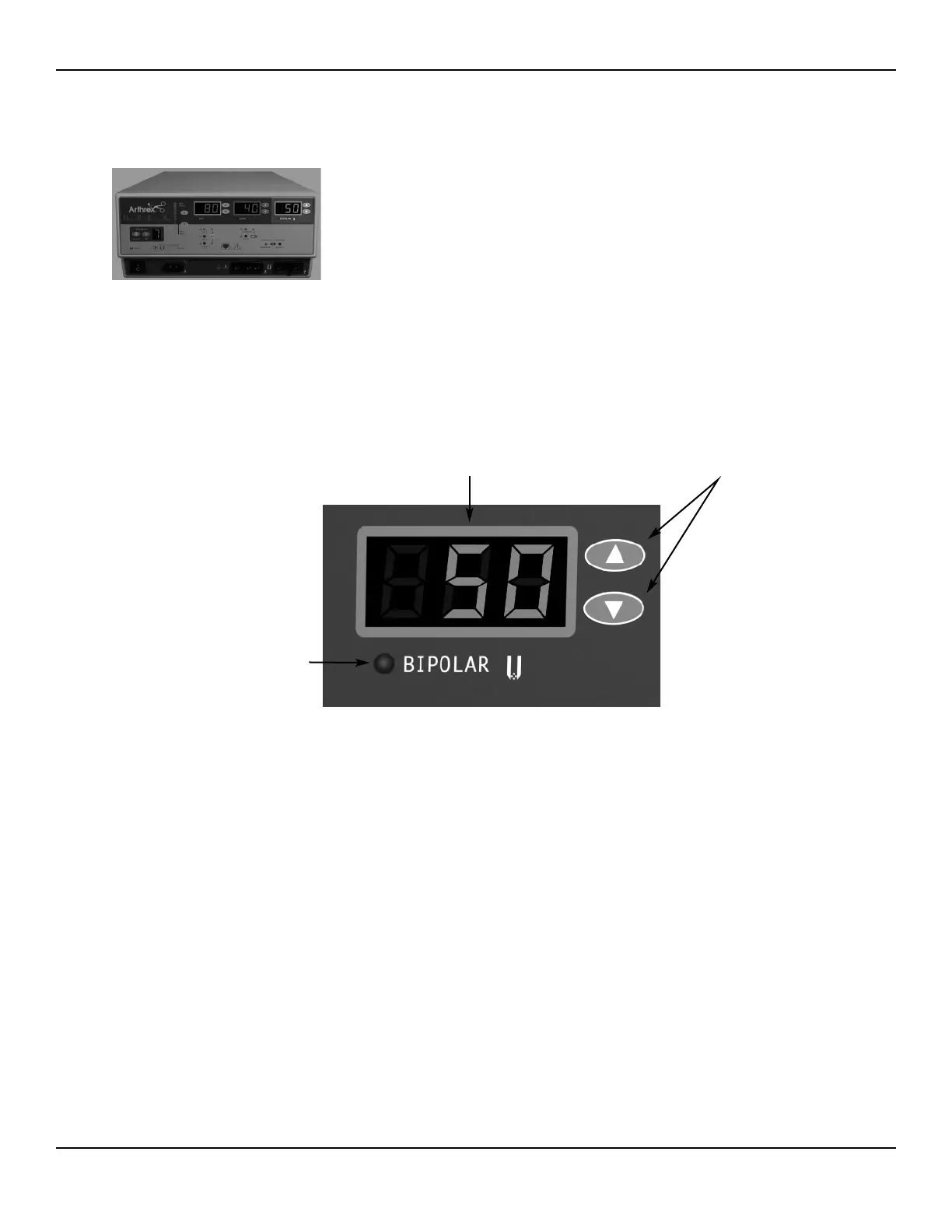

Figure 2 – 5
Controls for the Bipolar mode
2-7
User
’s Guide • O.P
.E.S. Electrosurgical Generator
Bipolar Power Display (watts)
Indicates the power set for the
Bipolar mode.
Displays error code in the event
of an error
.
Bipolar Power Control Buttons
Increases or decreases the Bipolar
power output in increments of 1 to
10 watts.
Bipolar Activation Indicator
Illuminates when Bipolar mode
is activated.
18
20
Table of Contents
Equipment Covered in this Manual
2
For Information Contact
2
Conventions Used in this Guide
3
Table of Contents
4
Introducing the Arthrex O.P.E.S. Electrosurgical Generator
7
Key Features
8
Components and Accessories
9
Safety
10
Controls, Indicators, and Receptacles
13
Front Panel
14
Figure 2 - 1 Layout of Controls, Indicators, and Receptacles on the Front Panel
14
Symbols on the Front Panel
15
Preset Controls
16
Figure 2 - 2 Controls for Setting and Recalling Presets
16
Cut and Blend Controls
17
Figure 2 - 3 Controls for the Cut and Blend Modes
17
Coag Controls
18
Figure 2 - 4 Controls for the Coag Mode
18
Bipolar Controls
19
Figure 2 - 5 Controls for the Bipolar Mode
19
Figure 2 - 6 Indicators for Power, Return Electrodes, and Footswitch Control
20
Indicators
20
Figure 2 - 7 Location of the Unit Power Switch and Front Panel Receptacles
21
Power Switch and Receptacles
21
Rear Panel
22
Symbols on the Rear Panel
22
Figure 2 - 8 Layout of Connectors and Controls on the Rear Panel
22
Getting Started
23
Initial Inspection
24
Installation
24
Function Checks
24
Setting up the Unit
24
Checking the Return Electrode Alarm
24
Confirming Modes
25
Checking Bipolar Mode (with Bipolar Footswitch)
25
Checking Monopolar Mode (with Monopolar Footswitch)
25
Checking Monopolar Mode (with Handswitch)
25
Performance Checks
25
Using the Arthrex O.P.E.S. Electrosurgical Generator
27
Inspecting the Generator and Accessories
28
Setup Safety
28
Setting up
29
Preparing for Monopolar Surgery
30
Applying the Return Electrode
30
Connecting Accessories
30
Preparing for Bipolar Surgery
31
Memory Presets and Factory Settings
31
Memory
31
Memory Function Overview
31
Setting Your Presets
32
Factory Presets
32
Blend Controls
33
Memory Feature (Last Used Preset)
34
Activating the Unit
35
Activation Safety
35
Maintaining the Arthrex O.P.E.S. Electrosurgical Generator
37
Cleaning
38
Periodic Inspection
38
Fuse Replacement
38
Figure 5 - 1 Fuse Holder
38
Troubleshooting
39
Error Codes and Audio Tones
40
Repair Policy and Procedures
41
Responsibility of the Manufacturer
42
Returning the Generator for Service
42
Step 1 - Obtain a Returned Authorization Number
42
Step 2 - Clean the Generator
42
Step 3 - Ship the Generator
42
Technical Specifications
43
Performance Characteristics
44
Input Power
44
Duty Cycle
44
Dimensions and Weight
44
Operating Parameters
44
Transport and Storage
44
Audio Volume
45
Return Electrode Sensing
45
Low Frequency (50-60 Hz) Leakage Current
45
High Frequency (RF) Leakage Current
46
Standards and IEC Classifications
46
Class I Equipment (IEC 60601-1
46
Type CF Equipment (IEC 60601-1) / Defibrillator Proof
46
Drip Proof (IEC 60601-2-2
46
Electromagnetic Interference
46
Electromagnetic Compatibility (IEC 60601-1-2 and IEC 60601-2-2
46
Voltage Transients (Emergency Generator Mains Transfer
46
Output Characteristics
46
Maximum Output for Monopolar and Bipolar Modes
46
Output Power Curves
47
Figure a - 1 Output Power Vs Impedance for Cut I Mode
47
Figure a - 2 Output Power Vs Impedance for Cut II Mode
47
Figure a - 3 Output Power Versus Impedance for Blend Mode, Set at Minimum
48
Figure a - 4 Output Power Versus Impedance for Blend Mode, Set at Maximum
48
Figure a - 5 Output Power Vs Impedance for Pinpoint Mode
49
Figure a - 6 Output Power Vs Impedance for Spray Mode
49
Figure a - 7 Output Power Vs Impedance for Bipolar Mode
50
Warranty
51
