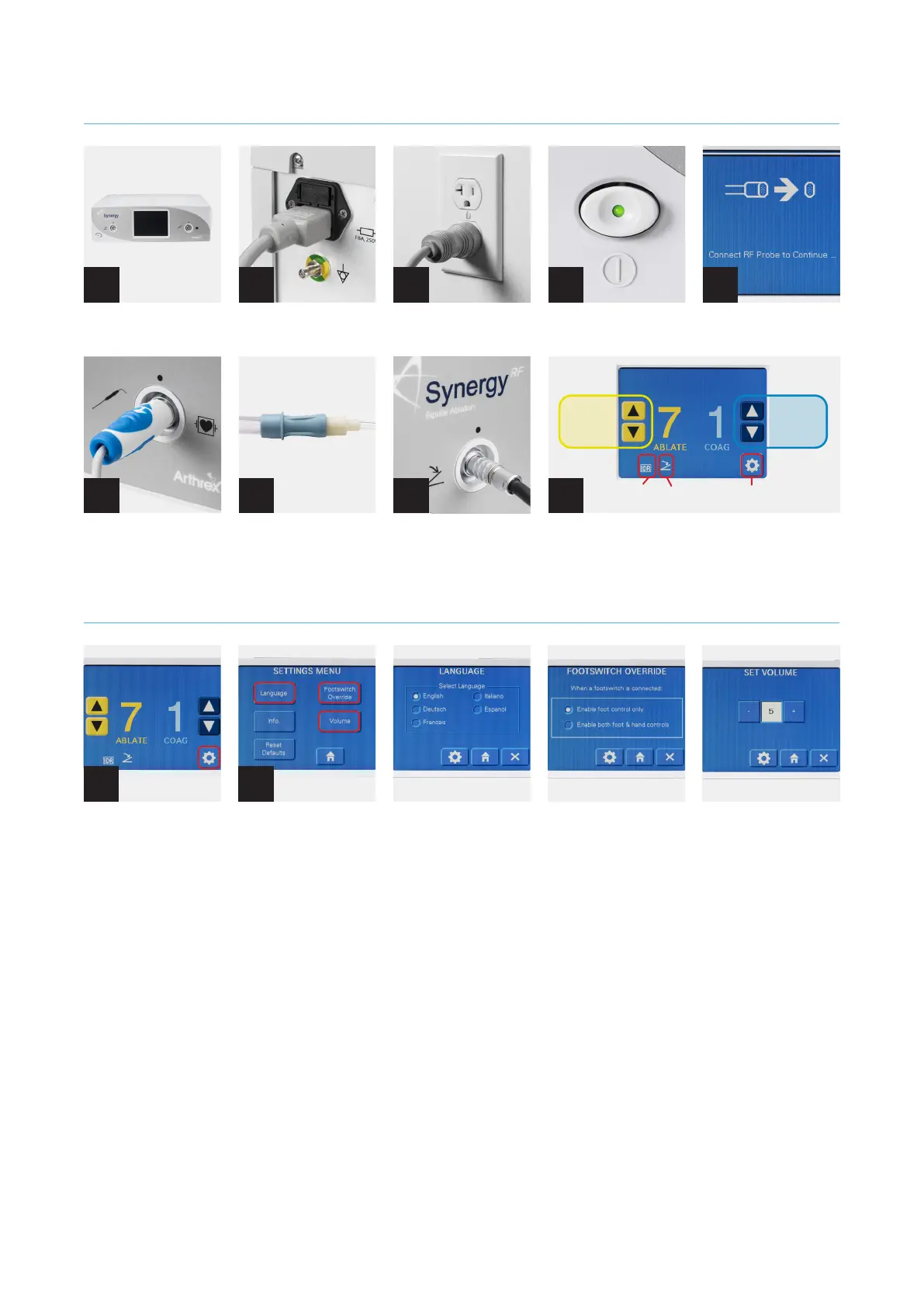

APOLLO 90
Place console on a
flat, dry surface
1
Setup
Connect power cord
to console
Connect power cord
to outlet
Power on console Allow console to fully
initialize
Attach probe via
connector to console
For suction probes,
attach suction tube
Attach footswitch
if desired
Change settings using touch panel to set main
screen display
9
APOLLO 90
Device
Recognition
Indicator
Footswitch
Icon
Menu
Button
Ablate
Power
Settings
Coag
Power
Settings
Press menu setting
button
To Adjust Settings
Press desired setting For Language:
Select desired
language and then do
one of the following:
Press HOME to save
setting and return to
main screen
-OR-
Press Setting Button to
save setting and return
to MENU
-OR-
Press X to return
to MENU without
changing default
For Footswitch
Override:
Select desired option
and then do one of the
following:
Press HOME to save
setting and return to
main screen
-OR-
Press Setting Button to
save setting and return
to MENU
-OR-
Press X to return
to MENU without
changing default
For Volume:
Select desired volume
using + or – buttons
and then do one of the
following:
Press HOME to save
setting and return to
main screen
-OR-
Press Setting Button to
save setting and return
to MENU
-OR-
Press
X to return to MENU
without changing
default
