4. Nomenclature and functions.

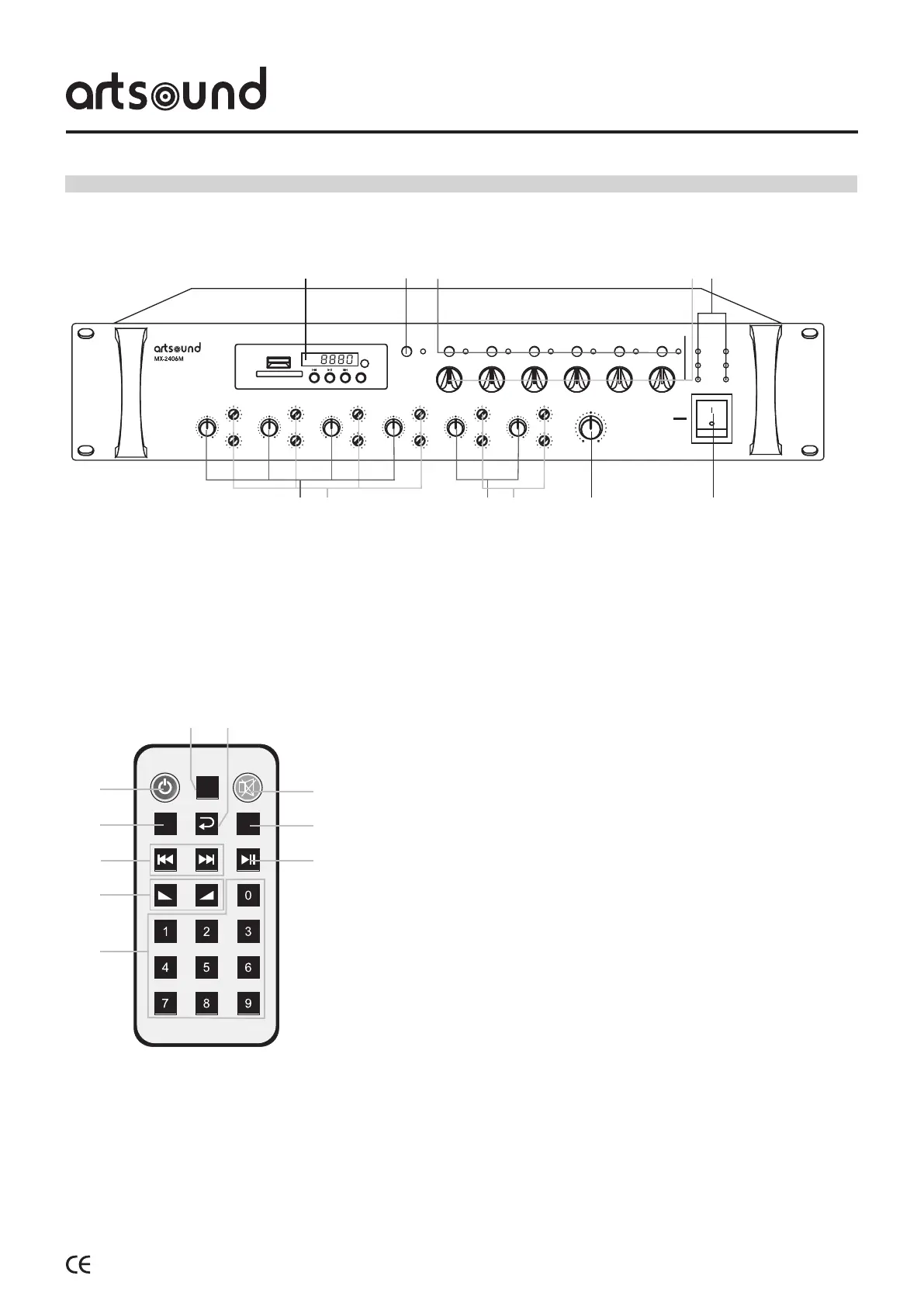

4.1 Front panel
1. MIC1-4 volume controle
2. MIC1-4 treble en bass controle
3. LINE1-2 volume controle
4. LINE1-2 treble en bass controle
5. MASTER volume
6. ON/OFF
7. LED indicator (PROT/CLIP/SIG/
POWER/AC/DC)
8. 6-zone volumeregelaars
9. 6-zone on/off + indicator
10. Algemene oproep
11. Multimedia bron (FM/USB/SD/BT)
1. ON/OFF
2. Mode (source selection)
3. Previous/next
4. Volume +/-
5. 0~9
6. Play/pause
7. EQ
8. Mute
9. Repeat
10. Stop
Normal range with use of remote
control is 8 metres. Reduced per-
formance may indicate reduced
power of the battery.
4.2 Remote control (built-in music source)
