Aruba Instant On AP15 Access Point | Installation Guide 5

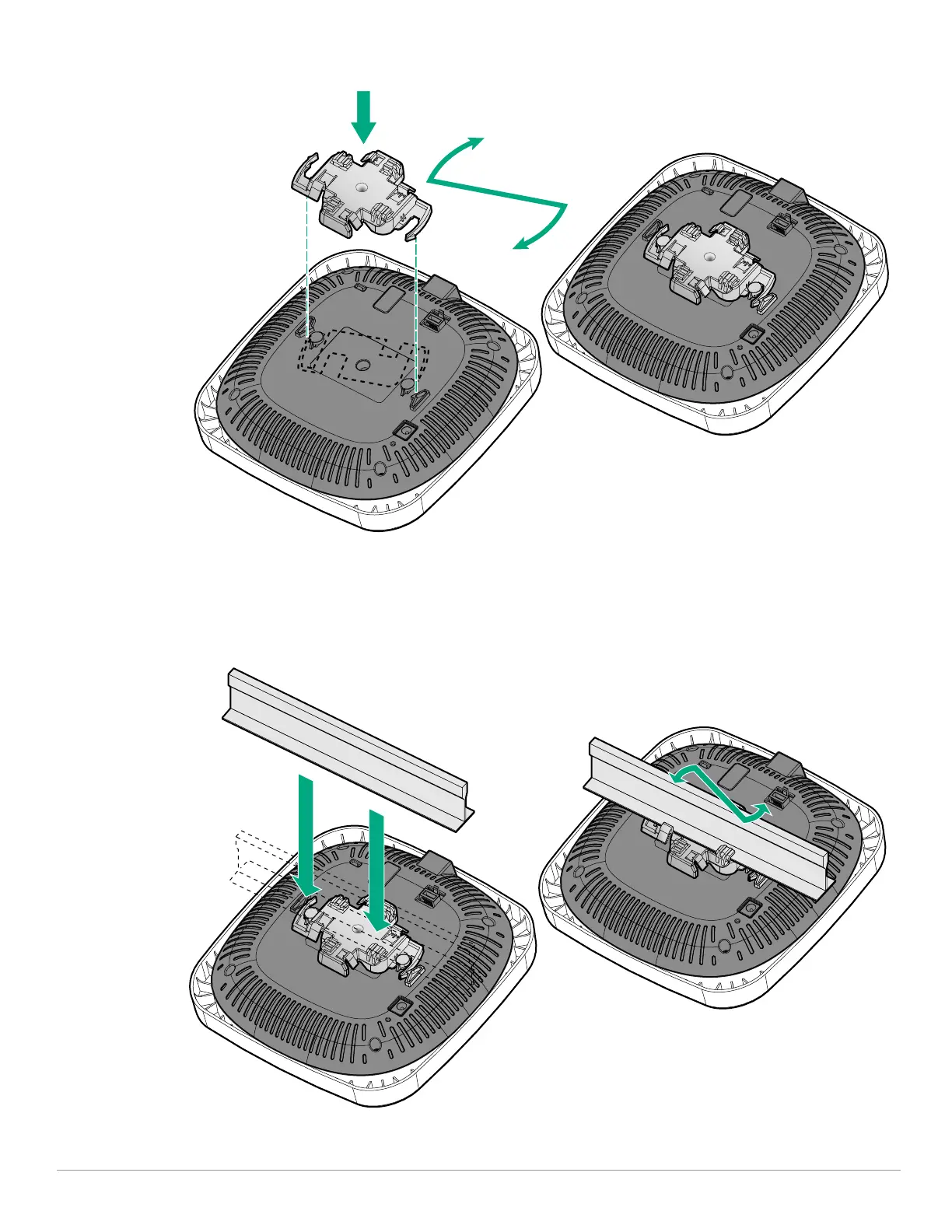

Figure 4 Attaching the Ceiling Mount Bracket to the AP
4. Hold the access point next to the ceiling tile rail with the ceiling tile rail mounting slots at approximately a 30-
degree angle to the ceiling tile rail (see Figure 5 and Figure 6). Make sure that any cable slack is above the
ceiling tile.
5. Pushing toward the ceiling tile, rotate the access point clockwise until the device clicks into place on the
ceiling tile rail.
Figure 5 Mounting the AP to a 15/16” Ceiling Rail
