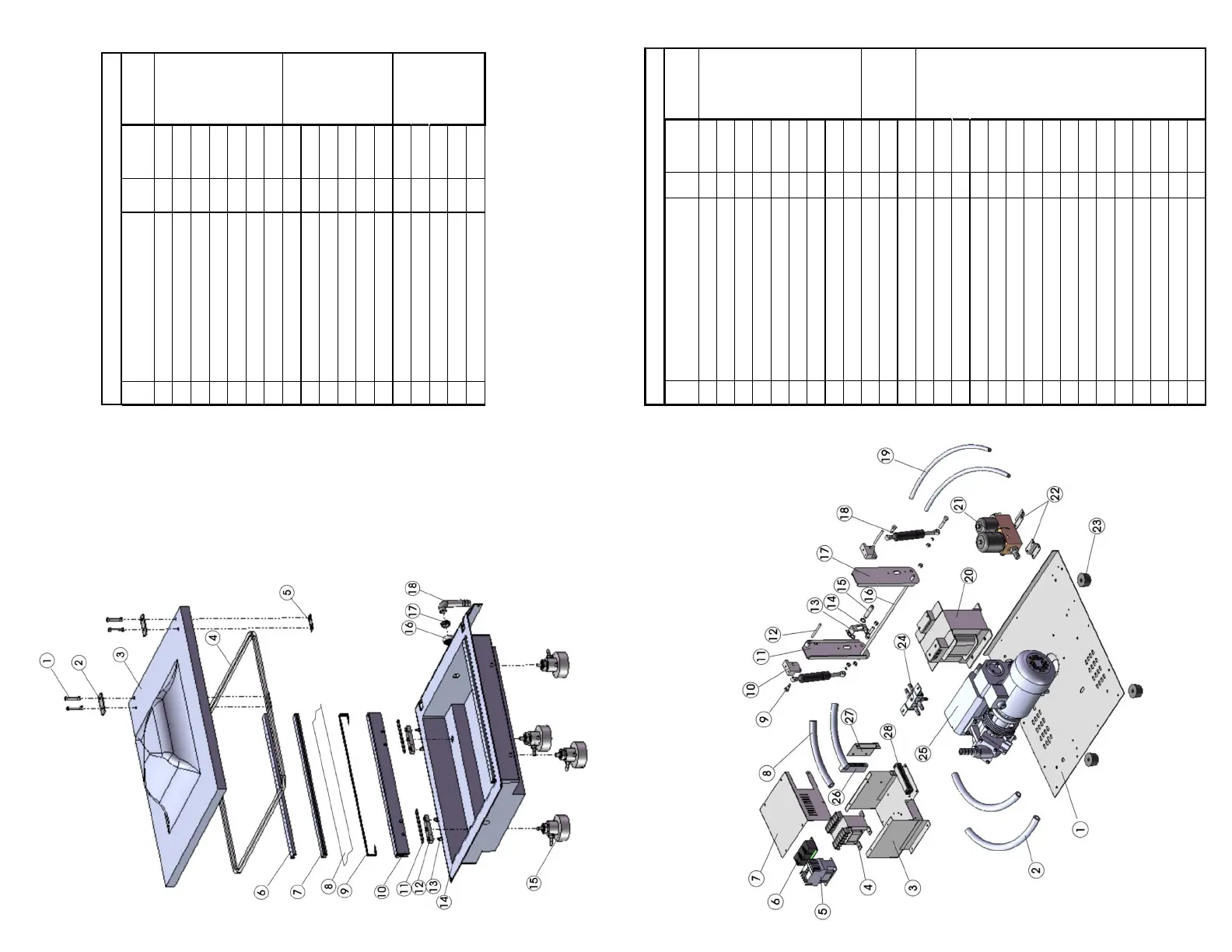

Fig. 1
Fig. 2
Figure 1
Name Qty.
Part
Number
Assembly
Part Number
1 Hexagon Socket Cap Screw 4
2 Upper Platen for Lid 2
3 Chamber Lid 1 979301
4 Lid Gasket 1 979426
5 Lower Platen for Lid 2
6 Top Bar 2 979310
7 Seal Pad 2 979418
8 Teon Tape 2 979421
Seal Bar
Assembly
(979321)
9 Seal Wire 54” 979109
10 Seal Bar 2
11 Brass Contacts 4
12 Seal Bar Tension Blocks 4
13 Tension Block Screws 8
14 Vacuum Chamber 1
15 Piston Assembly 4 979380
16 Inlet Ring* 1
17 Inner Inlet Ring* 1
18 Exhaust Tube* 1
Figure 2
Name Qty
Part
Number
Assembly
Part Number
1 Bottom Plate 1
2 Large Silicone Tube 979158
3 Housing of Electric Box 1
4 Control Transformer 1 979139
5 Intermediate Relay 1 979136
6
Timer Relay 1
979135
7 Cover for Electrical Box 1
8 Large Silicone Tube 979158
9 Screw & Nut Upper 1 979358
10 Lid Hinge 1
Lid Hinge
Assembly -
(979352)
11 Lid Hinge Shaft 1
12 Lid Hinge Support 1
13 Proximity Switch Bracket 1 979354
14 Screw & Nut Lower 1 979357
15 Proximity Switch 1 979355
16 Pull Rod 1
17 Lid Hinge Support 1
18 Gas Shock 2 979356
19 Small Silicone Tube 979156
20 Sealing Transformer 1 979341
21 Solenoid Combined Valve 1 979360
22 Solenoid Valve Support 1
23 Rubber Foot 4 979159
24 Distribution Air Block 1
25 Vacuum Pump* 1 979320
26 Circuit Board Port 1
27 Frame for Wire Holder 1
28 Wiring Port 1
