10

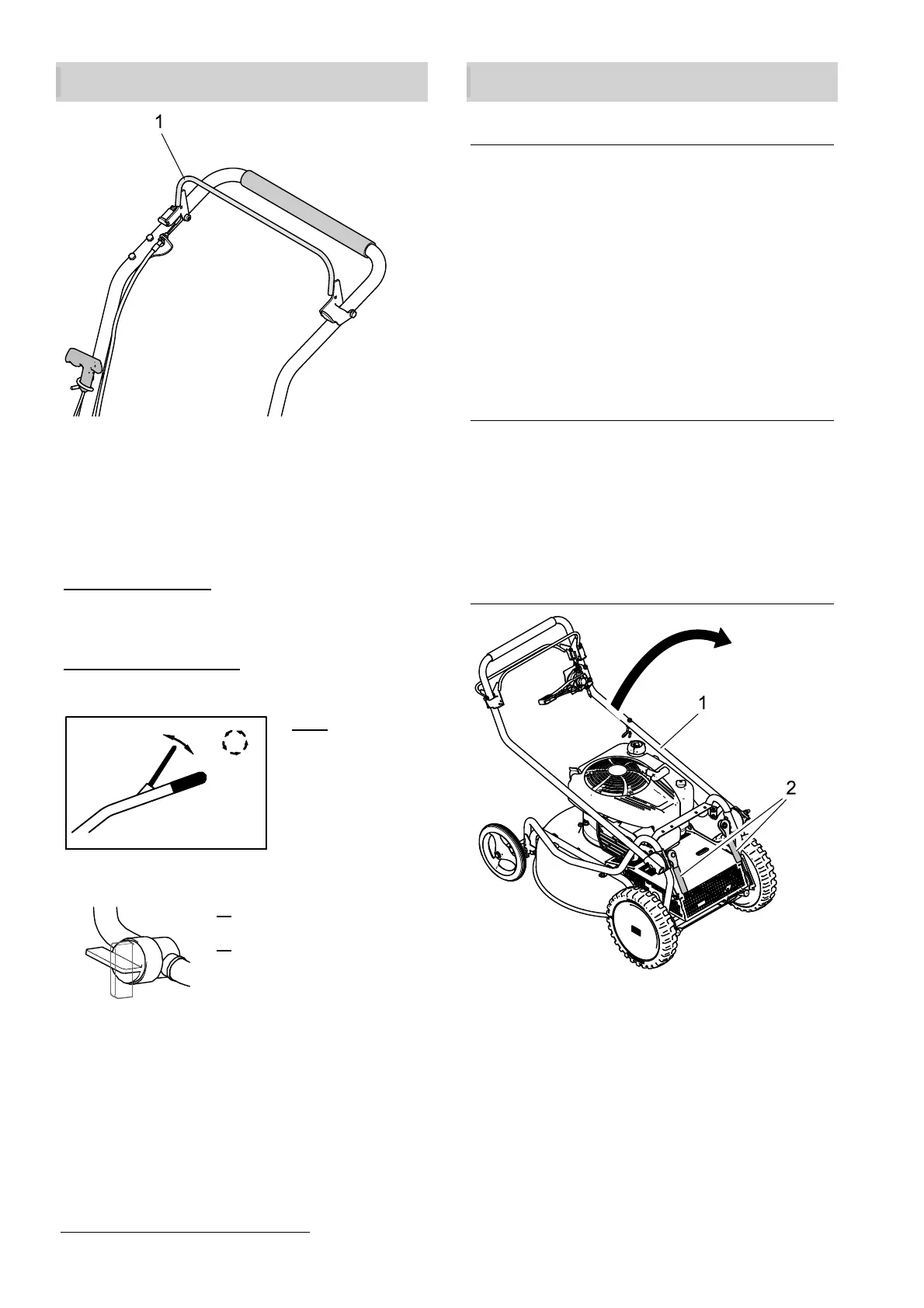

Control elements
Engine brake bar (1)
The engine brake bar is a protective device.
When you release the bar, the engine shuts
down immediately, the blade comes to a
standstill within 3 seconds.
Operating position:
Press the engine brake lever toward the
handlebar.
Turning off the engine:
Release the engine brake bar.
0
I
M
Top:
Engine brake
bar
Fuel valve
2
1
1:
Closed
2:
Open
Assembly
Scope of delivery
The device is delivered in a carton.
The scope of delivery includes:
The device.
These operating instructions.
Tool bag with small items.
Warranty card.
Operating instructions of the engine
manufacturer.
Unpacking
1. Remove the loose parts from the box.
2. Cut open the front side of the box.
3. Push the device out of the box.
Mounting guide bar and
handlebar
1. Move the guide bar (1) backwards.
2. Adjust the guide bar to the desired
height and tighten with the two eccentric
tension levers (2).
