For leveling, insert shims between the castor and the frame rail. Install the desired number of
shims. Make sure the slot of the shim is in contact with the threaded stem of thecastor.FIG.2
If more than one shim is used, turn the slot of the shim approximately 90 angles. If shims are
installed in line, they may slip out.
Turn the bearing race clockwise to tighten and secure the castor. Use provided tool to secure
all castors properly.FIG.3

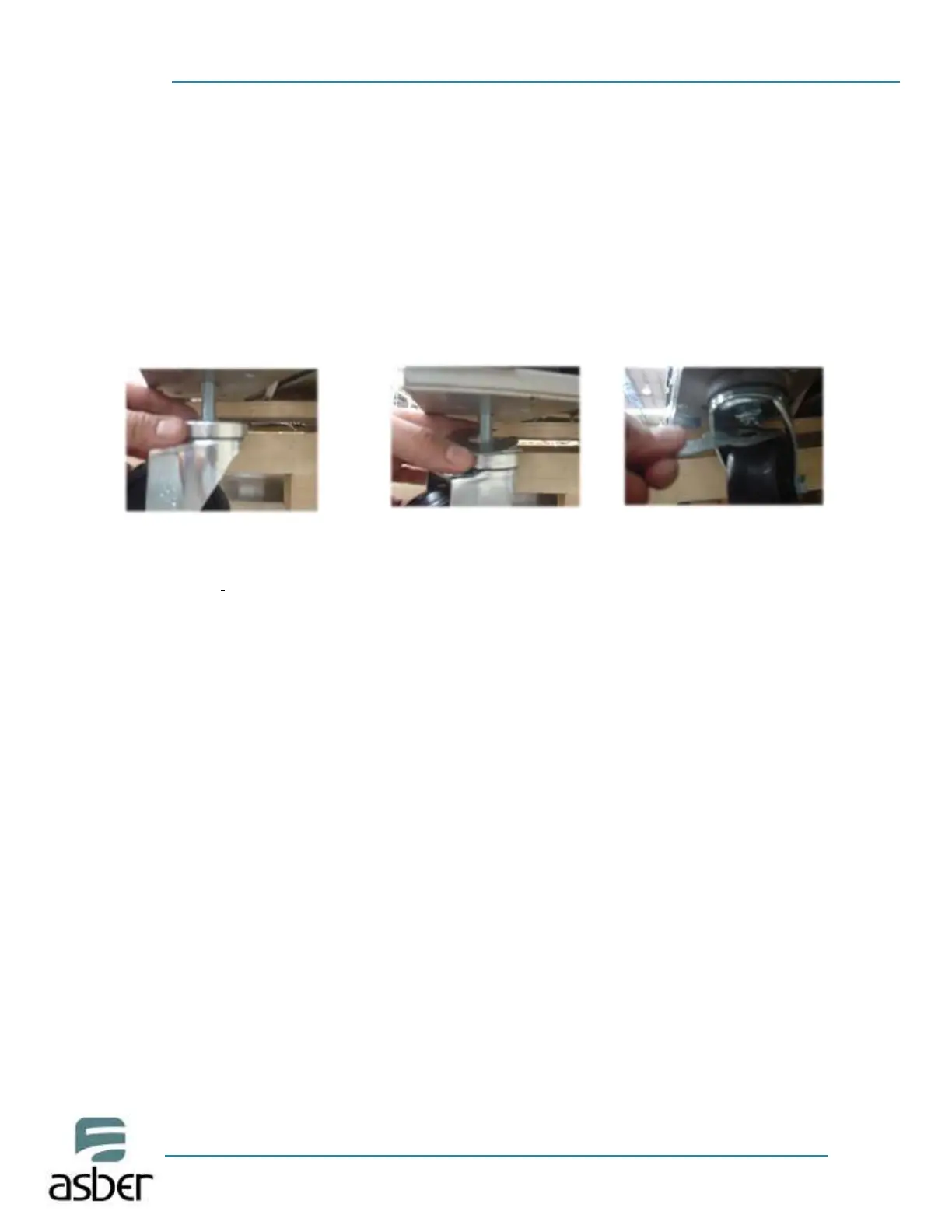

FIG.1 FIG.2 FIG.3
Optional legs are hand-tightened. Thread leg into cabinet bottom frame rail. The end of the leg
is adjustable for easy leveling.
Caution! To avoid damage to lower rail assembly, slowly raise unit to upright position.
Caution! When lifting unit remember to leave the cabinet up right for 24 hours before
plugging into power source. Failure to meet this requirement can cause compressor failure
and unit damage.
4.5 LEVELING
Set unit in its final location. A level cabinet looks better and will perform better. Effective
condensate removal and door operation will be effected by leveling. Machine must be leveled
front to back and side to side with a level tool. Castors ki t wi l l include shims for leveling.
Insert the shim between the castor and the frame rail. (See installation of castors). Lock front
castors so cabinet does not move. Ensure drain hose is inside drain pan.
