REACH-INS SERVICE MANUAL/Rev. JUN. 2015
4.7 SHELVING INSTALLATION
Hook shelf rails onto shelf pilasters
Position all shelf rails equal in distance from the floor for level shelves
Wire shelves are oriented so that cross support bars are facing down
Note: Single door Reach-include an air flow guard on the rear of the shelves as well as a lip to
maintain an air space at the rear of the cabinet
Place shelves on shelf clips, making sure all corners are seated properly.
5 OPERATION
5.1 ANALOG THERMOSTAT
Before y o u connect the unit to the power supply, verify the thermostat is NOT in the OFF
position (the position of the thermostat must be different than zero).If the thermostat is in
the OFF position, the compressor will not run. Keep in mind, the evaporator fan sand lights
will still have power while the thermostat is in the OFF position.
The knob of the thermostat is the temperature controller. T h i s is located inside the cabinet.
P
lease be sure that the knob of thermostat is pointing to the yellow arrow (figure # 3).This
position is recommended by the factory to assure correct function of the equipment (see the
figure #1 below).
Figure#1 Figure # 3
Note:
Keep in mind, if you move the knob to a different position that is recommend from factory, these temperature
will change, as well.
The knob position near the number one, gives you the warmest temperature and the knob position near the
number seven, gives you the coldest temperature.

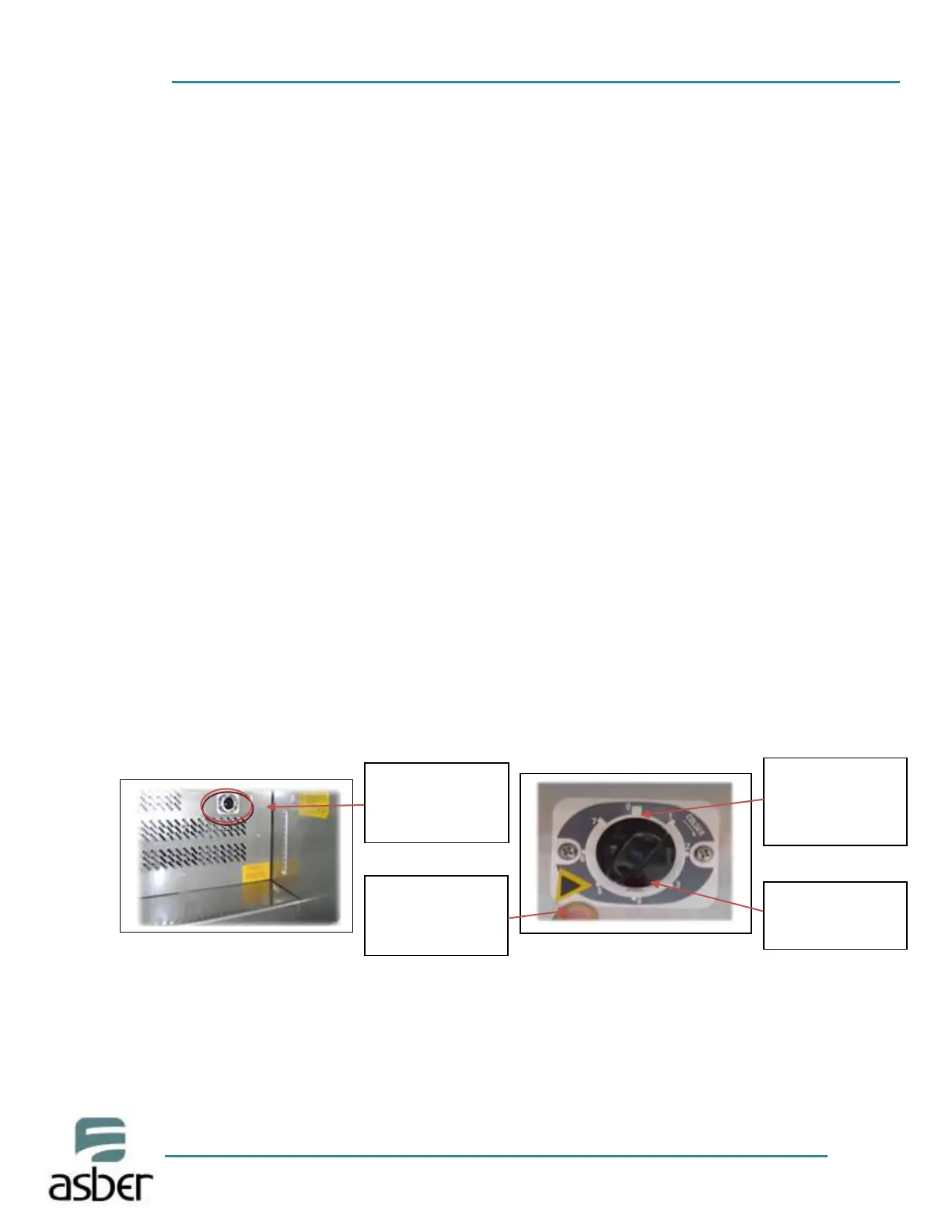

Thermostat
Located inside the
unit in the right side
Position thermostat
to zero (0),
compressor will not
work.
For best
performance knob
should be pointing
yellow mark
Knob to adjust
thermostat setting
