Asco RedHat 8314 Series - Torque Chart; Solonoid Base Sub-Assembly Torque

Page 3 of 3
50 Hanover Road, Florham Park, New Jersey 07932 www.ascovalve.com
I&M No.V7533
Torque Chart
Part Name Torque Value Inch-Pounds Torque Value Newton-Meters
solenoid base sub-assembly 175 ± 25 19,8 ± 2,8

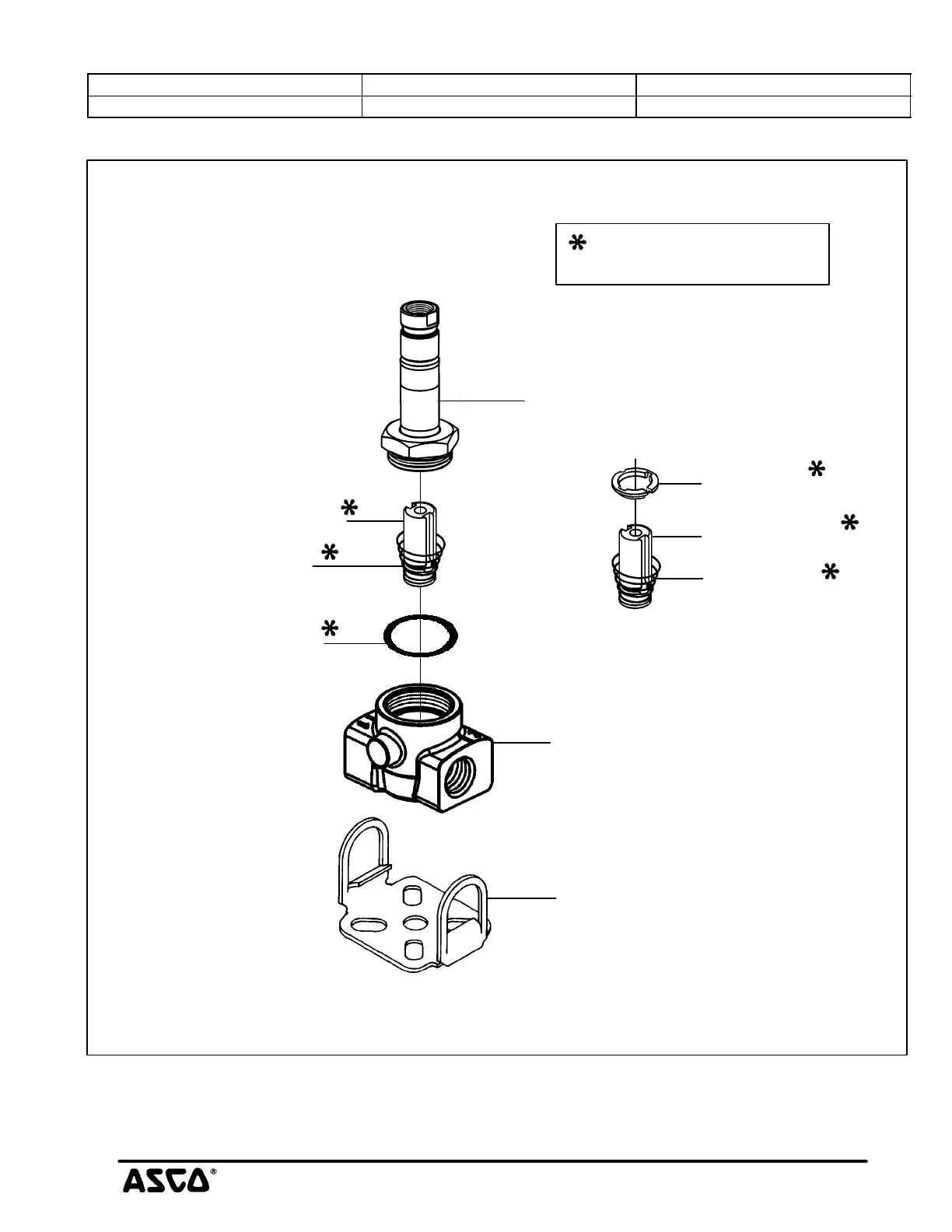

Figure 1. Series 8314 valve without solenoid
solenoid base
sub-assembly
Indicates parts supplied
in ASCO Rebuild Kit
core assembly
core spring
valve body
(1/4 NPT Shown)
body gasket
mounting bracket
(1/4 NPT only)
core assembly
core spring
core guide
View showing core guide
(not present on all
constructions)
