Ashford Jack - Page 6

6
M6 Barrel Nut
M6 X 16 Washer
M6 x 80 Hex Head Bolt

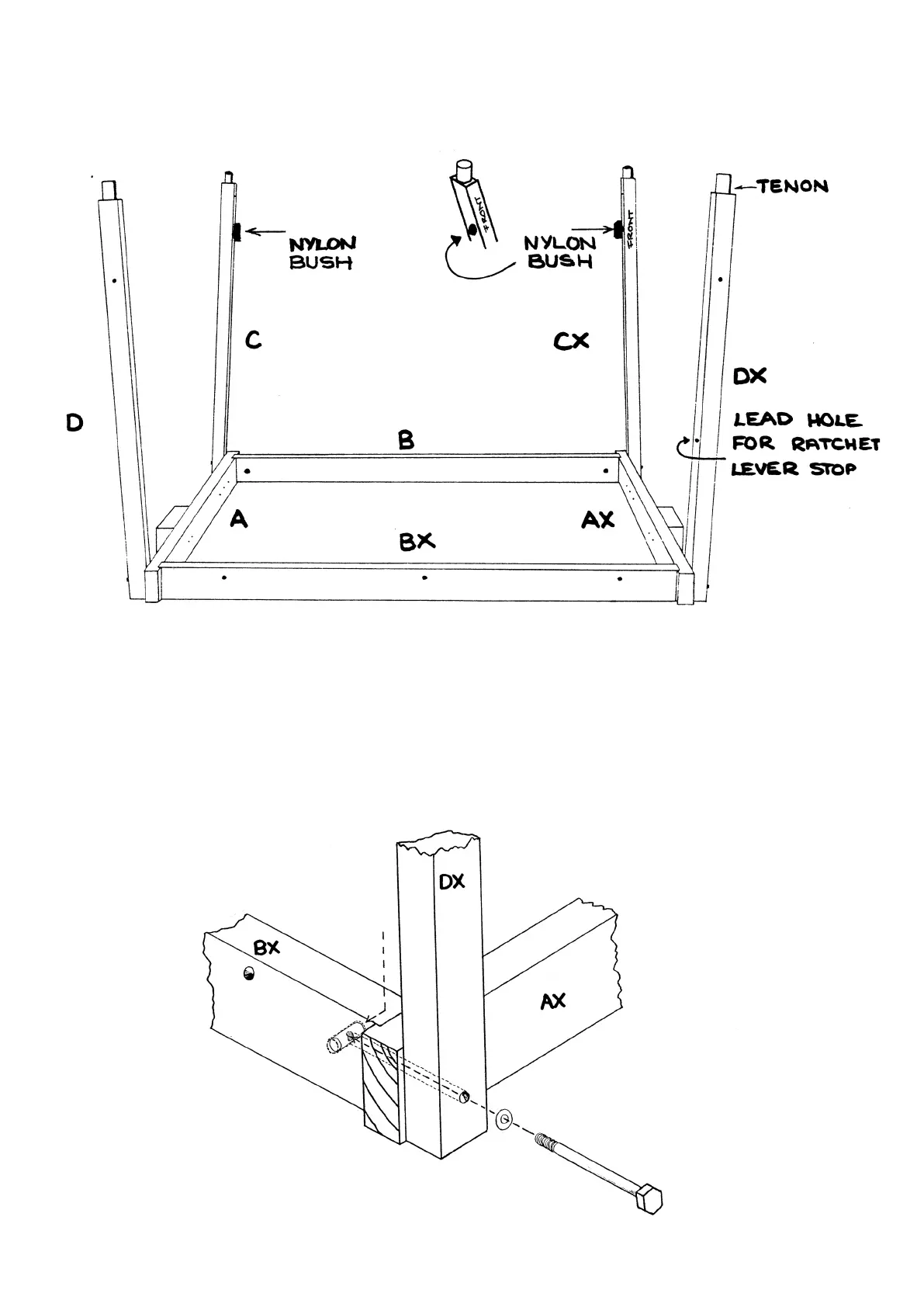

ASSEMBLY OF THE LOOM
1. Assemble the base using M6 x 80 Hex Head Bolt, M6 X 16 Washer and M6 Barrel Nut. Note the holes in rail BX are to the top.
Nylon bushes in parts C and CX are on the inside.
