Ashley AF1500E - Thermostatically Controlled Damper Installation

-10-

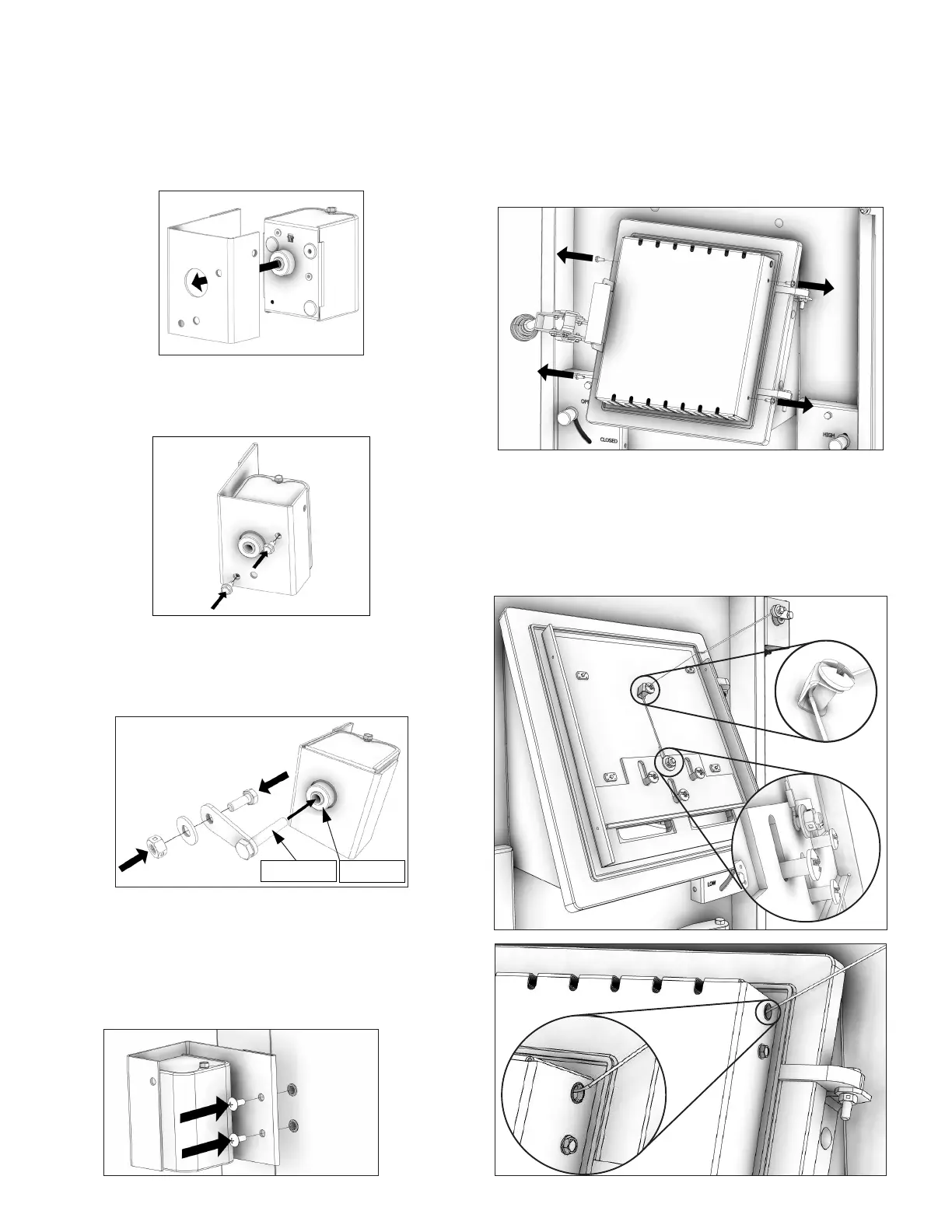

STEP 1
Slide the motorized draft actuator into the servo
bracket as shown.
STEP 2
Secure the motorized draft actuator to the servo
bracket using (2) two #10 X 1/2 screw.
STEP 3
Place (1) one 1/4-20 X 3/4 bolt into the servo arm and
secure with (1) one washer and (1) one 1/4-20 lock nut
as shown. Insert the servo arm into the actuator.
STEP 4
Attach the actuator to the unit by inserting (2) two 10-
24 X 1/2 screws into the pre-drilled holes located on
the upper right side of the unit. NOTE: The actuator will
need to be mounted fl ush against the stove. Insure the
actuator is mounted fl ush by removing the panel screw
before mounting the actuator.
STEP 5
Take off the cover by removing (4) four #10 X 1/2
screws. NOTE: Retain the (4) four #10 X 1/2 screws, they
are required for the following steps.
STEP 6
Loop the wire around the top center bolt of the slide
plate. Run the wire up and through the loop clamp,
then out of the hole found at the top right side of the
cover as shown. NOTE: Check the assembly to ensure
that everything moves smoothly and there is no binding.
Thermostatically Controlled Damper Installation
*CANADIAN RESIDENTS ARE REQUIRED TO USE THIS KIT FOR INSTALLATION.
Servo Arm
Actuator
