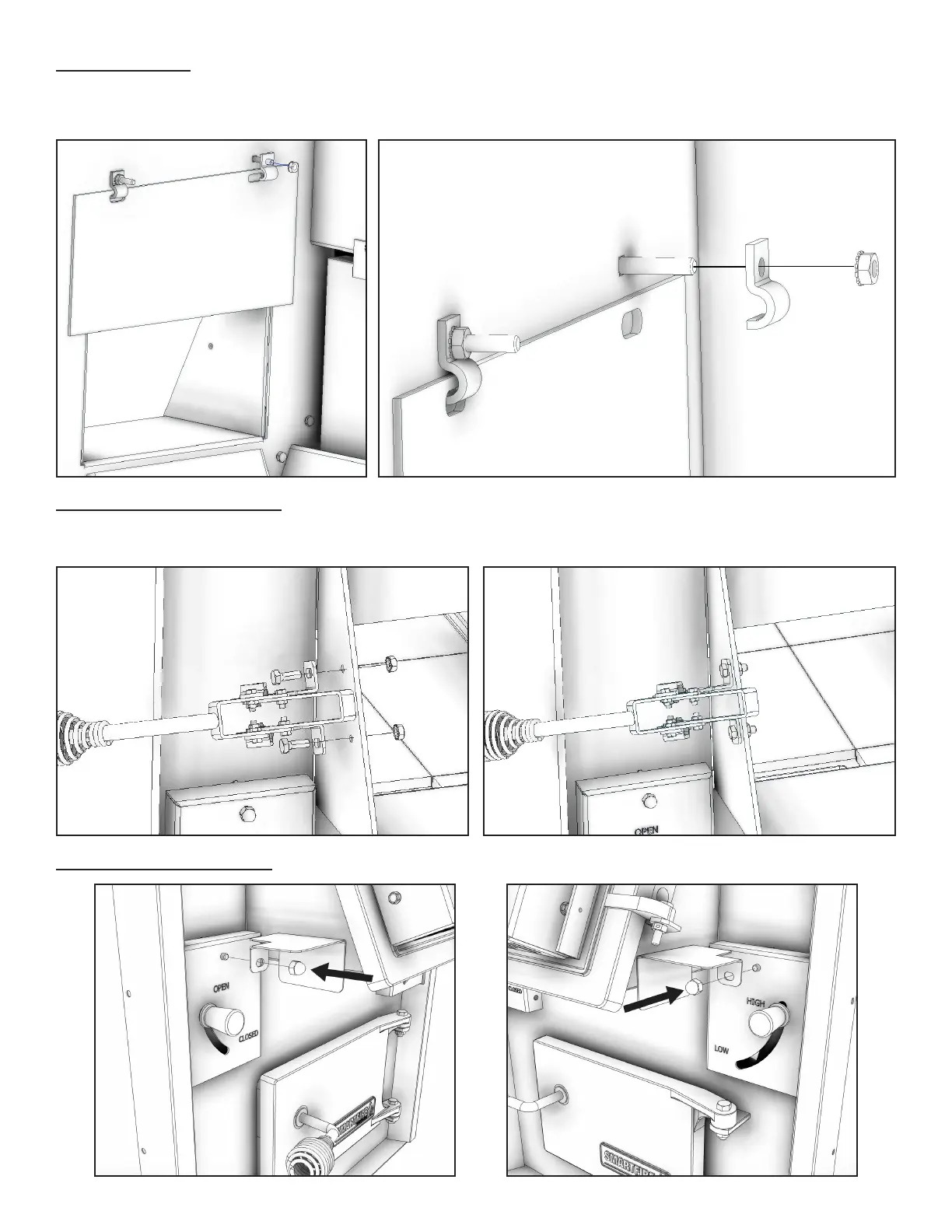

SMOKE CURTAIN
Using two 1/4-20 x 1-1/4” Carriage bolts, two smoke curtain clips, and two nuts, attach the smoke curtain in
place above the fuel feed door as shown. After installation, the smoke curtain should swing freely back into the
furnace.
DOOR LATCH INSTALLATION
Use the two included bolts and nuts to secure the handle to the stove as shown.
Note: Adjust the handle as needed to insure a proper seal.
HEAT SHIELD INSTALLATION
