Ashley AW1820E - Wiring Diagram; Blower Wiring and Safety; Ordering Repair Parts; How to Order Parts

18
© 2021 United States Stove Company
FEMALE
FEMALE
FEMALE
GREEN
WARNING! DO
NOT ROUTE THE
SUPPLY CORD
NEAR OR ACROSS
HOT SURFACES!
CAUTION!
THE BLOWER ASSEMBLY
MUST BE DISCONNECTED
FROM THE SOURCE OF
ELECTRICAL SUPPLY
BEFORE ATTEMPTING ANY
MAINTENANCE.
MALE
BLACK
BLACK
BLACK
WHITE
BLACK
WHITE
MALE
BLOWER
MOTOR
SUPPLY CORD
BLOWER
RHEOSTAT
ATTACH TO BACK OF
BLOWER HOUSING
MALE

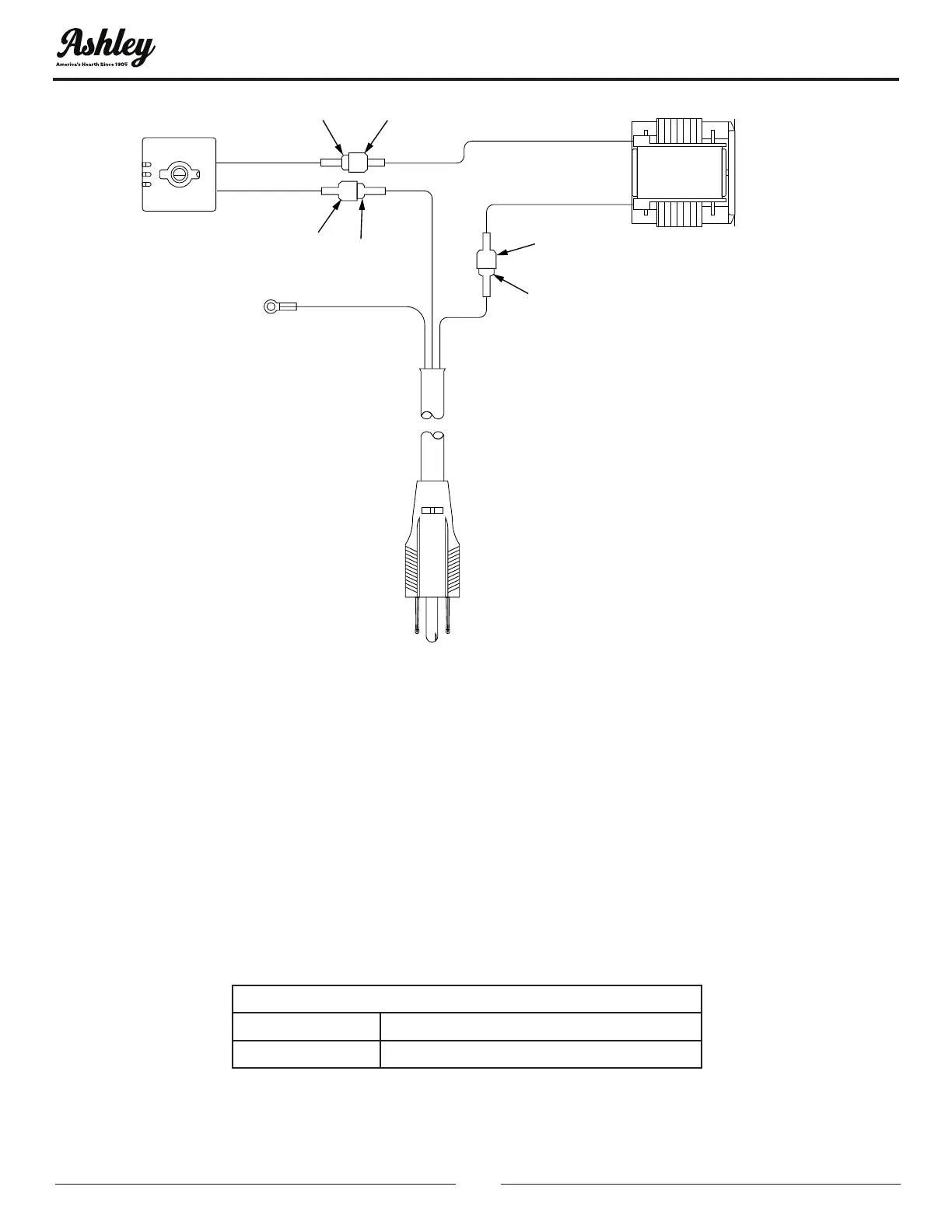

WIRING DIAGRAM
For Parts Assistance Call: 800-750-2723 Ext 5051 or Email: parts@usstove.com
The information in this owner’s manual is specic to your unit. When ordering replacement parts the
information in this manual will help to ensure the correct items are ordered. Before contacting customer
service write down the model number and the serial number of this unit. That information can be found on
the certication label attached to the back of the unit. Other information that may be needed would be the
part number and part description of the item(s) in question. Part numbers and descriptions can be found
in the “Repair Parts” section of this manual. Once this information has been gathered you can contact
customer service by phone 1-800-750-2723 Ext 5051 or Email parts@usstove.com.
Model Information
Model Number
Serial Number
HOW TO ORDER REPAIR PARTS
