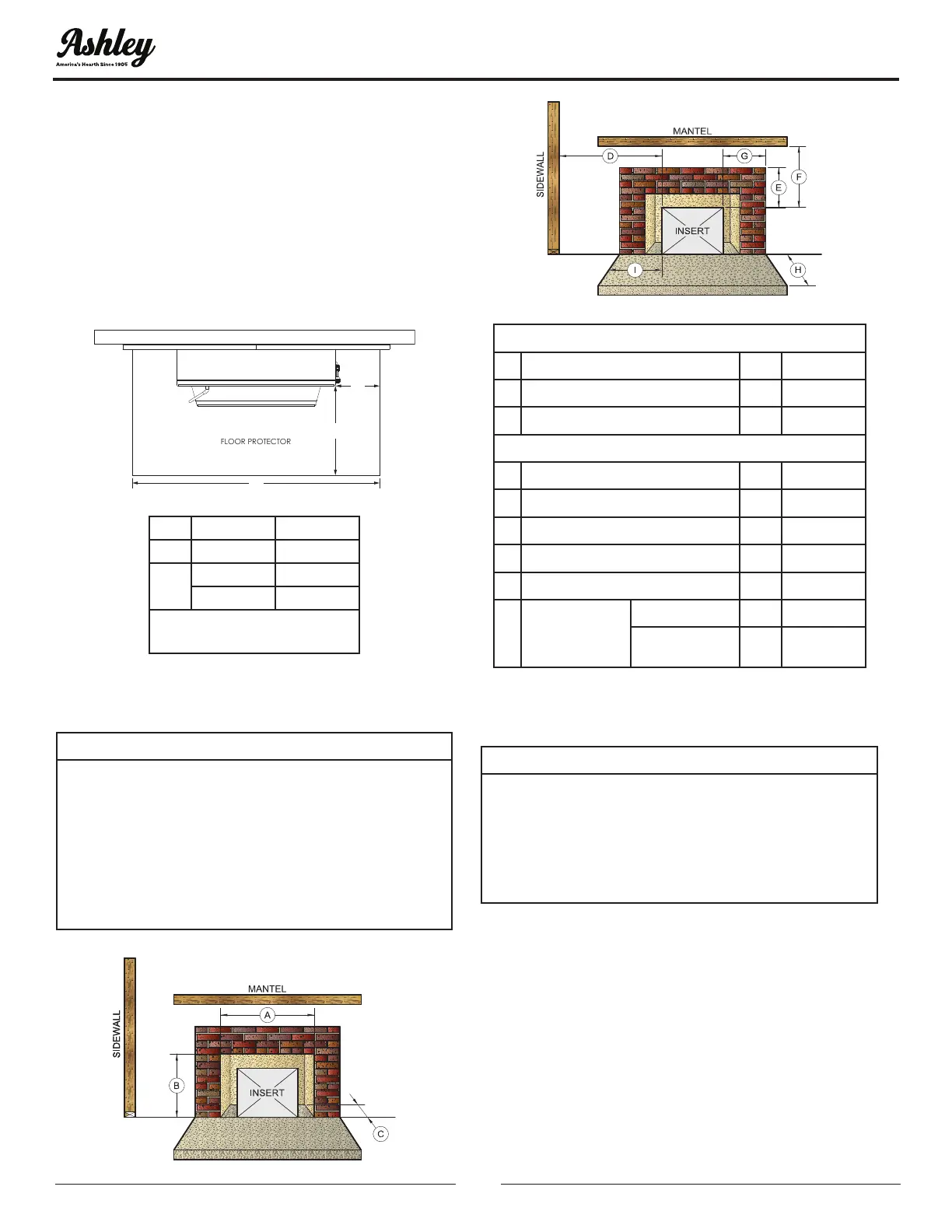

FLOOR PROTECTOR
A solid non-combustible oor, concrete or solid
masonry, must extend 6” (153 mm) to either side of
the body of the appliance and 17” (432 mm) in front
of the face of the appliance. When combustible
ooring falls within these minimum dimensions, it
must be covered with a listed oor protector, with
an R-Value of at least 1.4. Check local building codes
if you want to nish the oor covering with grouted
ceramic oor tile.
C
B
Minimum Floor Protector Specifications
A
FLOOR PROTECTOR
A 17” 432 mm
B *6” *153 mm
C
38” U.S.A. 966 mm
42” CAN. 1067 mm
* = Canadian installations
requires 8” (204 mm)
CLEARANCES TO COMBUSTIBLES
WARNING: RISK OF FIRE
OBSERVE THE MINIMUM CLEARANCES TO
COMBUSTIBLES STATED IN THIS MANUAL
AND ON THE LABELS ATTACHED TO THE
APPLIANCE. DO NOT STORE WOOD, ANY TYPE
OF FLAMMABLE VAPORS OR LIQUIDS, PLACE
FURNITURE, RUGS, CARPET, CLOTHING OR
OTHER COMBUSTIBLE OBJECTS WITHIN THE
CLEARANCE AREA.
Fireplace Opening Dimensions
A Minimum Width 29” 737 mm
B Minimum Height 23” 585 mm
C Minimum Depth 14” 356 mm
Clearance to Combustibles
D Min. Distance to Sidewall 9” 229 mm
E Min. Distance to Top Trim 14” 356 mm
F Min. Distance to Mantle 19” 483 mm
G Min. Distance to Side Trim 9” 229 mm
H Min. Floor Protector Front 17” 432 mm
I
Min. Floor
Protector
Side
USA 6” 153 mm
Canada 8” 204 mm
OUTSIDE COMBUSTION AIR
WARNING:
ALWAYS CONNECT THIS APPLIANCE TO A
CHIMNEY THAT VENTS TO THE OUTSIDE.
NEVER VENT INTO ANOTHER ROOM, CRAWL
SPACE, ATTIC, OR INSIDE A BUILDING. DO
NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVING ANOTHER APPLIANCE.
Your appliance itself does not create draft. Draft
is provided by the chimney. To help provide the
required draft there is a fresh air kit (4FAK) available
for purchase from your local stove dealer. When
installed properly the 4FAK kit is designed to
provide the draft needed for proper operation. To
achieve proper draft your chimney must meet the
three minimum height requirements (see masonry
chimney section of this manual). A minimum draft
of 0.05 w.c. (measured in water column) is required
for proper drafting to prevent back pufng, smoke
