ASSEMBLY INSTRUCTIONS
ASSEMBLE THE SURROUND
a
q
b
f
e
g
h
c
d
j
k
m
n
p

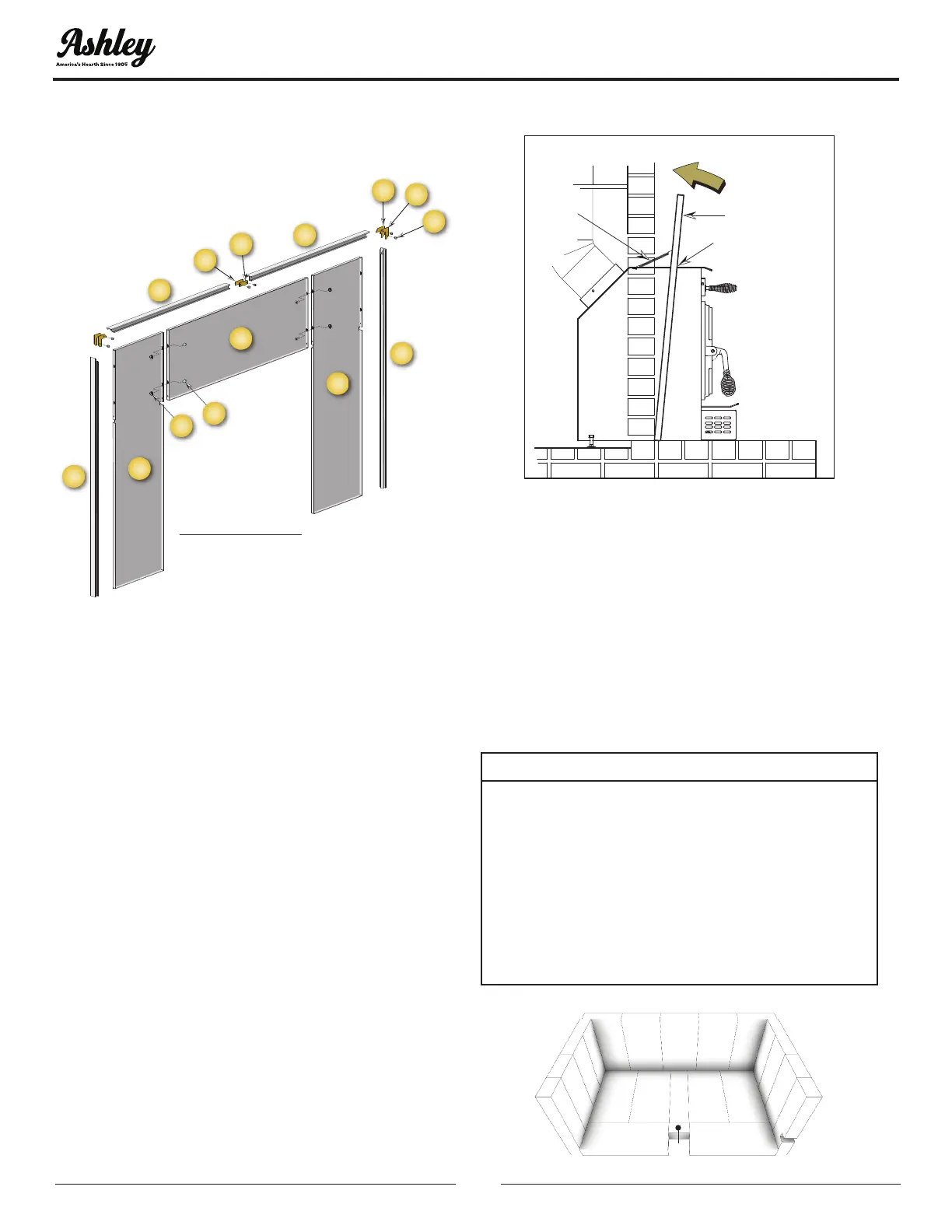

SURROUND ASSEMBLY
VIEW FROM BACK
1. Lay pieces face down on carpet or other soft
surface to protect nish during assembly. The
Surround consists of two side panels, a top
panel, and a decorative trim frame.
2. Bolt the top panel (a) to the side panels (b &
q) so the top surfaces are ush to one another
using items c and d.
3. Assemble the trim frame. The trim consists of
a left (f) and right (e) side piece and a split top
piece (left h, right g). These are joined by corner
connectors (m,n,&p) and two straight center
connectors (j&k). These slide into the channel
on the back of the frame and are secured with
two set screws (p) in each piece.
4. The trim slides over the surround assembly
and is secured at the base of each side with a
machine screw.
5. The Surround Assembly is then slid over
the appliance. Slots in the two side panels
accommodate the hood at the top of the
appliance. The surround assembly is held in
place with two springs at the top of either
corner of the appliance.
SPRING
SURROUND
Slots in surround
slide of rebox top
Figure 6. Surround Installation
6. Connect power cord of blower to grounded
receptacle.
7. Firebrick extends the life of your stove and
radiates heat more evenly. If rebricks were
removed to position appliance, replace them
before ring appliance. See illustration for
proper orientation and positioning. Install the
back row rst, then sides and nally install
bottom rebricks.
FIREBRICK INSTALLATION
CAUTION: RISK OF FIRE!
• REPLACE FIREBRICKS BEFORE FIRING
WOODSTOVE. POSITION FIREBRICKS SO
NO GAPS REMAIN BETWEEN BRICKS.
• NEVER OPERATE THIS APPLIANCE WITH
MISSING OR CRACKED FIREBRICK.
• KEEP FURNISHINGS AND OTHER
COMBUSTIBLE MATERIALS AWAY FROM
THE STOVE AND OUTSIDE MINIMUM
CLEARANCES.
