ASKO DISHWASHER
Attaching Side Fill Strips
1. If you are installing the dishwasher with the side fill strips, you must remove the
insulation strips. These are the black sponge strips attached to the front edge of the
tank, from top to bottom. To remove them, simply grip the top or bottom edge and pull
it away from the tank, as illustrated in Figure 6.
2. The trim strip has multiple mounting holes. Align the largest hole with the same size
hole on the side of the dishwasher, as illustrated in Figure 7. (This hole is used when
you anchor the dishwasher to the cabinet.)
3. Keeping the trim strip aligned with the holes, open the dishwasher door and secure it
to the dishwasher with the screws provided, as illustrated in Figure 8. (The screw head
should be inside the tank.)
4. When anchoring the dishwasher to the cabinet, height adjustments is essential to
properly align the panel with the cabinet facings.
NOTES:
Be sure to order a side fill strip for each side (left and right).
The unit will accept various sized panels. Refer to the dishwasher specifications before
building the panel so it will correctly align with the cabinet facings.
If a four-inch toe kick is used, the unit must be installed at its lowest height. (The
dishwasher is delivered at its lowest height.) On four-inch toe kick installations, the
one-piece door panel will extend past the top of the control panel approximately 1-3/4".

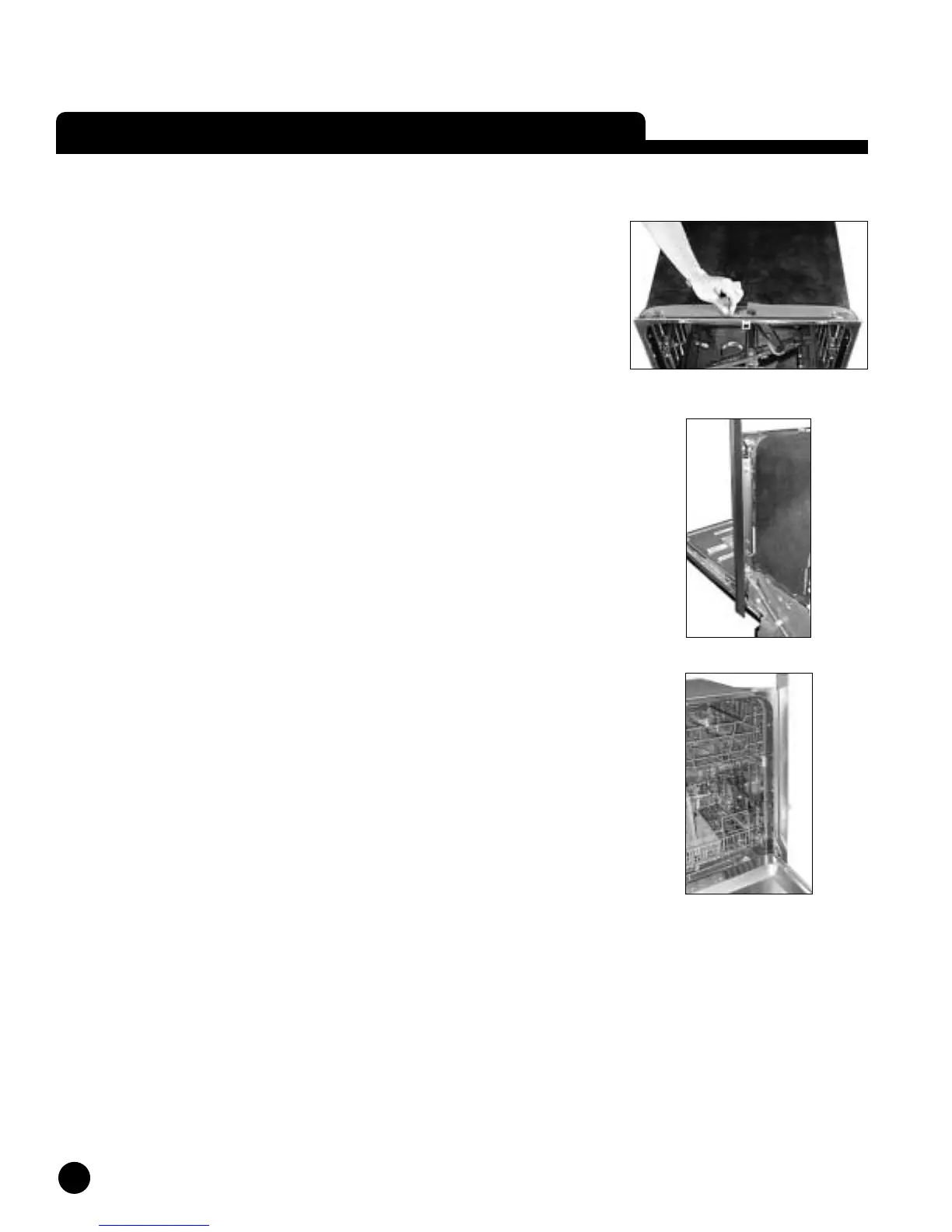

Figure 6.
Figure 8.
FILL STRIPS INSTALLATION INSTRUCTIONS
Figure 7.
To Next Page
