When the drying cabinet is permanently con-
nected to the evacuation duct, the whole room
is ventilated by way of the drying cabinet.
The exhaust air duct valve is replaced by an
insert (not included).
See also the section ’Connect Ventilation’
page 18.
Do not assemble the valve, which may
already exist in the building in the
ventilation system, inside the drying
cabinet.

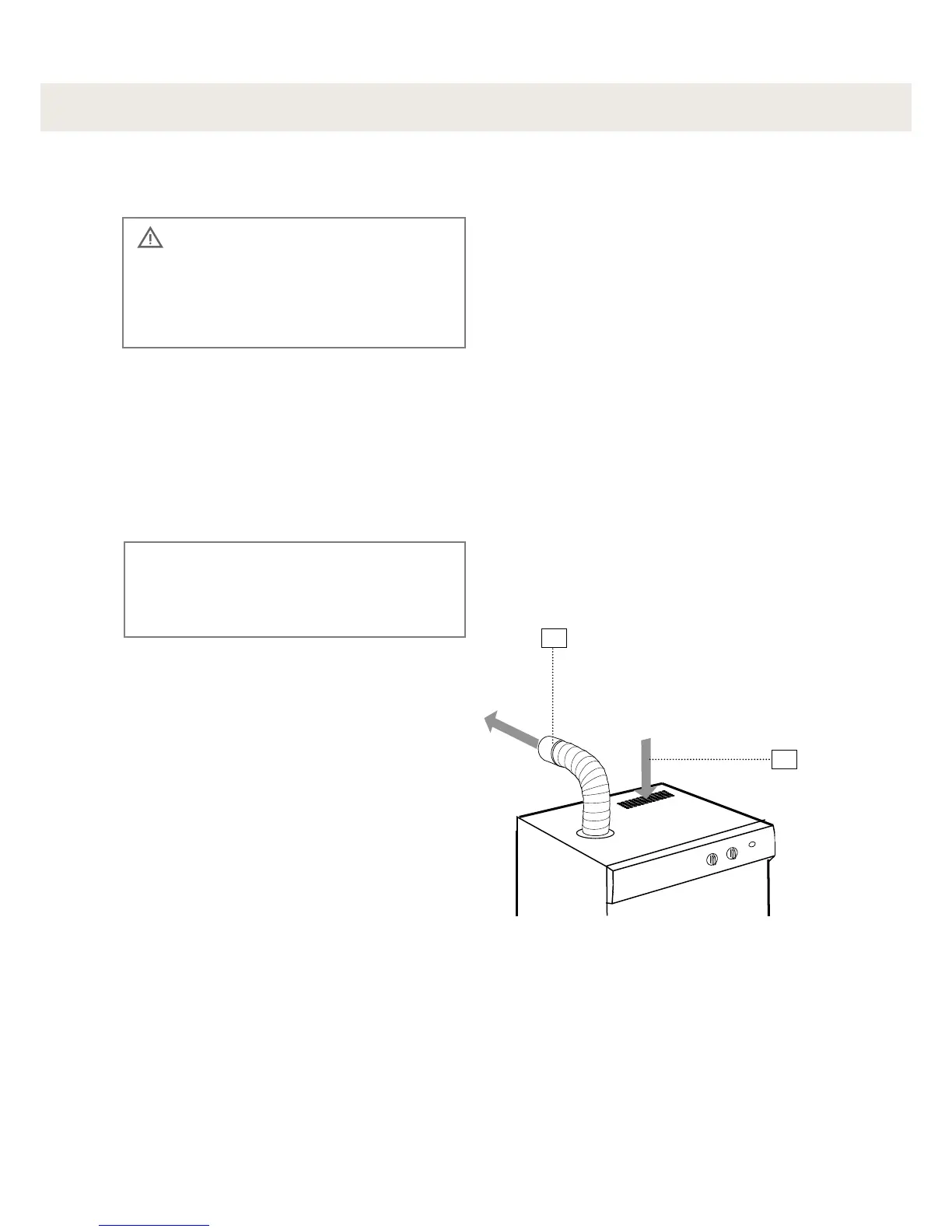

1. Insert
2. Air intake
The drying cabinet permanently installed and
connected to the evacuation duct
Permanently installed and connected to the evacuation duct (only
certain markets)
Only the evacuation hose delivered
with the cabinet must be used. (For
the markets where such an article is
included)
