Connection to the evacuation
duct
The drying cabinet must not be connect-
ed to a fireplace chimney
ATTENTION
When the cabinet is in use, 45 m³ of humid
air is evacuated per hour. Make sure that
moised air is vented and fresh air can freely
replace the humid air given off by the drying
cabinet.
With a draught limiter
The exhaust air duct valve is replaced by a
draught limiter (included in the delivery).
See also the section ’Connect Ventilation’
page 18.
Do not assemble the valve, which may
already exist in the building in the
ventilation system, inside the drying
cabinet.

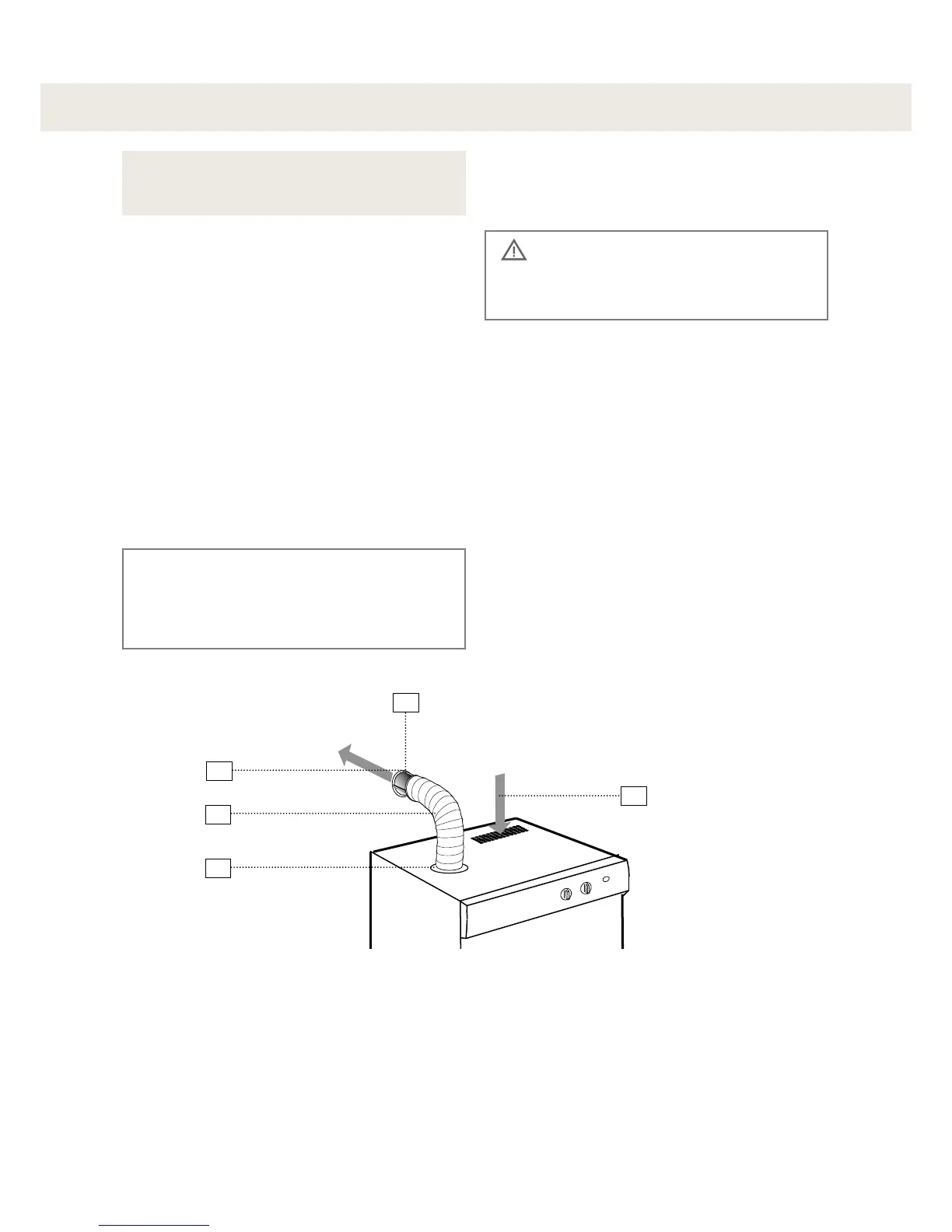

The drying cabinet can be connected to the evacuation duct in two ways:
1. Humid air out
2. Hose
3. Sleeve coupling
4. Draught limiter
5. Air intake
The drying cabinet is connected to the
evacuation duct with a draught limiter
