MPS-Series – Installation Guide
U-0664-0174.doc – Issue: 07 complete, approved
Page 16 of 24
14. Fist microphone: fix the fist microphone retaining clip (supplied) to the wall next to the microphone
case.
15. Gooseneck microphone: fit the foam windshield to the microphone capsule housing; see Figure 14
(page 16).

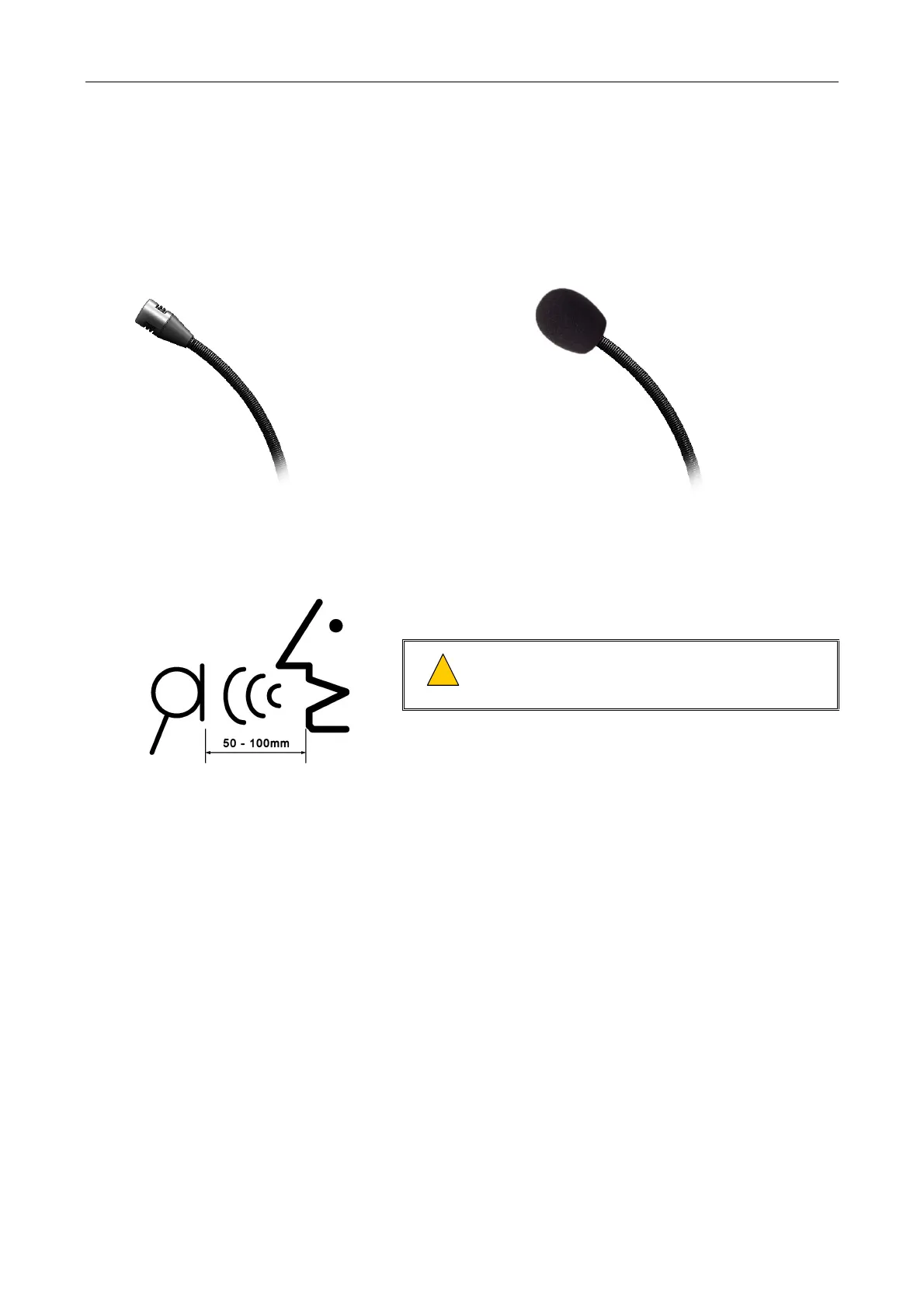

Figure 14 Fitting the foam windshield
Microphone capsule housing
without foam windshield
Microphone capsule housing
with foam windshield fitted
16. If the MPS microphone is to be used as an Emergency Microphone, place the supplied pictogram
label adjacent to the microphone; see example in Figure 15 (page 16).
Figure 15 Example of pictogram label
!
!
BS5839-8 requires the pictogram label to be placed so
that it is clearly visible to any person operating the
microphone.
17. The installation is now complete and ready for system commissioning.
