MPS-Series – Installation Guide
U-0664-0174.doc – Issue: 07 complete, approved
Page 9 of 24
3.3 Recommended Installation Procedure
!
!
Please read and observe the safety information guidelines available on the product and in Section
“6 Safety and Precautions” (page 23) prior to installation. Failure to follow these guidelines may cause
personal injury and/or damage to the equipment.
3.3.1 Desktop Installation Procedure
1. Connect the installation wiring to the wall socket connector(s) to suit the installation requirements of
the specific location.
Refer to Section “4 Connections” (page 18) for connection details.
2. Insert the completed button identification label into the label slot as required; see Figure 2 (page 9).

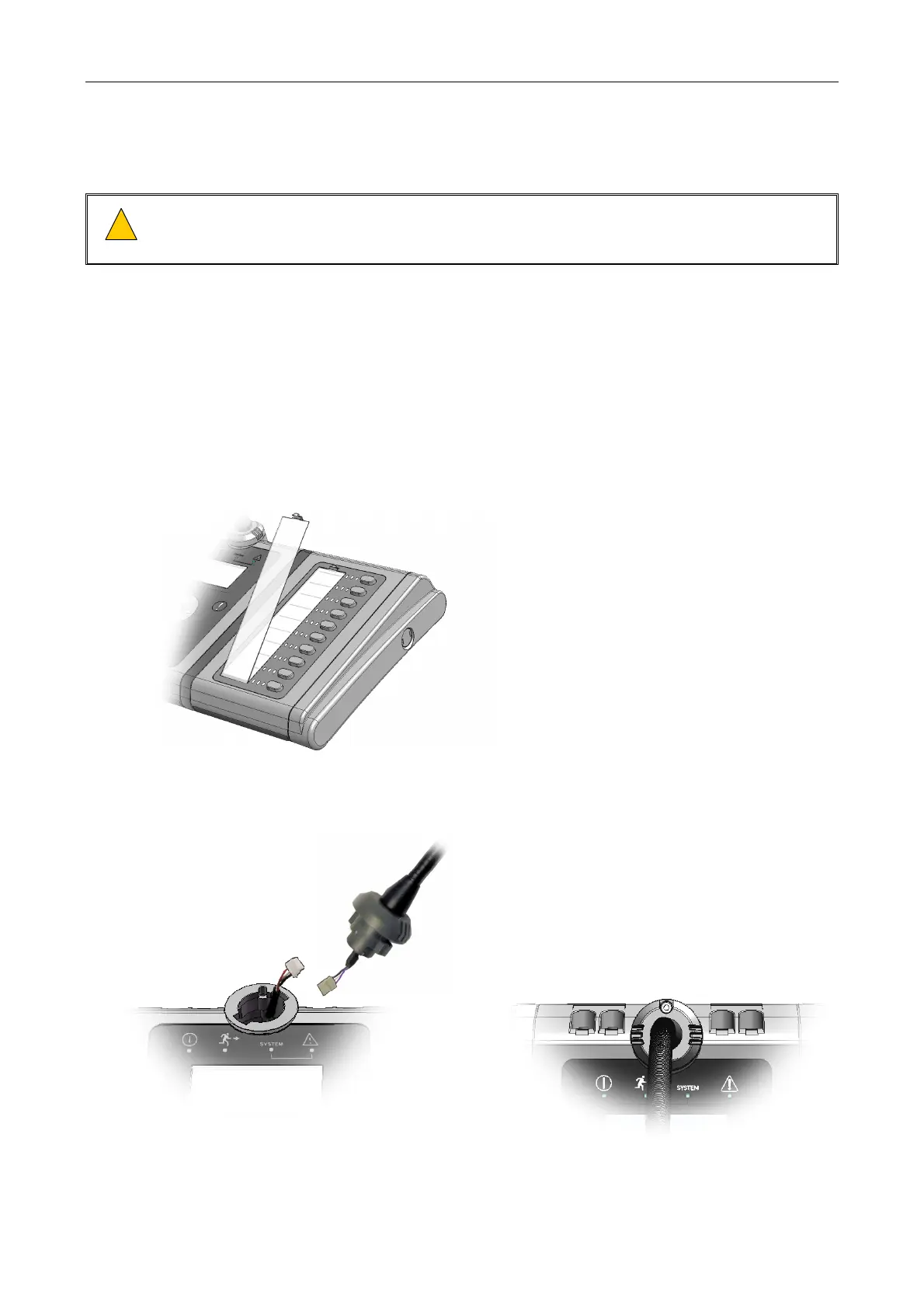

Figure 2 Fitting the zone identification label
1)
Remove the label protection cover by pressing in
on the plastic clip and lifting the cover off.
2)
Fit the zone identification label into the slot.
3)
Fit the label protection cover back in place.
(MPS10 shown as example)
3. If not fitted, fit the gooseneck or fist microphone to the microphone case; see Figure 3 (page 9).
Figure 3 Fitting the microphone to the microphone base
1)
Connect the flying lead(s) from the
gooseneck (or fist) microphone to
the appropriate connector(s) on the
lead(s) coming out of the
microphone base.
(Gooseneck microphone shown as example)
2)
Carefully insert the microphone holder into the
hole on the microphone case.
3)
Twist the microphone holder clockwise until the
screw hole is aligned with the fixing hole on the
microphone case.
4)
Secure the microphone using the M3 hex screw
(15 mm) and Allen key (2.5 mm) provided.
4. Remove the bottom cover by undoing 2 x M4 screws (Pan Head Pozidriv, 15 mm length), and
configure the microphone as required; see Figure 16 (page 17).
