ASL INTERCOM VAR8 Installation Guide

VAR8 / Variants - Installation Guide

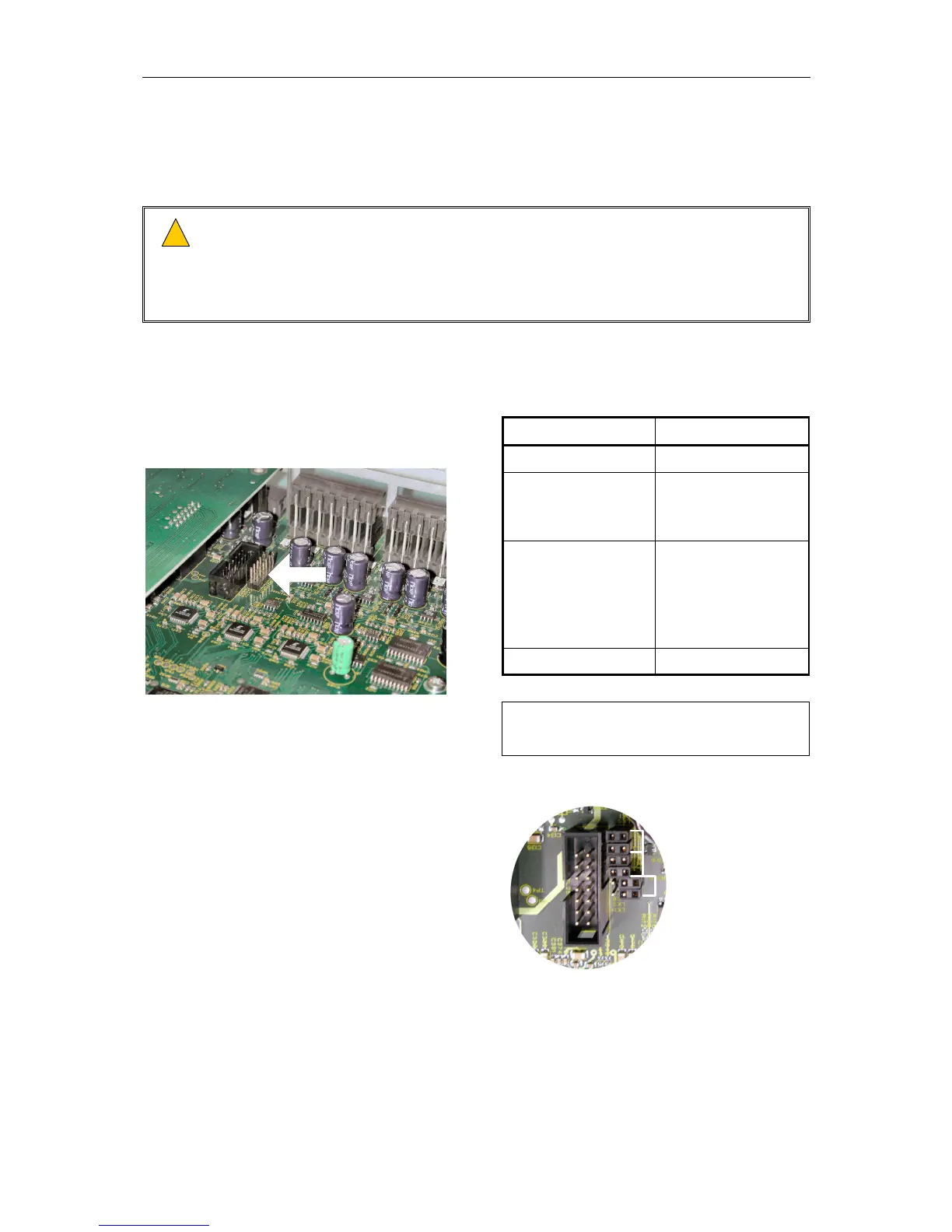

1.3 Link Settings for Stand-Alone, 1 or 2 Channel Only Network
Operation
• This procedure is required when the VAR8 is fitted with an ANIC8 Network Interface
Card, and stand-alone operation, or 1 or 2 network channel only operation is required
instead of the default 3 channel network operation.
• If any difficult is found in accessing the links, then please refer to Application Solutions
Limited.
!
!
2. Configure the links as follow:
1. Remove the unit’s lid by undoing the
screws located on the top of the unit.
Operation Links
Stand-alone No links fitted
1 Channel only CH1 – both fitted
CH2 – both not fitted
CH3 – both not fitted
2 Channels only CH1 – both fitted
CH2 – both fitted
CH3 – both not fitted
Shown in the
following example.
3 Channels (default) All links fitted
The link position is shown in the next
figure.
LINKS
NETWORK CARD
REAR PANEL
ROUTER BOARD
L
Unfit the jumpers as shown in the
next figure, to avoid losing them.
LINK SETTING EXAMPLE
CH3 - NOT FITTED
CH2 - FITTED
CH1 - FITTED
3. Refit the lid.
Issue: 01 complete, approved
Page 11 of 22
