Priming
NOTE: If spraying lacquers, purchase Lacquer Con-
version Kit 248202, and follow all Priming
procedures for oil–based materials.
Oil–based or Water–based Materials

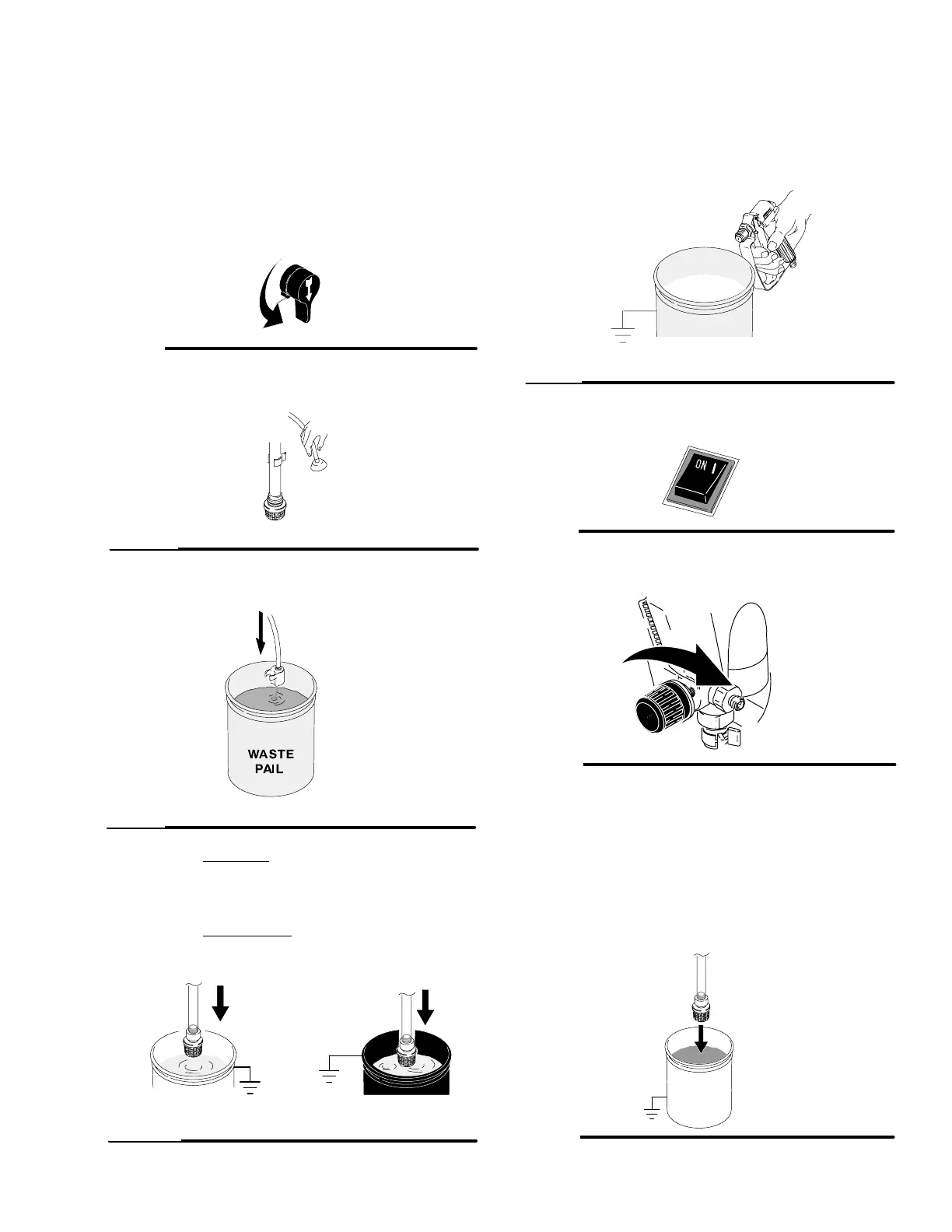

1. Turn Spray/Prime valve to PRIME.
Fig. 11
PRIME
2. Separate prime tube (smaller) from suction tube
(larger).
Fig. 12
prime
tube
suction
tube
3. Place prime tube in waste pail.
Fig. 13
4. If spraying oil–based materials, submerge suction
tube in mineral spirits or compatible oil–based
cleaning solution.
If spraying water–based materials, submerge
suction tube in water.
Fig. 14
Mineral Spirits
WATER
OR
5. Plug sprayer into grounded outlet.
6. Point gun into waste pail.
Fig. 15
WASTE
ti6913a
7. Turn power switch ON.
Fig. 16
8. Turn up pressure control knob until pump starts.
Fig. 17
ti6906a
9. Allow fluid to flow out of prime tube, into waste
pail, for 30 to 60 seconds.
10. Turn power switch OFF.
11. Submerge suction tube in paint.
Fig. 18
PAINT
To Next Page
