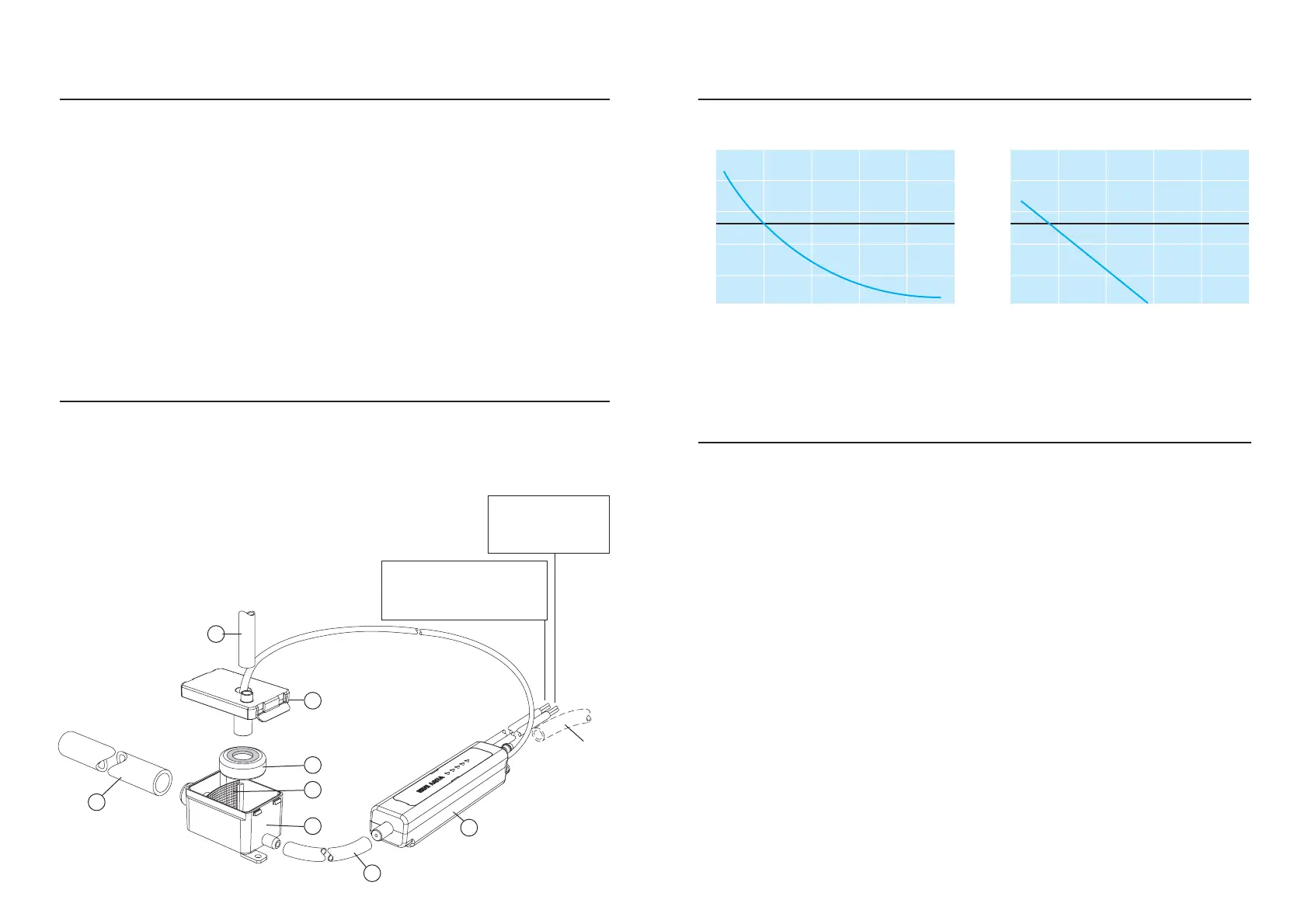

Typical Performance
Product Safety
•
CAUTION:
The Mini Aqua Pump has been evaluated for use with water only.
•
WARNING:
Risk of electric shock - this pump has not been investigated for use in
swimming pool or marine areas.
•
The means for isolation must be incorporated in the fixed wiring in accordance with
wiring regulations.
•
Ensure the pump is disconnected from the mains supply before carrying out any
adjustments or servicing.
•
The supply cord cannot be replaced. If the cord is damaged the appliance should
be scrapped.
•
Always ensure the metal magnet in the float is facing upwards.
•
Always ensure the reservoir is sitting flat and horizontal.
•
The pump is ideal for most working and living environments. It is not recommended
where the environment is oily or particularly dusty.
•
Acceptable for indoor use only.
•
Non-submersible pump.
15
12
9
6
3
0
0 3 6 9 12 15
LITRES PER HOUR
METRES HEAD
WE RECOMMEND USING THIS PUMP FOR
NO GREATER THAN 8m HEAD
WITH NO SUCTION LIFT
15
12
9
6
3
0
0 3 6 9 12 15
LITRES PER HOUR
METRES HEAD
WE RECOMMEND USING THIS PUMP FOR
NO GREATER THAN 8m HEAD
WITH CONSTANT 1 METRE SUCTION LIFT
Technical Data
•
Power supply 220-240V AC < 15W
Alternative voltages available
•
1PH 50/60 Hz
•
3A volt-free alarm wires,
N.O., N.C. contacts rated
@ 5A inductive at 220-240V AC
•
Non-continuously rated - operating time:
5 mins on / 5 mins off
•
Hall effect semi conductor level sensors
•
Water flow rate: 14 litres per hr
at zero head (non-continuously rated)
•
Maximum water temperature: 40ºC
•
Maximum recommended head: 8 metres
•
21dB(A) @ 1 metre
•
Gravity inlet
•
Suction lift: 1 metre
•
Discharge tube: 6mm I/D
•
CE marked
•
Thermally protected pump
•
Fully potted
In the box
Remove the pump from its packaging and
check that you have all the following items
provided in the box:
1. 1 x Mini Aqua pump unit (165 x 28 x 28mm)
2. 1 x assembled reservoir (40 x 80 x 41mm)
a. lid (with sensor cable to pump unit)
b. float
c. filter
d. reservoir
3. 1 x 22cm x 19mm O/D
x 14mm I/D inlet hose
4. 1 x 15cm x 9mm O/D
x 6mm I/D vinyl tube
5. 1 x 1.5m x 9mmO/D x 6mm I/D vinyl tube
6. 2 x 20mm x 50mm self-adhesive velcro
7. 4 x 300mm x 3.6mm cable ties
8. 2 x 140mm x
3.6mm cable ties
* You will also
need a length of
9mm O/D x 6mm I/D
vinyl tube from the
pump outlet barb
to the drain.
1 2
ALARM / VOLT FREE
COMMON: Grey
NORMALLY CONNECTED: Purple
NORMALLY OPEN: Orange
1
4
3
5
2a
2b
2c
2d
*
POWER:
EARTH: Green/Yellow
LIVE: Brown
NEUTRAL: Blue
