5 6
Installation

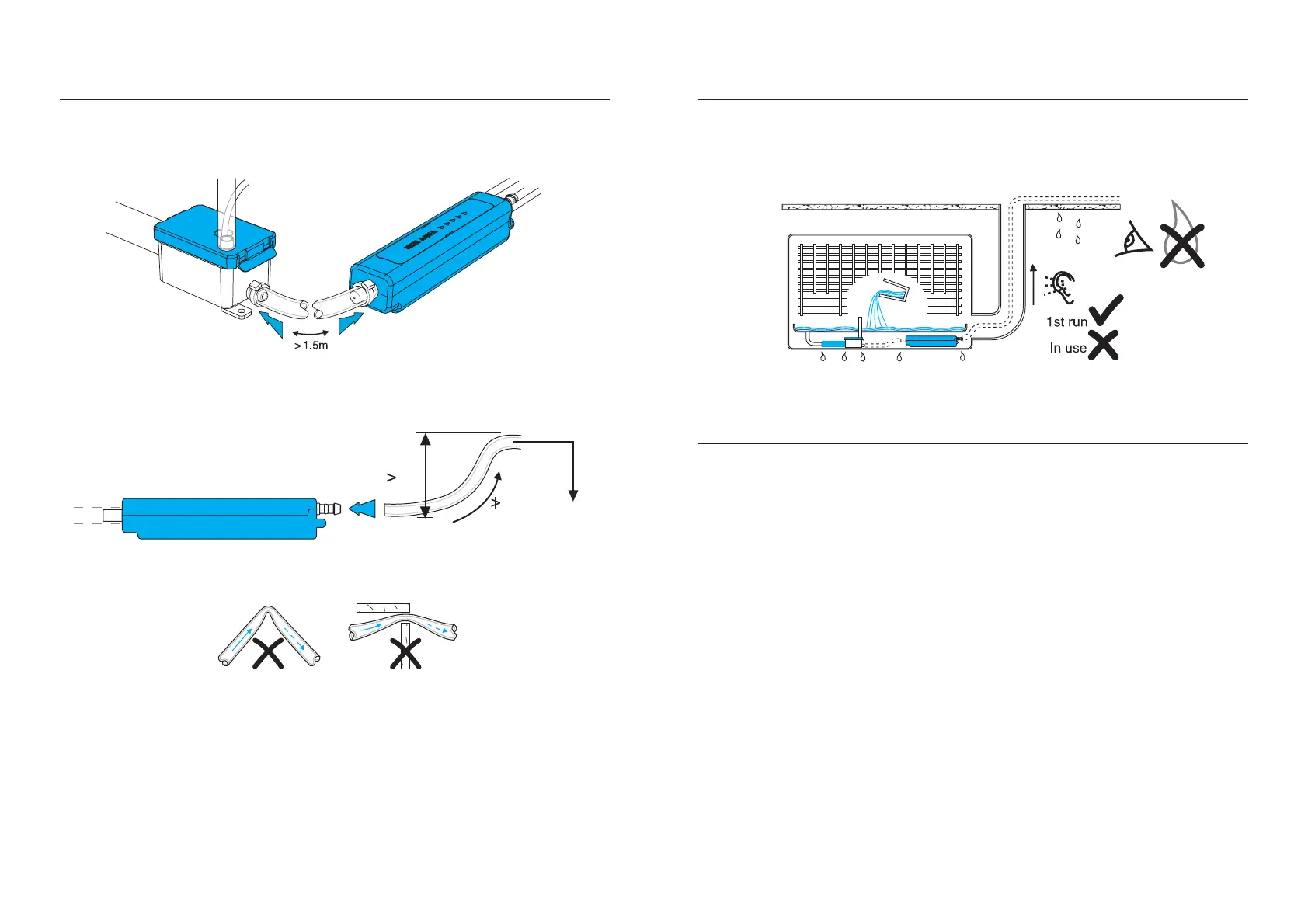

Push the 9mm o/d x 6mm i/d tube onto the reservoir and the pump. Secure with
cable-ties. Ensure length is under 1.5 metres.
7
Wire the Mini Aqua Pump to the permanent Live, Neutral and Earth terminals of
the Evaporator. Install a 1.0 amp in-line fuse between the Mini Aqua Pump and
the Evaporator. A high-level alarm switch should be wired into the cooling signal
wire, to prevent the continued operation of the Air-conditioning unit in the event
of the pump failing. These are volt-free contacts and operate as follows:
COMMON AND NORMALLY CLOSED when the water rises to the alarm level the
circuit opens.
COMMON AND NORMALLY OPEN when the water rises to the alarm level the
circuit closes.
10
Avoid restrictions.
9
Connect your 9mm o/d x 6mm i/d vinyl discharge tube to the outlet barb on the Mini
Aqua and secure with a cable tie. Channel discharge tube to an appropriate drain.
8
APPROPRIATE
DRAIN
8m
25m
TEST pump operation by pouring water into evaporator tray. Check for leaks.
11
Installation
Notes
FALSE CEILING
