10

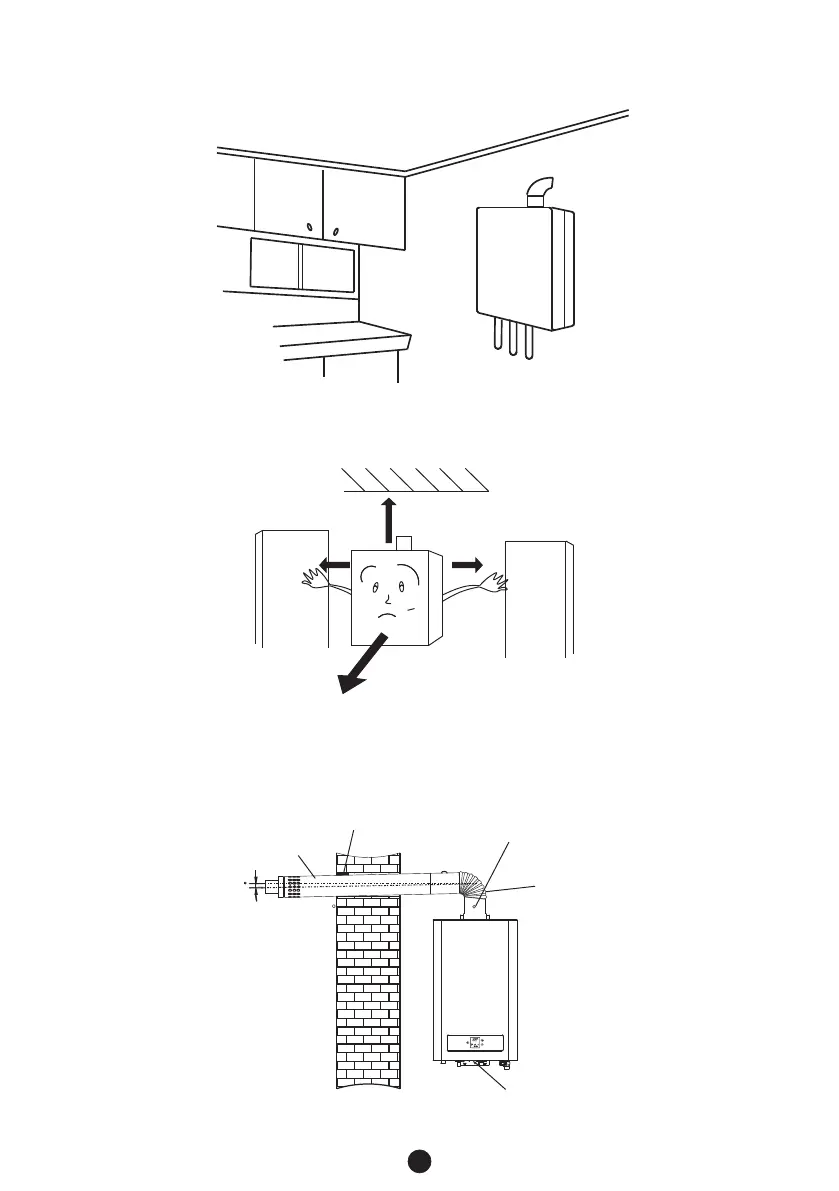

Installation of the unit:
Mount the unit upright without inclination according to the dimension show in the following illustration.
●
Installation of compulsory gas supply and exhaust pipe of the unit:
●
More than 600mm
More than 300mm
More than 150mm More than 150mm
a. Installation mode of topside exhaust.
Self-tapping screw
Elbow
Self-tapping screw ST4.2×6.5(three)
Packing seal
Supply and exhaust pipe
Incline downward by 3°
●
Type of installation (C12)
