11

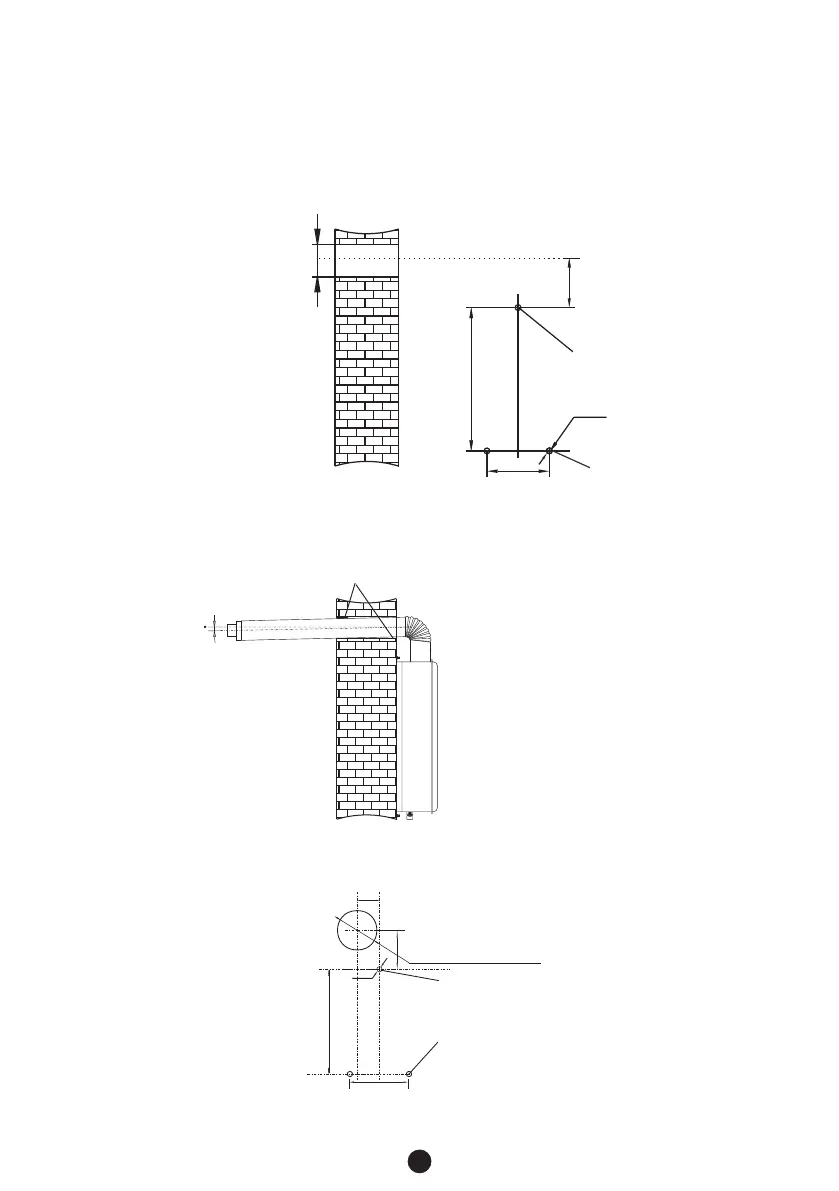

As show in the figure below, tap in expansion screws for fixation, hang the unit vertically and screw it
down with nuts, insert plastic plugs below it and screw down self-tapping screws.
As show in the figure below, tap in expansion screws for fixation, hang the unit vertically and screw it
down with nuts, insert plastic plugs below it and screw down self-tapping screws.
b. Installation mode of top rear exhaust.
2 mounting holes for self-tapping
screw plastic plug
1 mounting holes for
expansion screws
Incline downward by 3°
Packing seal
Considering the mounting inclination of 3°,
this dimension will be determined on the unit’s
mounting position relative to the sidewall.
90
3-Ф8
Ф 110 ~ Ф 120
595.3
140
3-Ф8
Ф 110 ~ Ф 120 round hole
Wall-through hole
1 mounting hole for
expansion screws
140
48
90
595.3
2 mounting holes for
self-tapping screw
plastic plug
