1) Attach the mounting template
located next to the mounting
equipment inside the product box
on the surface where the product
will be mounted.
2) Drill Ø4 mm drilled holes at the
points marked A, B, C, D on the
Mounting Template.
3) Drill the chimney outlet hole
specified in the mounting
template in the given size.
4) The product is mounted to the
cabinet from the A, B, C, D points by
using the 4,8x50 screws supplied
with the device. When the slide set
moves, the front panel should not
rub against the cabinet door.
(Figure 4)

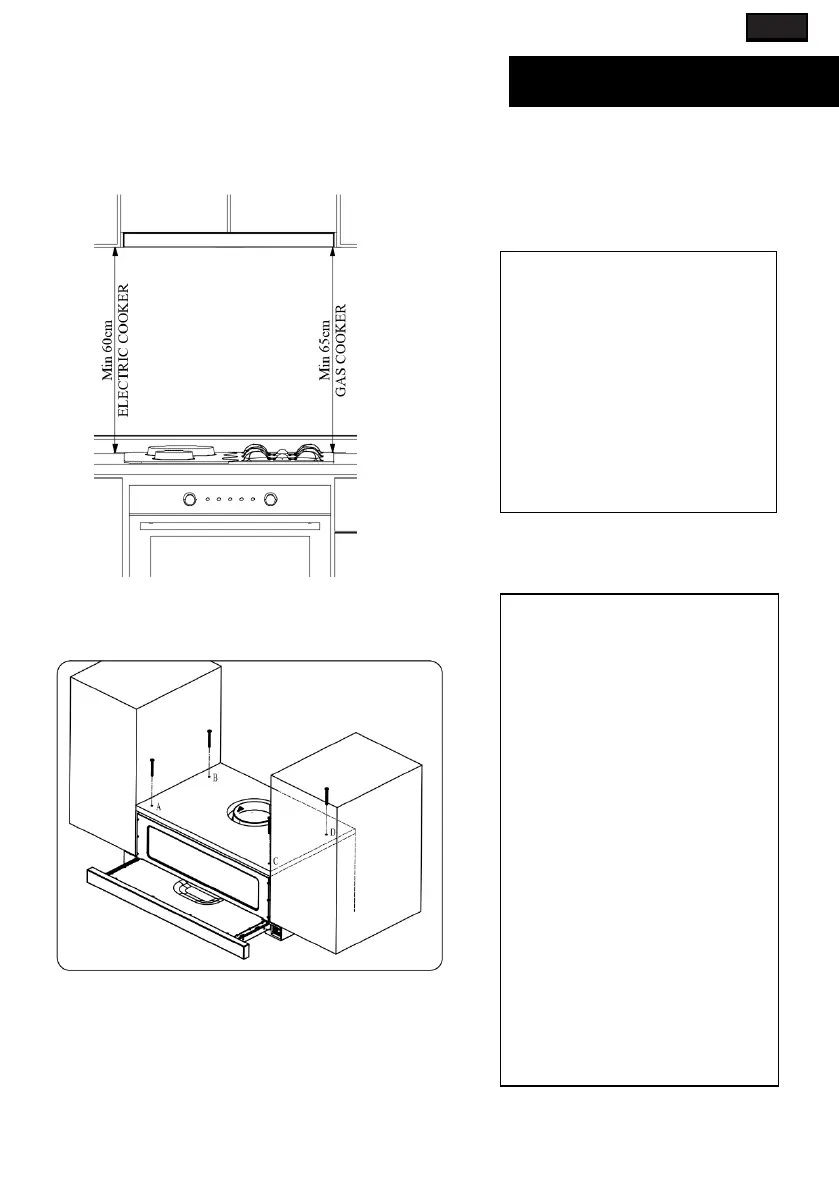

Position of the Product:
When installation of the
product is completed, there
should be a clearance of 60cm
between the product and
electric ranges and 65 cm
between the product and
ranges using gas or other fuels.
(Figure 3)
