ASROCK B150M Pro4/Hyper User Manual

3
English
B150M Pro4/Hyper

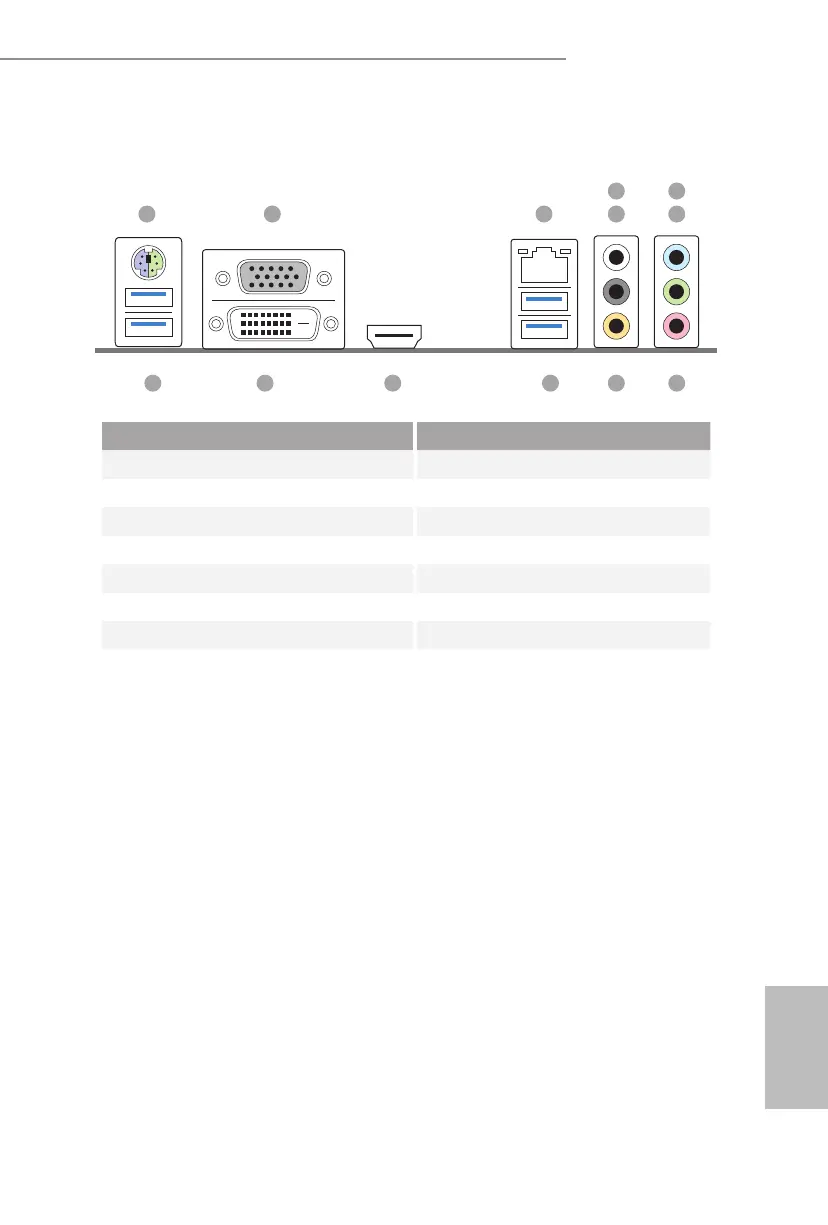

I/O Panel
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 8 Microphone (Pink)
2 D-Sub Port 9 Central / Bass (Orange)
3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_34)
4 Side Speaker (Gray) 11 HDMI Port
5 Rear Speaker (Black) 12 DVI-D Port
6 Line In (Light Blue) 13 USB 3.0 Ports (USB3_12)
7 Front Speaker (Lime)**
1
13 1011 9 812
3 5
4
7
6
2

ASROCK B150M Pro4/Hyper Specifications

General

Form Factor	Micro ATX
Chipset	Intel B150
Socket	LGA 1151
Memory Slots	4 x DIMM
Max Memory	64GB
Memory Support	DDR4 2133 MHz
RAID Support	RAID 0, 1, 5, 10
Storage Interface	6 x SATA3
USB Ports	6 x USB 3.0 (2 Front, 4 Rear) 6 x USB 2.0 (4 Front, 2 Rear)
Audio	Realtek ALC892 Audio Codec
Video Outputs	1 x DVI-D, 1 x HDMI
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
LAN	Gigabit LAN 10/100/1000 Mb/s
