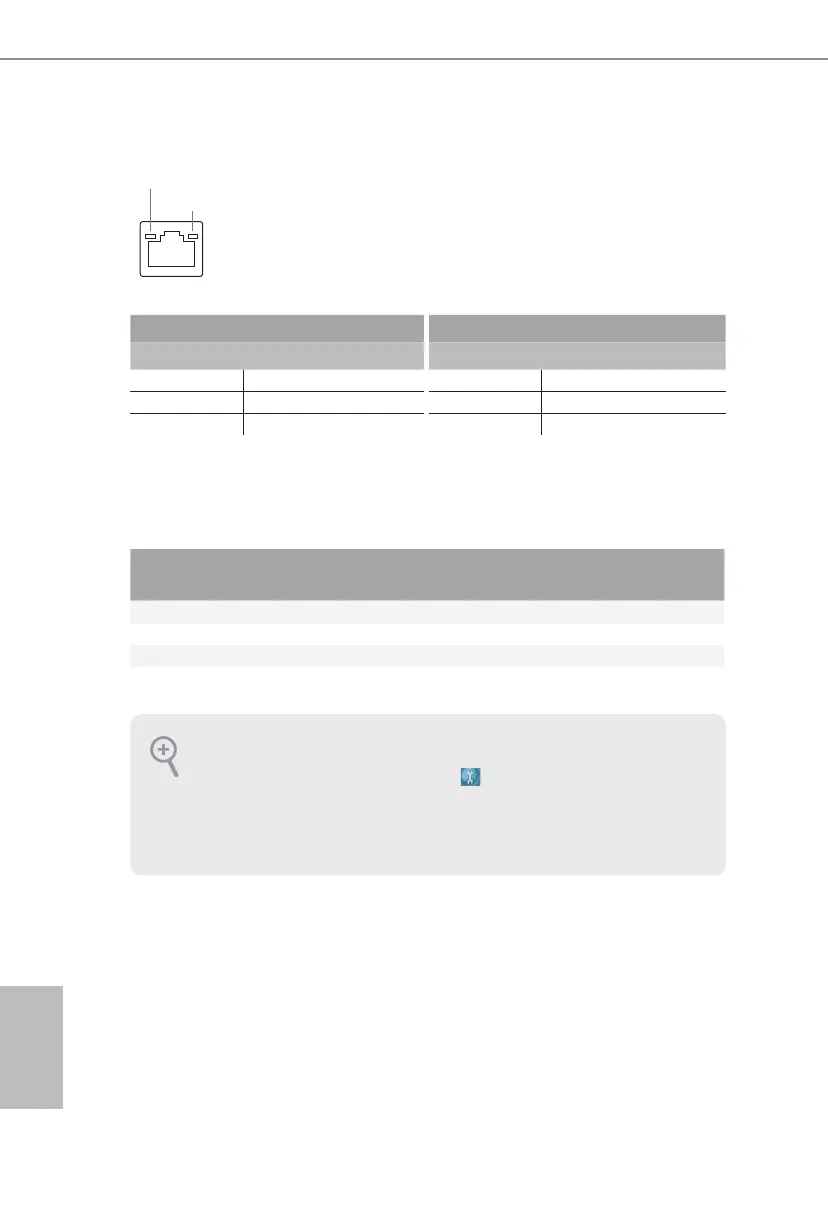

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 7)
Rear Speaker
(No. 5)
Central / Bass
(No. 9)
Line In
(No. 6)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. Aer restarting your computer, you will nd the “Mixer” tool
on your system. Please select “Mixer ToolBox” , click “Enable playback multi-
streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are
allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/
Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front
panel audio.
ACT/LINK LED
SPEED LED
LAN Port
•
•
•
•
•
•

ASROCK B150M Pro4/Hyper Specifications

General

Form Factor	Micro ATX
Chipset	Intel B150
Socket	LGA 1151
Memory Slots	4 x DIMM
Max Memory	64GB
Memory Support	DDR4 2133 MHz
RAID Support	RAID 0, 1, 5, 10
Storage Interface	6 x SATA3
USB Ports	6 x USB 3.0 (2 Front, 4 Rear) 6 x USB 2.0 (4 Front, 2 Rear)
Audio	Realtek ALC892 Audio Codec
Video Outputs	1 x DVI-D, 1 x HDMI
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
LAN	Gigabit LAN 10/100/1000 Mb/s
