ASROCK B560M-ITX/ac User Manual

139
B560M-ITX/ac
简体中文

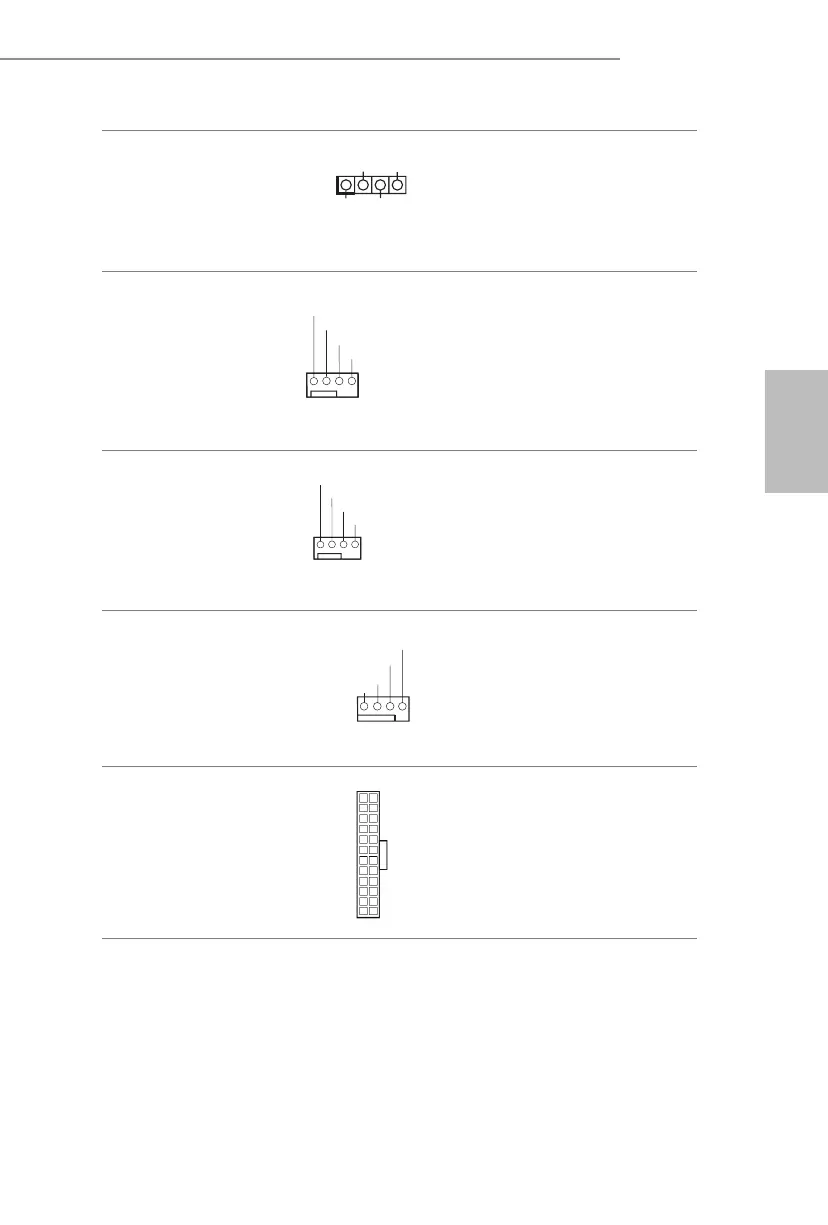

机箱扬声器接头
(4 针 SPEAKER1)
（见第 1 页， 第 16 个）
请将机箱扬声器连接到此接
头。
机箱 / 水泵风扇接口
(4 针 CHA_FAN1/WP)
（见第 1 页， 第 3 个）
此主板提供一个 4 针水冷 机
箱 风扇接口。 如果您打算连
接 3 针 机箱 水冷风扇，请将
它连接到针脚 1-3。
机箱风扇接口
(4 针 CHA_FAN2)
（见第 1 页， 第 17 个）
请将风扇线连接到风扇接口
并使黑线匹配接地针脚。
CPU 风扇接口
(4 针 CPU_FAN1)
（见第 1 页， 第 2 个）
此主板提供 4 针 CPU 风扇
（静音风扇）接口。 如果您
打算连接 3 针 CPU 风扇，请
将它连接到针脚 1-3。
ATX 电源接口
(24 针 ATXPWR1)
（见第 1 页，第 6 个）
此主板提供 24 针 ATX 电源
接口。
1 2 3 4
GND
CHA_FAN_SPEED
F AN_SPEED_CONTROL
FAN_VOLTAGE
1
+5V
DUMMY
DUMMY
SPEAKER
4 3 2 1
GN D
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
12
1
24
13
4 3 2 1
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL

ASROCK B560M-ITX/ac Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	4400, 4600 MHz
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel® I219-V
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel B560
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
BIOS type	UEFI AMI
ACPI version	6.0
System Management BIOS (SMBIOS) version	2.7
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
