ASROCK CML-HDV/M.2 TPM R2.0 User Manual

English
8

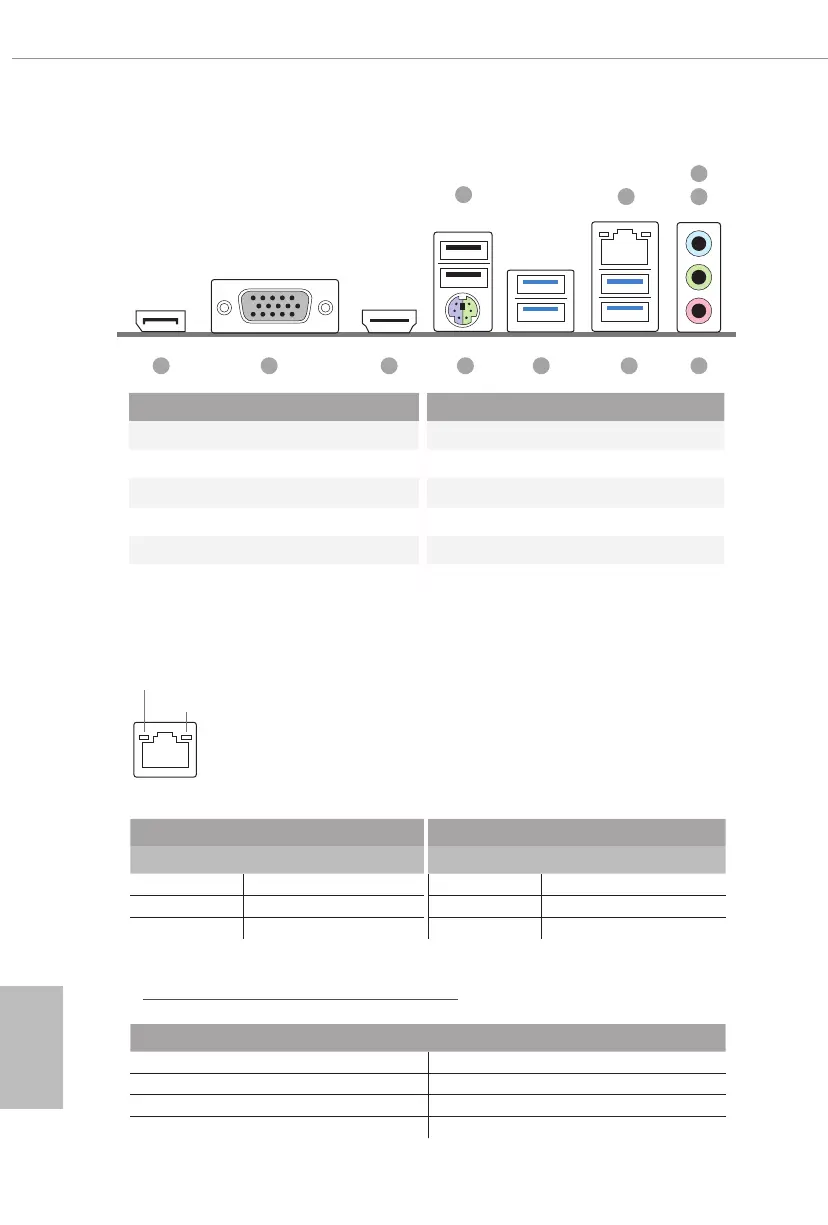

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB_12) 7 USB 3.2 Gen1 Ports (USB32_12)
2 LAN RJ-45 Port* 8 PS/2 Mouse/Keyboard Port
3 Line In (Light Blue)** 9 HDMI Port
4 Front Speaker (Lime)** 10 D-Sub Port
5 Microphone (Pink)** 11 DisplayPort
6 USB 3.2 Gen1 Ports (USB32_34)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
11 568
10
4
3
1
2
79

ASROCK CML-HDV/M.2 TPM R2.0 Specifications

General

Form Factor	Micro ATX
Socket	LGA 1200
Chipset	Intel H470
Maximum Memory	64 GB
Memory Type	DDR4
USB Ports (Rear)	4 x USB 3.2 Gen 1, 2 x USB 2.0
USB Ports (Front)	2 x USB 3.2 Gen 1, 2 x USB 2.0
Audio	Realtek ALC887
CPU Support	10th Gen Intel Core processors
Memory Slots	2
Memory Speed	2933MHz
Expansion Slots	1 x PCIe 3.0 x16
Storage Interfaces	1 x M.2
Audio Channels	7.1 CH
LAN	Realtek RTL8111H
TPM	Yes
Video Outputs	1 x HDMI
