English
68

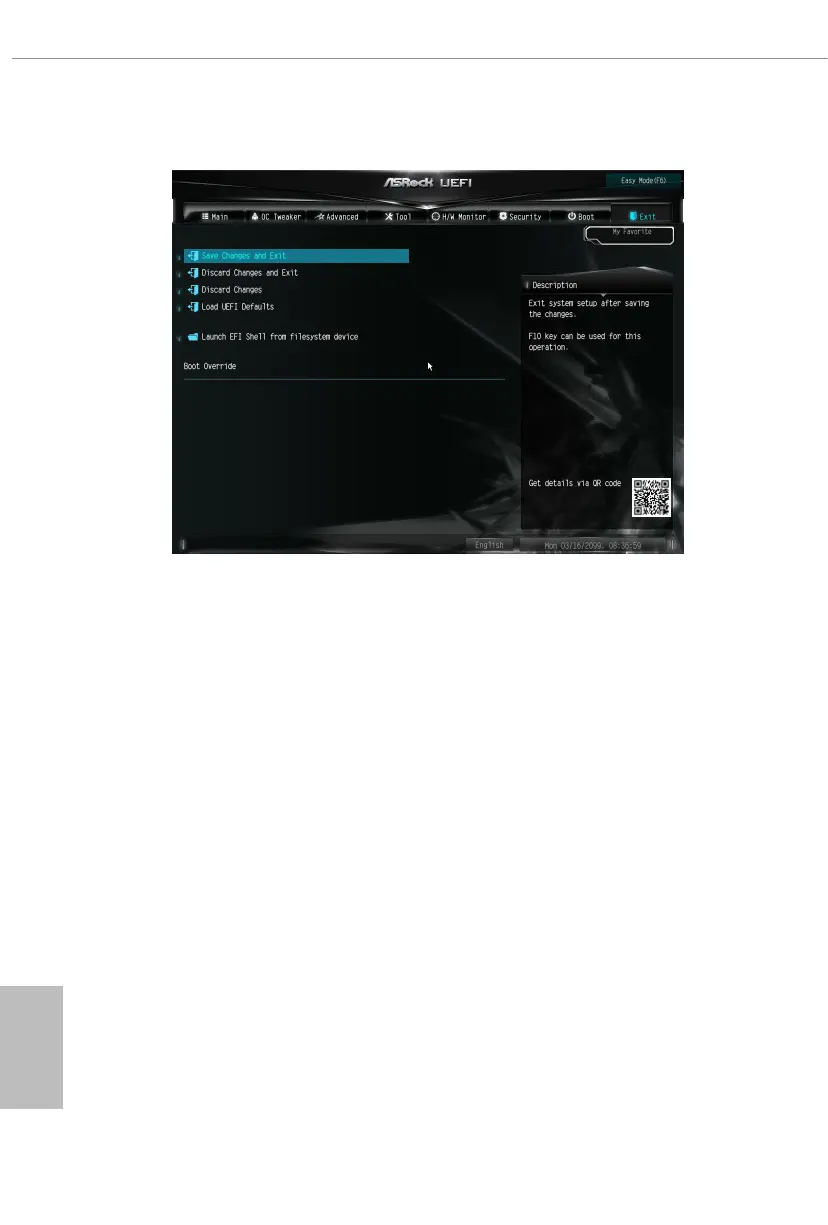

4.11 Exit Screen
Save Changes and Exit
When you select this option the following message, “Save conguration changes
and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP
UTILITY.
Discard Changes and Exit
When you select this option the following message, “Discard changes and exit
setup?” will pop out. Select [OK] to exit the UEFI SETUP UTILITY without saving
any changes.
Discard Changes
When you select this option the following message, “Discard changes?” will pop
out. Select [OK] to discard all changes.
Load UEFI Defaults
Load UEFI default values for all options. e F9 key can be used for this operation.
Launch EFI Shell from lesystem device
Copy shellx64.e to the root directory to launch EFI Shell.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK CML-HDV/M.2 TPM R2.0 and is the answer not in the manual?

ASROCK CML-HDV/M.2 TPM R2.0 Specifications

General IconGeneral
Form FactorMicro ATX
SocketLGA 1200
ChipsetIntel H470
Maximum Memory64 GB
Memory TypeDDR4
USB Ports (Rear)4 x USB 3.2 Gen 1, 2 x USB 2.0
USB Ports (Front)2 x USB 3.2 Gen 1, 2 x USB 2.0
AudioRealtek ALC887
CPU Support10th Gen Intel Core processors
Memory Slots2
Memory Speed2933MHz
Expansion Slots1 x PCIe 3.0 x16
Storage Interfaces1 x M.2
Audio Channels7.1 CH
LANRealtek RTL8111H
TPMYes
Video Outputs1 x HDMI
