ASROCK CML-HDV/M.2 TPM R2.0 User Manual

English
24
2.8 M.2 WiFi/BT Module Installation Guide (M2_2)
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key
E) supports type 2230 WiFi/BT PCIe WiFi module.
* e M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT PCIe WiFi module

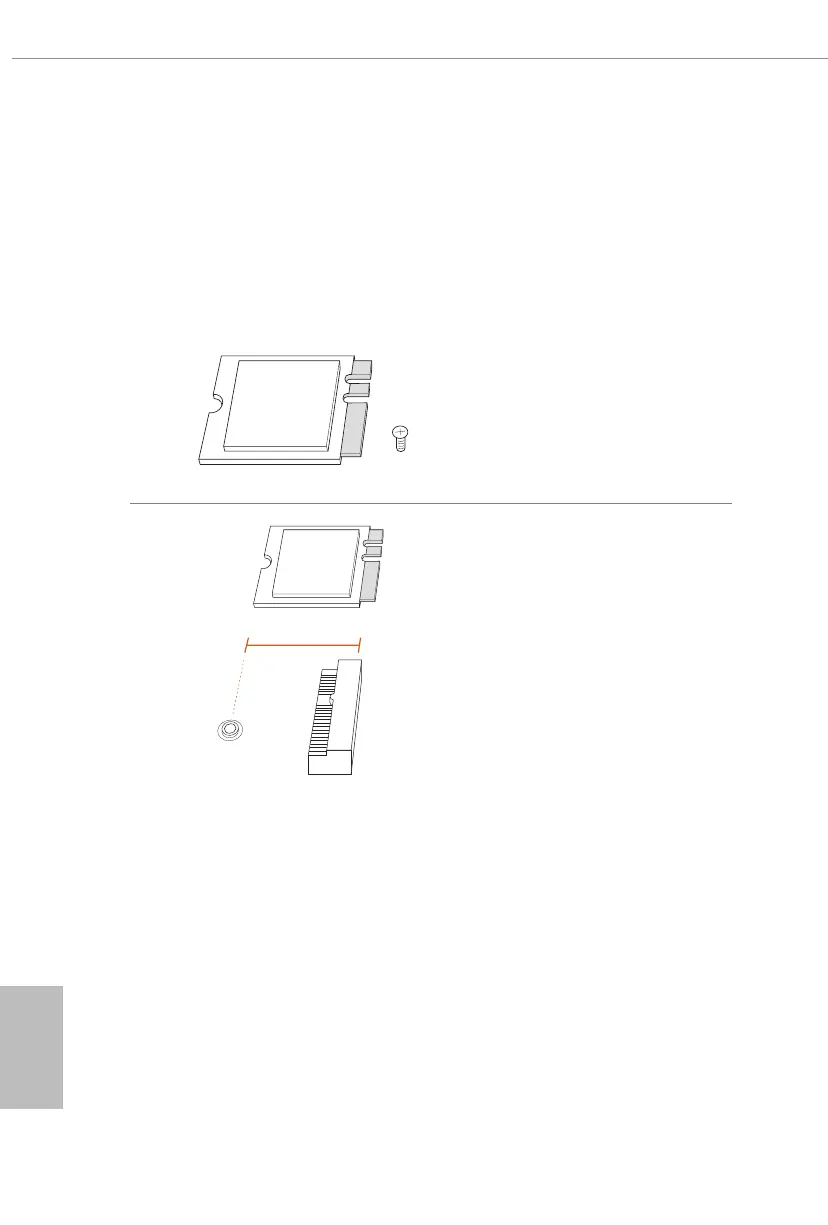

Step 1
Prepare a type 2230 WiFi/BT PCIe
WiFi module and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.
