English
23
CML-HDV/M.2 TPM R2.0

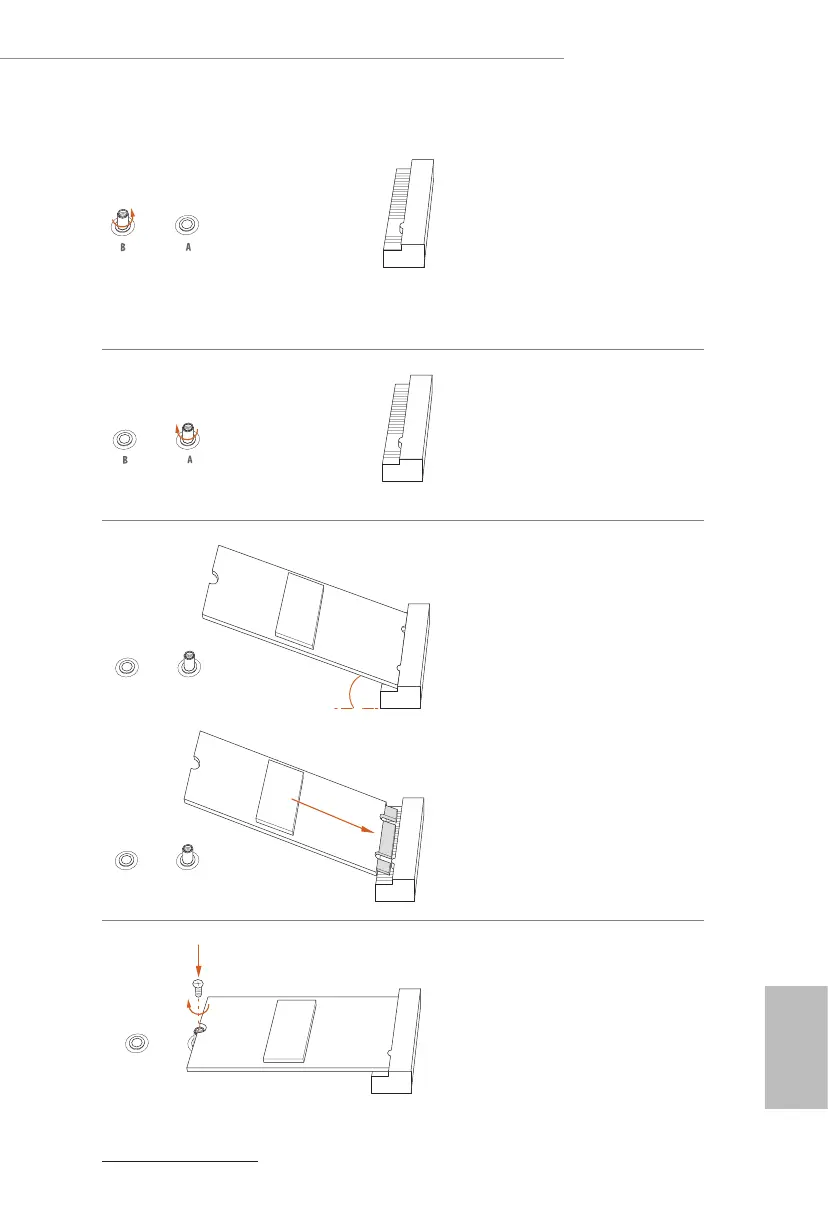

Step 3
Move the stando based on the
module type and length.
e stando is placed at the nut
location B by default. Skip Step 3 and
4 and go straight to Step 5 if you are
going to use the default nut.
Step 4
Peel o the yellow protective lm on
the nut to be used. Hand tighten the
stando into the desired nut location
on the motherboard.
Step 5
Align and gently insert the M.2 SSD
module into the M.2 slot. Please be
aware that the M.2 SSD module only
ts in one orientation.
Step 6
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw
as this might damage the module.
NUT1NUT2B
AB
20
o
AB
For the latest updates of M.2 SSD module support list, please visit our website for details:
http://www.asrock.com

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK CML-HDV/M.2 TPM R2.0 and is the answer not in the manual?

ASROCK CML-HDV/M.2 TPM R2.0 Specifications

General IconGeneral
Form FactorMicro ATX
SocketLGA 1200
ChipsetIntel H470
Maximum Memory64 GB
Memory TypeDDR4
USB Ports (Rear)4 x USB 3.2 Gen 1, 2 x USB 2.0
USB Ports (Front)2 x USB 3.2 Gen 1, 2 x USB 2.0
AudioRealtek ALC887
CPU Support10th Gen Intel Core processors
Memory Slots2
Memory Speed2933MHz
Expansion Slots1 x PCIe 3.0 x16
Storage Interfaces1 x M.2
Audio Channels7.1 CH
LANRealtek RTL8111H
TPMYes
Video Outputs1 x HDMI
