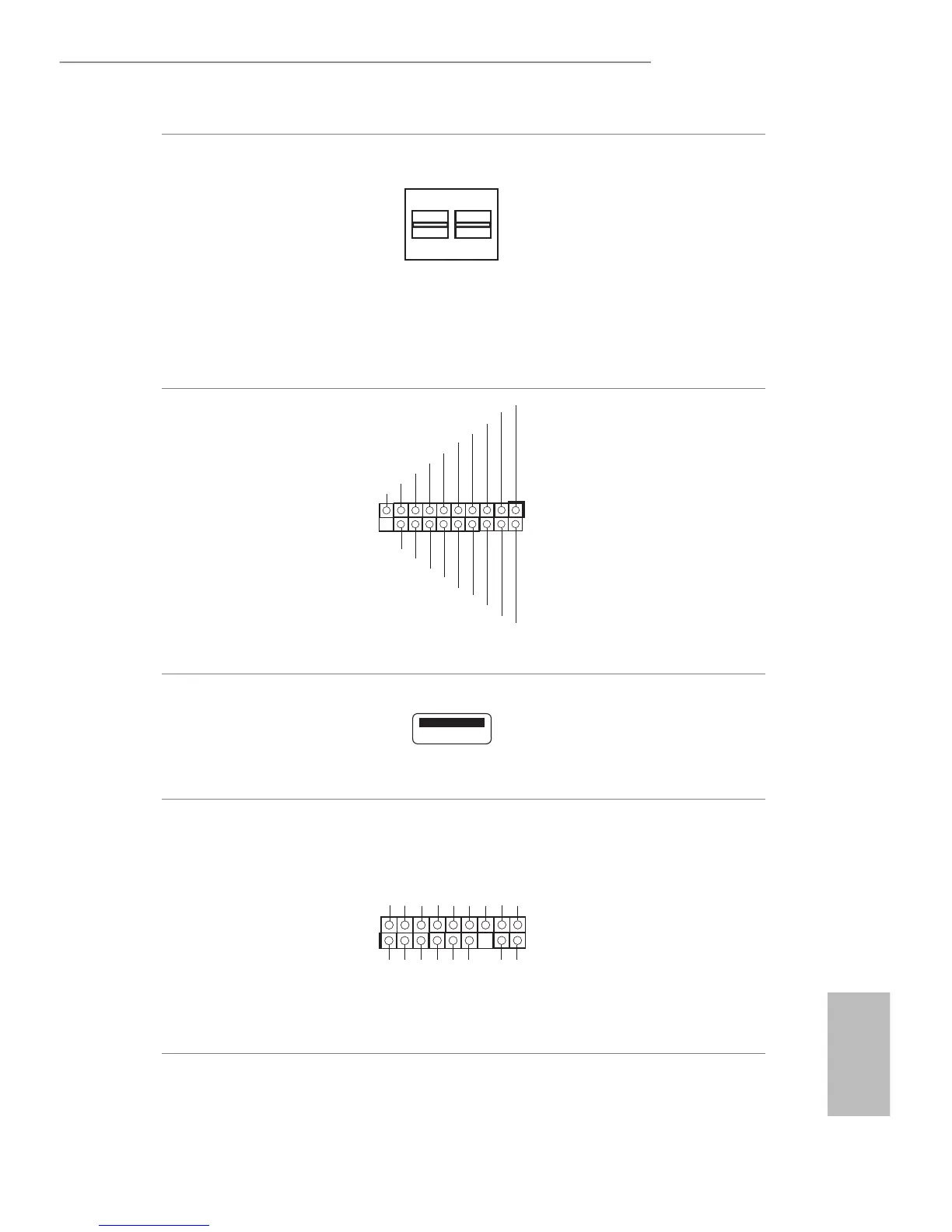

Mini SAS HD
Connectors*
(LSI_SAS_0_7)
(See p.10, 13 or 16)
*For D1540D4U-2T8R,
D1540D4U-2O8R, and
D1540D4U-2T2O8R only
LSI_SAS_0_7
is Mini SAS HD connector
supports SAS/SATA data
cables for internal storage
devices. e current SAS3/
SATA3 interface allows up to
12.0 Gb/s data transfer rate.
For connecting SAS HDDs,
please contact SAS data cable
dealers.
USB 3.0 Header
(19-pin USB3_3_4)
(See p.7, 10, 13 or 16)
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
Besides two USB 3.0 ports
on the I/O panel, there is one
header on this motherboard.
This USB 3.0 header can
support two ports.
USB 3.0 Connector
(USB3_5)
(See p.7, 10, 13 or 16)
TPM Header
(17-pin TPM1)
(See p.7, 10, 13 or 16)
1
GND SMB_DATA_MAIN
LAD2
LAD1
GND
S_PWRDWN#
SERIRQ#
GND
PCICLK
PCIRST#
LAD3
+3V
LAD0
+3VSB
GND
FRAME
SMB_CLK_MAIN
is connector supports Trust-
ed Platform Module (TPM)
system, which can securely
store keys, digital certicates,
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
