ASROCK Fatal1ty B360M Performance User Manual

7
English
Fatal1ty B360M Performance Series

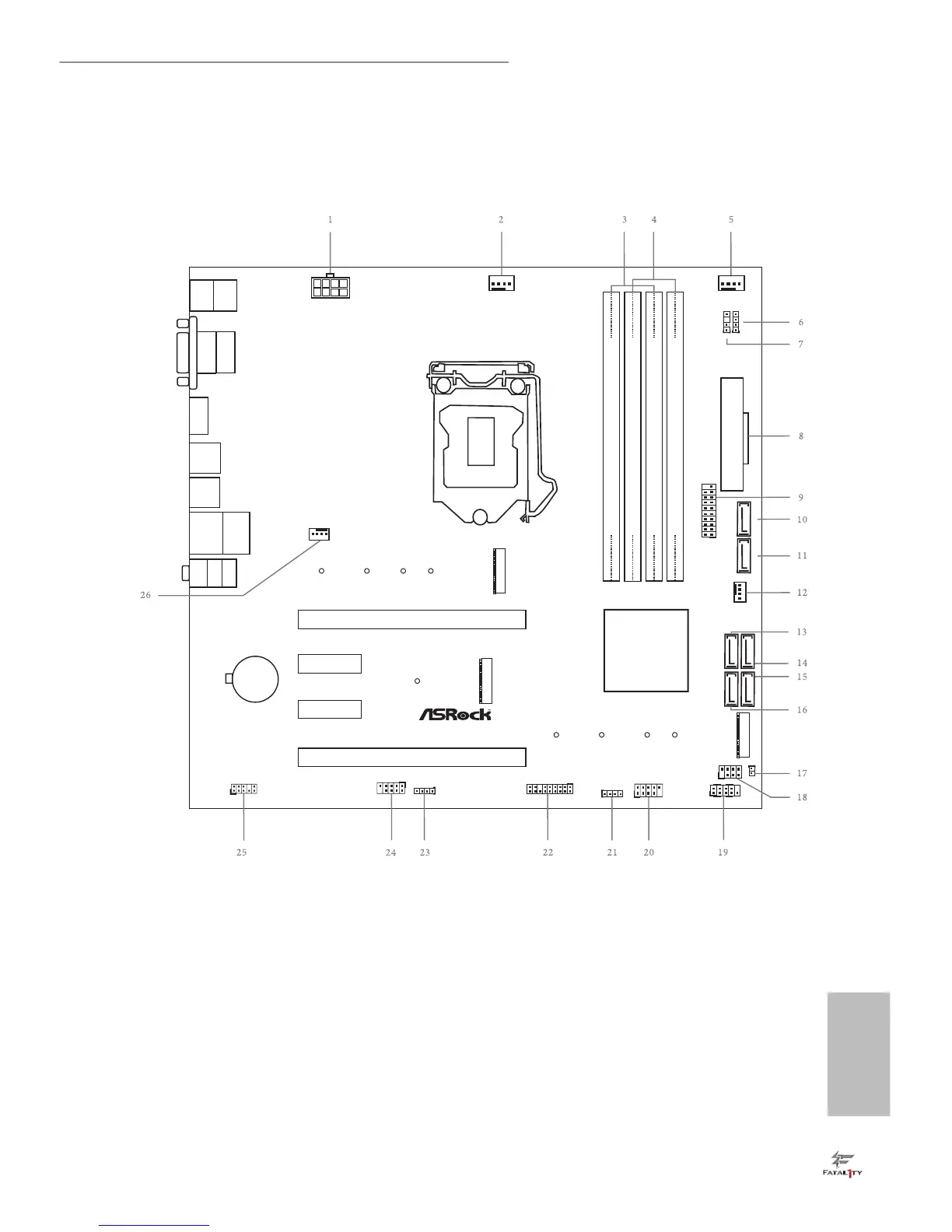

1.3 Motherboard Layout
Intel
B360
ATXPWR1
HDL ED RES ET
PLE D P WRB TN
PANE L1
1
COM 1
1
B360M Performance
RoHS
PCIE1
TPMS1
1
1
SPK _CI 1
1
PCIE2
CMOS
Battery
DDR4_A2 (64 bit, 288- pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288- pin module)
DDR4_B1 (64 bit, 288-pin module)
ATX1 2V 1
SATA3 _2
SATA3 _3
USB3_ 5_ 6
SATA3 _4
SATA3 _5
CLR MOS 1
1
1
HD_ AUD IO1
M2_1
Top:
RJ-45
HDMI1
Top:
LINE I N
Center:
FRONT
Bottom:
MIC IN
USB 3. 1 Ge n2
T: U SB 3_ TA_1
B: U SB 3_ TC _ 1
PCIE4
USB 3.1 Gen2
SATA3 _1
Ul t ra M .2
PC I e Ge n3 x 4
PS2
Keyboard
PS2
Mouse
DVI1
VGA1
USB 3.1 Gen1
T: USB3_3
B: USB3_4
USB 3_4
1
M2_2
SATA3 _0
PCIE3
USB 2.0
T: USB1
B: US B2
USB 5
1
M2_3
FATAL TY1
RGB _LE D1
1
RGB _LE D2
1
A_R GB_ LED 1
1
CPU _FA N1
CPU _FA N2/ WP
CHA_FA N2 /W P
CHA_FA N1 /W P

ASROCK Fatal1ty B360M Performance Specifications

General

Form Factor	Micro ATX
Chipset	Intel B360
CPU Socket	LGA 1151
Maximum Memory	64 GB
Audio	Realtek ALC892 Audio Codec
Memory Slots	4 x DIMM
Memory Speed	DDR4 2666/2400/2133 MHz
Storage Interface	6 x SATA3
USB Ports	6 x USB 3.1 Gen1, 6 x USB 2.0
LAN	Intel Gigabit LAN
Video Outputs	HDMI, DisplayPort
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
