2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1 and

M2_2)

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2

Socket (M2_1) supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to

Gen3 x4 (32 Gb/s). e M.2 Socket (M2_2) supports M Key type 2230/2242/2260/2280 M.2

SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x1 (8 Gb/s).

* Please be noted that if M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be

disabled.

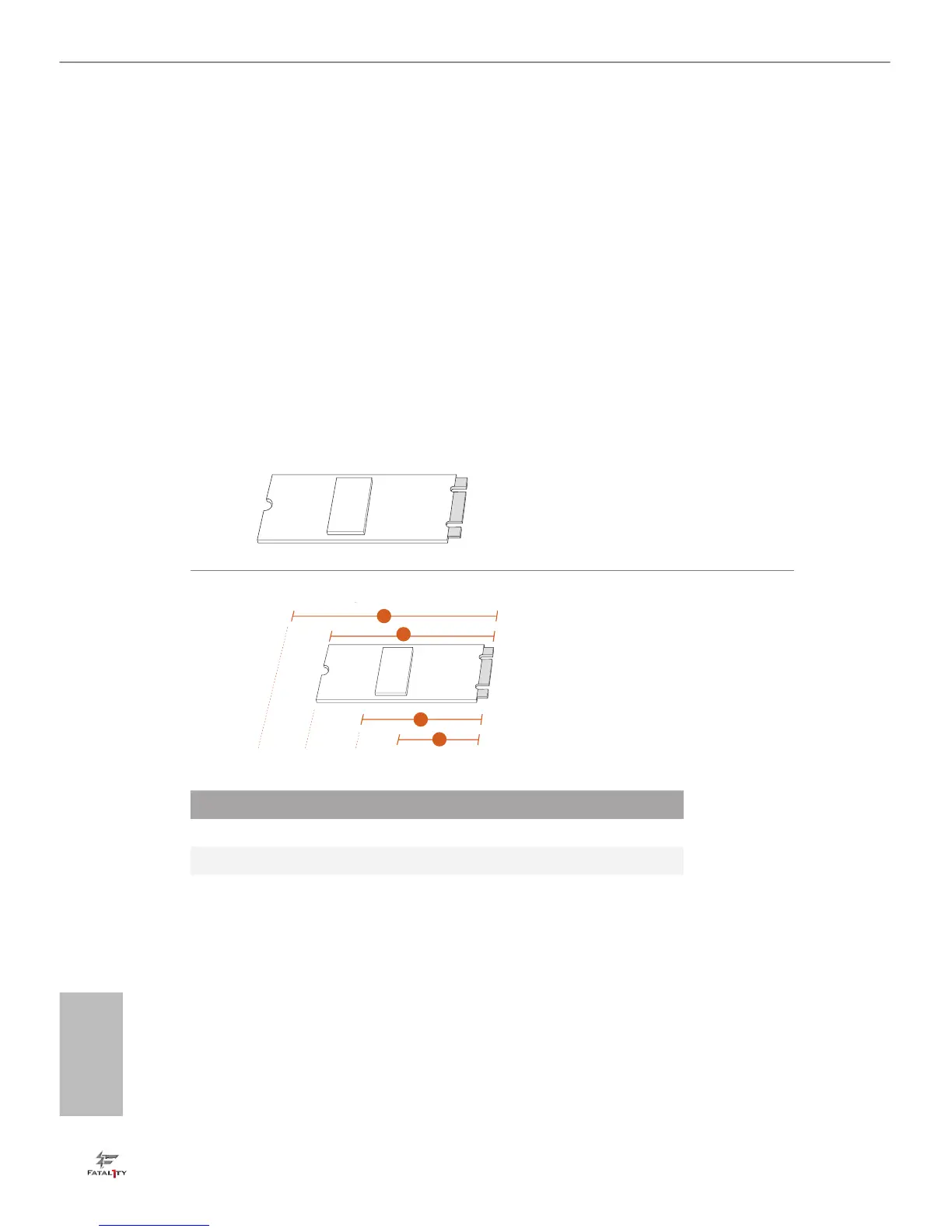

Installing the M.2_SSD (NGFF) Module

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

No. 1 2 3 4

Nut Location A B C D

PCB Length 3cm 4.2cm 6cm 8cm

Module Type Type2230 Type 2242 Type2260 Type 2280

BCDE
